제품 세부 정보
원래 장소: 중국
브랜드 이름: E-Link
인증: ISO9001，ROHS，FCC，CE
모델 번호: LNK-IMC008
문서: E-link LNK-IMC008 Industria....0.pdf
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
배달 시간: 3~5 일
지불 조건: T/T, 웨스턴 유니온, 머니그램
공급 능력: 4000 PC / 달
차원 (WxDxH): |
150 x 115 x 50mm |
무게: |
0.6 킬로그램 |
작동 온도: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
케이스: |
알루미늄 케이스 |
설치 옵션: |
DIN-레일 /는 벽에 장착합니다 |
입력 전원: |
잉여 전력 (6 핀 단자 블록)인 12~58VDC |
MTBF: |
> 200,000 하스 |
차원 (WxDxH): |
150 x 115 x 50mm |
무게: |
0.6 킬로그램 |
작동 온도: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
케이스: |
알루미늄 케이스 |
설치 옵션: |
DIN-레일 /는 벽에 장착합니다 |
입력 전원: |
잉여 전력 (6 핀 단자 블록)인 12~58VDC |
MTBF: |
> 200,000 하스 |
Features
► 8 10/100Base-TX ports
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Redundant 12～58VDC Power Inputs
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

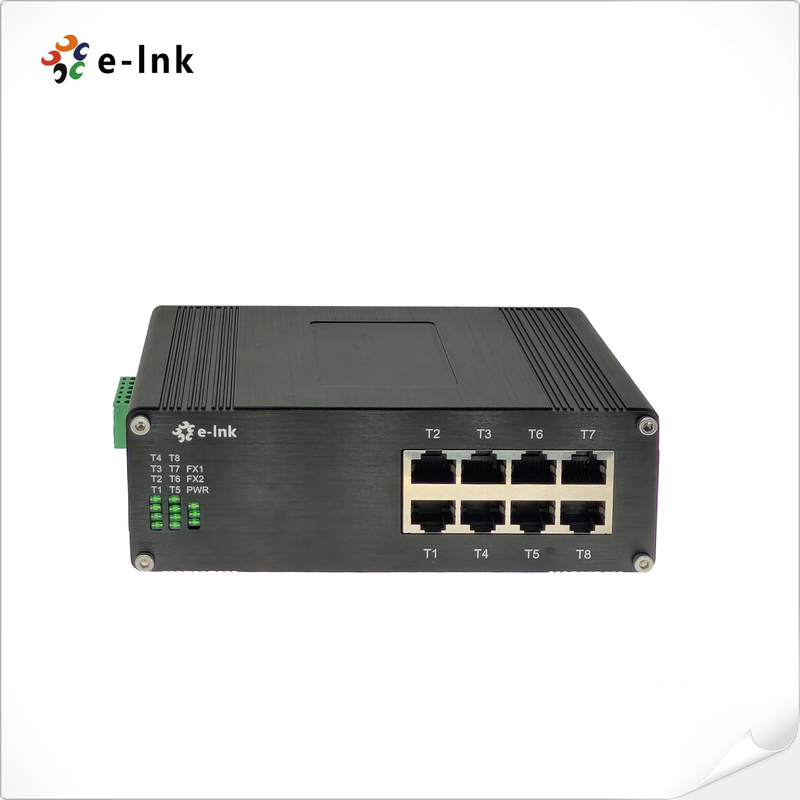

LNK-IMC008 is an 8 ports 10/100Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Application
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3x Flow Control |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
Cabling |
10Base-T: Cat5 or above |
|
100Base-TX: Cat5 or above |
|
|
Maximum Distance |
Cat5 UTP up to 100m |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~58VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC008 |
Industrial 8-port 10/100BASE-T Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
