제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: CE
Model Number: LNK-DAN-D5
문서: E-link LNK-DAN-D5 Dante 2Ch....0.pdf
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: 협상 가능
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Weight(1U): |
145g |
Case size: |
114 x 30 x 28 mm |
Power: |
DC 5V/1A |
Cable length: |
802.3af PoE |
XLR Port: |
2 x XLR port, connect input device |
Weight(1U): |
145g |
Case size: |
114 x 30 x 28 mm |
Power: |
DC 5V/1A |
Cable length: |
802.3af PoE |
XLR Port: |
2 x XLR port, connect input device |
Product Advantages
► Plug and play.
► 24-bit audio support
► 2x0 Audio Channels
► Support power via PoE Injector (IEEE802.3af)
Technical Indexes
|
Port |
|
|
RJ45 Port |
Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device. |
|
XLR Port |
2 x XLR port, connect input device |
|
Audio |
|
|
Max signal level |
+24 dBu |
|
Frequency Response |
20Hz to 20kHz(-/+0.5dB) |
|
Impedance |
20k Ohm balanced, 10k Ohm unbalanced |
|
Dynamic Range |
>100 dB |
|
Signal to Noise Ratio |
>100 dB |
|
THD |
<0.01% @+4dBu |
|
Dante |
|
|
Sample Rate |
44.1kHz, 48kHz, 96kHz |
|
Bit Depth |
24 |
|
Dante Device latency |
1,2 or 5ms (configurable using Dante Controller) |
|
Type |
Analog 2x0 |
|
General |
|
|
Operation Temperature |
-5 to +55℃ (+23° to +131°F) |
|
Storage Temperature |
-25 to +70℃ (-13° to +158°F) |
|
Power |
802.3af PoE |
|
Power Consumption |
3.15W(Max) |
|
Dimension (W*H*D) |
114 x 30 x 28 mm |
|
Cable length |
30cm |
|
Net Weight |
145g |
Overview

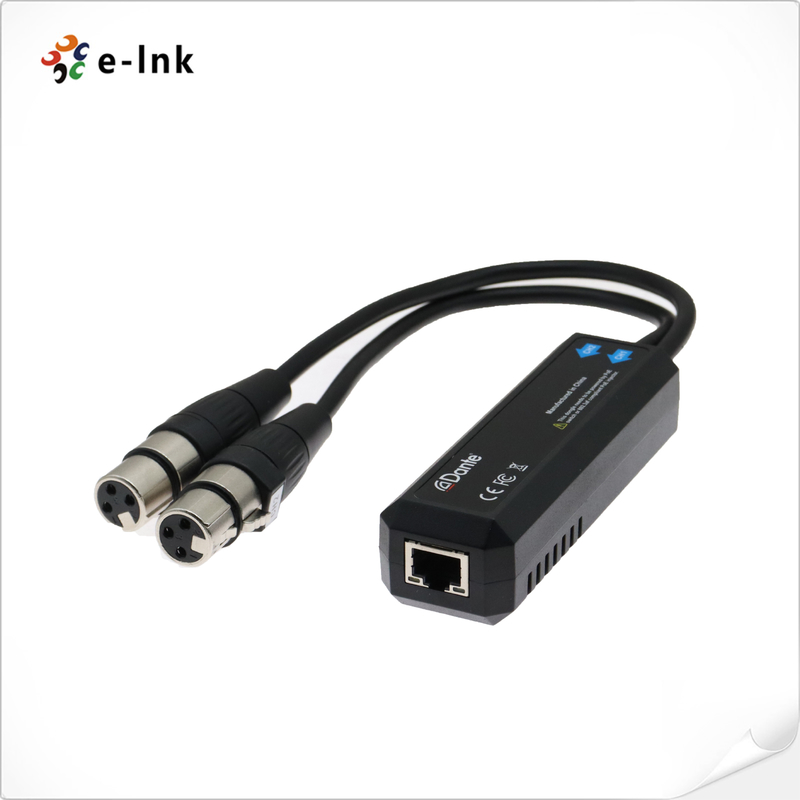

The LNK-DAN-D5 2Ch Analog Input Dongle Converter can connects to your Dante network and supports Analog 2X0 channels audio, allowing receive analog audio signal, convert the analog signal to digital signal and transmit through Dante network.
Ordering Information
|
Model |
Description |
|
LNK-DAN-D5 |
Dante 2Ch Analog Input Dongle Converter |
