PCIe x4 단일 포트 RJ45 10G 이더넷 네트워크 어댑터

제품 세부 정보

원래 장소: 중국

브랜드 이름: E-link

인증: ROHS,FCC,CE

모델 번호: LNK-NIC-10GE

문서: E-link LNK-NIC-10GE 10G Eth....0.doc

지불 및 배송 조건

최소 주문 수량: 1 PC

가격: $29.9-389

포장 세부 사항: 통 패키징

배달 시간: 3-12 근무일

지불 조건: L/C,T/T,Western Union,, 페이팔

공급 능력: 1000 PC / 달

가장 좋은 가격 을 구하라
지금 연락하세요
사양
강조하다:

RJ45 10G 이더넷 네트워크 어댑터

,

단일 포트 10G 이더넷 네트워크 어댑터

,

PCIE X4 10G 이더넷 네트워크 어댑터

Bus Type:
PCIe v3.0 x4,compatible with x8, x16
Data rate per port:
10/100/1000M/2.5G/5G/10Gbps data rate
Operating Temperature:
0℃ to 55℃ (32℉ to 131℉)
Storage Temperature:
-40℃ to 70℃ (-40℉ to 158℉)
Dimensions (WxDxH):
125 x 125 x 20 mm
Weight:
90g
Bus Type:
PCIe v3.0 x4,compatible with x8, x16
Data rate per port:
10/100/1000M/2.5G/5G/10Gbps data rate
Operating Temperature:
0℃ to 55℃ (32℉ to 131℉)
Storage Temperature:
-40℃ to 70℃ (-40℉ to 158℉)
Dimensions (WxDxH):
125 x 125 x 20 mm
Weight:
90g
설명
PCIe x4 단일 포트 RJ45 10G 이더넷 네트워크 어댑터

PCIE x4 단일 포트 RJ45 10G 이더넷 네트워크 어댑터


장점

► PCIE x 4 하드웨어 인터페이스.

► 지원 시스템: Windows, Linux, Ubuntu 등

► Windows 7/8/8.1/10

► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

► Linux 안정 커널 버전 2.6.32/3.x/4.x 이상

► Linux CentOS/RHEL 6.5 / 7.x 이상

► Ubuntu 14.x/15.x/16.x 이상

► VMware ESX/ESXi 4.x/5.x/6.x 이상

► 10/100/1000M/2.5G/5G/10Gbps 데이터 속도

► 최대 16KB의 점보 프레임 지원.

► 광범위한 소프트웨어 지원: Windows 및 Linux 드라이버; UEFI 및 PXE 원격 부팅.

► MSI, MSI-X, LSO, RSS 및 IPv4/IPv6 체크섬 오프로드.

► 갈색 및 녹색 색상 옵션


개요

 는 xxx 칩 솔루션을 기반으로 하는 PCI Express x4 단일 포트 10 기가비트 이더넷 네트워크 어댑터입니다. xxx PCle x8 및 x16 채널과도 호환됩니다. PCle, MAC 및 PHY를 통합하여 클라이언트 시스템에 전력 및 공간 효율적인 연결을 제공하는 고성능, 5 속도 NIC 어댑터입니다. PCle x4 범용 인터페이스는 이 제품에 뛰어난 유연성을 제공합니다. 통합 PHY는 최대 100미터 거리에서 최대 10Gbps 속도로 Cat 6a를 통해 라우팅될 수 있습니다. 또한 기존 Cat 5e 또는 Cat 6 케이블을 통해 5Gbps 네트워크 연결을 지원합니다. LNK-

NIC-10GE  는 IEEE 802.3an 및 IEEE 802.3 bz를 준수하며 100m 연선 케이블을 통해 2.5GBASET, 5GBASE-T, 10GBASE-T, 1000BASE-T 및 100BASE-TX 전송을 가능하게 합니다. MSI,주문 정보 모델설명LNK-NIC-10GE PCI E x4 단일 포트 RJ45 10G 이더넷 네트워크


어

댑터

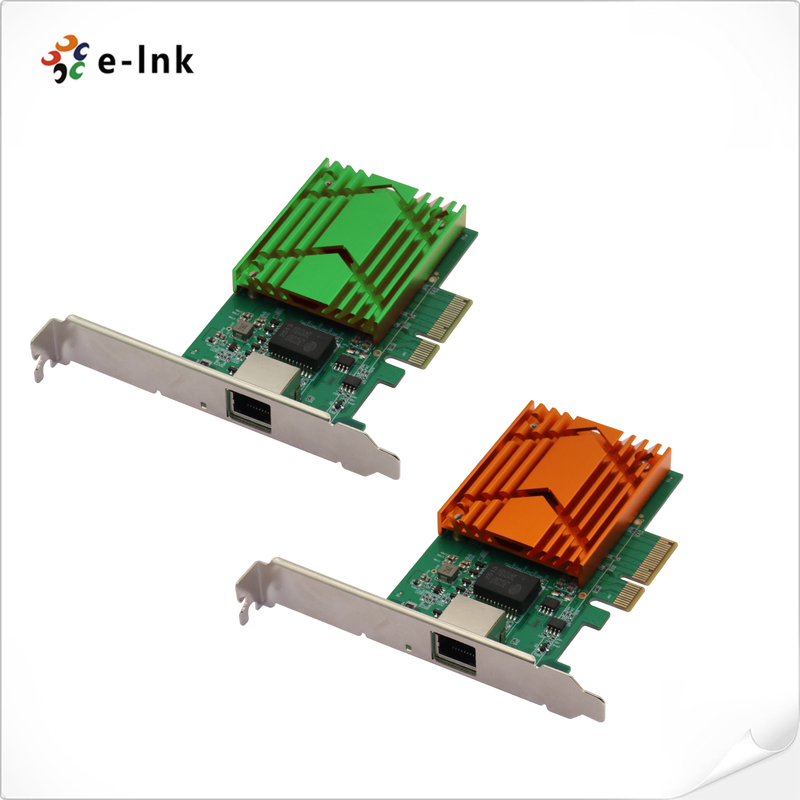

사진




PCIe x4 단일 포트 RJ45 10G 이더넷 네트워크 어댑터
