제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, FCC, RoHS
모델 번호: LNK-SP24WG
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: Negotiated
포장 세부 사항: 표준 수출 패키지
배달 시간: 0 일
지불 조건: 전신환, 페이팔
공급 능력: 1000 PC / 입
DC 출력: |
24V 1A |
힘: |
25W |
작업 온도: |
-20°~55°C |
저장 온도: |
-40 ° ° 85 ° C |
제품 크기: |
250mm*28mm*24mm |
무게: |
0.2KG |
DC 출력: |
24V 1A |
힘: |
25W |
작업 온도: |
-20°~55°C |
저장 온도: |
-40 ° ° 85 ° C |
제품 크기: |
250mm*28mm*24mm |
무게: |
0.2KG |
Advantage
· DC output 24V 1A
· 52V: MAX transmission 150M (With full copper low resistance network lines)
· Comply to IEEE802.3af/at
· Power Input:DC16～55V
· Plug＆Play
· Built-in high performance chip and high specification circuit board
· Stable:AKros AS1138, with lightning protection
· RJ45 full shield port
· Full bridge design, non polarity input
Overview

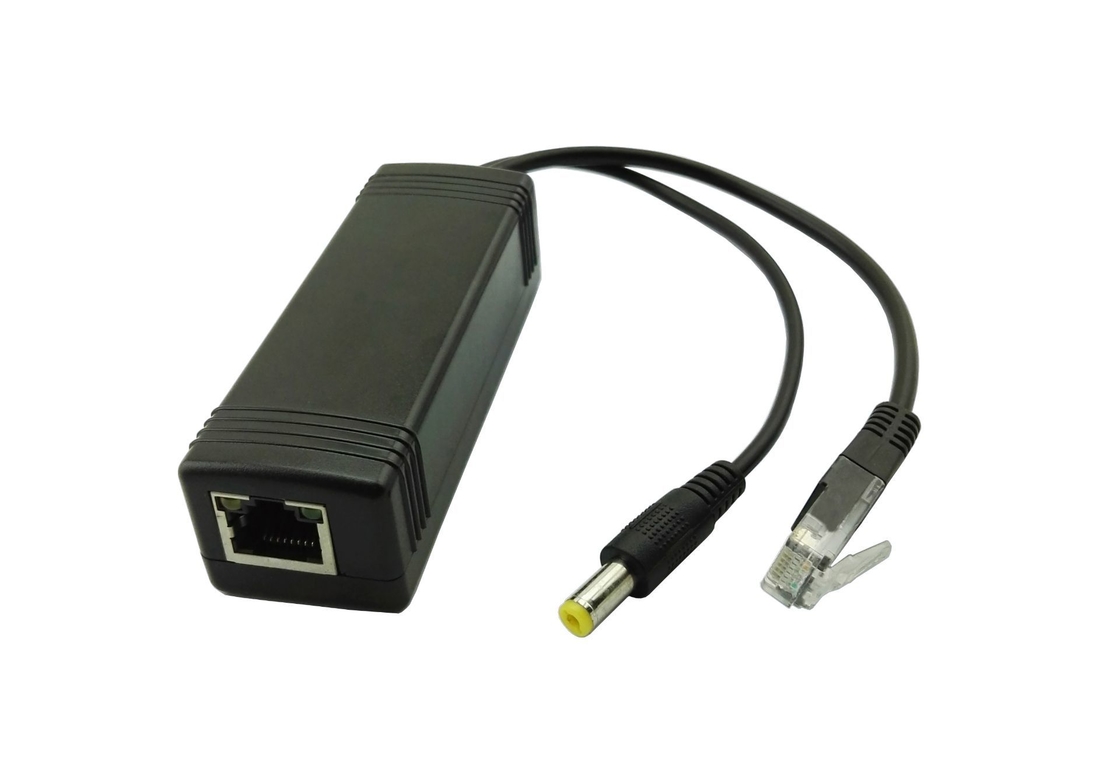

LNK-SP24WG PoE splitter, Develop used for Ethernet power supply application scenarios,
device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at”
POE power supply; DC output 24V 1A; The POE signal can be separated into network
signal and electric power.
Technical Indexes
|
Model |
LNK-SP24WG |
|
DC out |
24V 1A |
|
Power |
25W |
|
distance |
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) |
|
Port |
1 GE(10/100/1000M) POE input+1 Network+1 DC output |
|
POE |
IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI |
|
Network protocol |
IEEE 802.3i 10BASET； IEEE 802.3u 100BASETX； IEEE 802.3x Flow Control |
|
Environmental |
Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
|
Radiation |
CE mark,commercial,FCC Part 15 Class B,RoHS |
|
Product Size |
250mm*28mm*24mm |
|
Weight |
0.2kg |
Application
Ordering Information
|
Model |
Description |
|
LNK-SP24WG |
PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A |
