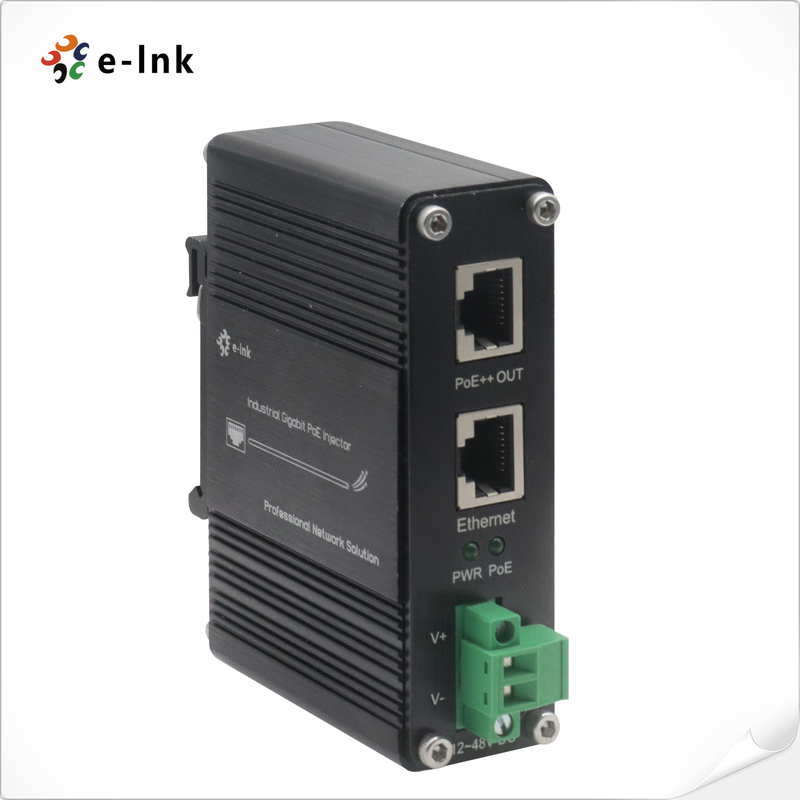

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

제품 세부 정보

원래 장소: 중국

브랜드 이름: E-link

인증: ROHS,FCC,CE

모델 번호: LNK-INJ301-100

지불 및 배송 조건

최소 주문 수량: 1 PC

가격: 협상 가능

포장 세부 사항: 인젝터 표준 내보내기 패키지

배달 시간: 3-12 근무일

지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔

공급 능력: 1000 PC / 달

가장 좋은 가격 을 구하라
지금 연락하세요
사양
강조하다:
키워드:
산업 인젝터
작동 온도:
80' C에 대한 -40' C (176' F에 대한 -40' F)
MTBF:
> 200,000 하스
무게:
0.25 킬로그램
차원 (WxDxH):
95 X 70 X 30 밀리미터
전력 소비:
100W 맥스
키워드:
산업 인젝터
작동 온도:
80' C에 대한 -40' C (176' F에 대한 -40' F)
MTBF:
> 200,000 하스
무게:
0.25 킬로그램
차원 (WxDxH):
95 X 70 X 30 밀리미터
전력 소비:
100W 맥스
설명
Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 100W PoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 100-watt PoE budget (48VDC), 100-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) Overview

The LNK-INJ301-100 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt PoE++ 100W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 100W PoE output.

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) Technical Indexes

Ethernet

Standards:

IEEE802.3 10 BASE-T Ethernet

IEEE802.3u 100 BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3 x Flow Control

Processing Type:

Forward



Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

Twisted-pair cable up to 100 meters (328ft)

10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A

100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A

1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC) ordering information

Model

Description

LNK-INJ301-100

Hardened Gigabit 1-port Ethernet Input + 1-port 100W PoE++ Output Injector with 12~48V DC wide range power input

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
