제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-WP-EPE102
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 산업 기가비트 POE Extender 표준 수출 패키지
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
키워드: |
산업용 기가비트 PoE 확장기 |
작동 온도: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
포 출력 전원: |
최대 65W |
작동 습도: |
0 ~ 95% (비 콘센트) |
차원 (WxDxH): |
195 x 75 x 46mm |
무게: |
0.6 킬로그램 |
키워드: |
산업용 기가비트 PoE 확장기 |
작동 온도: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
포 출력 전원: |
최대 65W |
작동 습도: |
0 ~ 95% (비 콘센트) |
차원 (WxDxH): |
195 x 75 x 46mm |
무게: |
0.6 킬로그램 |
► IP67-rated aluminum case
► 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 1 x Input, 3 x Output including 1 x SFP
► Enables 100-meter extension of Ethernet connectivity with PoE
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► No external power cable required for installation
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kB jumbo frame support in 1000Mbps full-duplex mode

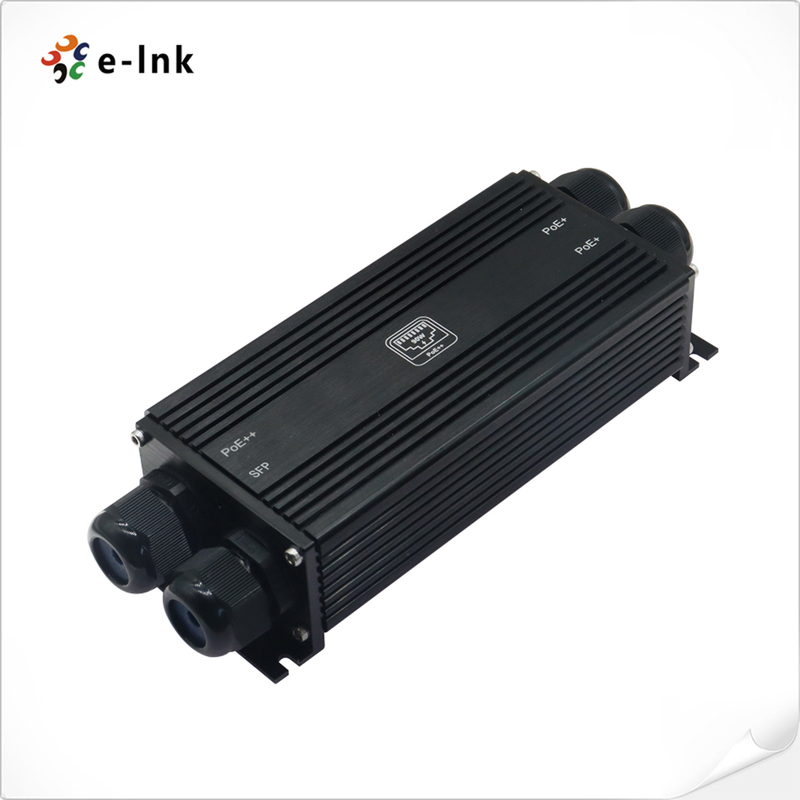

LNK-WP-IPE103-SFP is an industrial-grade IP67-rated Gigabit PoE Extender (1-in 3-out, 90W) that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 50-57V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this extender operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.
|
|
|
|
PoE Input Port |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
PoE Output Port |
2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
Fiber Port |
1 x 100M/1000M SFP Port |
|
Cascade Connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
|
Input Voltage |
IEEE802.3 bt 90W |
|
PoE Output Power |
Maximum 65W |
|
Single Port PoE Output |
Maximum 60W |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
Each extender extends by 100m, max 3 grade Cascade, total 400m. |
|
MAC Table |
2K |
|
Switching Capacity |
6Gbps |
|
Packet Forwarding Rate |
4.46Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Model |
Description |
|
LNK-WP-IPE103-SFP |
IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 3 x Output |
|
Mounting Options |
Wall Mount Bracket is included. |
