제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-WP-IPS103
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 산업용 기가비트 PoE 스위치 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
키워드: |
산업적 기가비트 포 스위치 |
작동 온도: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
작동 습도: |
0 ~ 95% (비 콘센트) |
차원 (WxDxH): |
95 Ｘ 70 Ｘ 30 밀리미터 |
무게: |
0.25kg |
키워드: |
산업적 기가비트 포 스위치 |
작동 온도: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
작동 습도: |
0 ~ 95% (비 콘센트) |
차원 (WxDxH): |
95 Ｘ 70 Ｘ 30 밀리미터 |
무게: |
0.25kg |
► IP67-rated aluminum case
► 3 x 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 48 ~ 57V DC Power Input
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kb jumbo frame support in 1000Mbps full-duplex mode
► 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) Power Pin Assignment

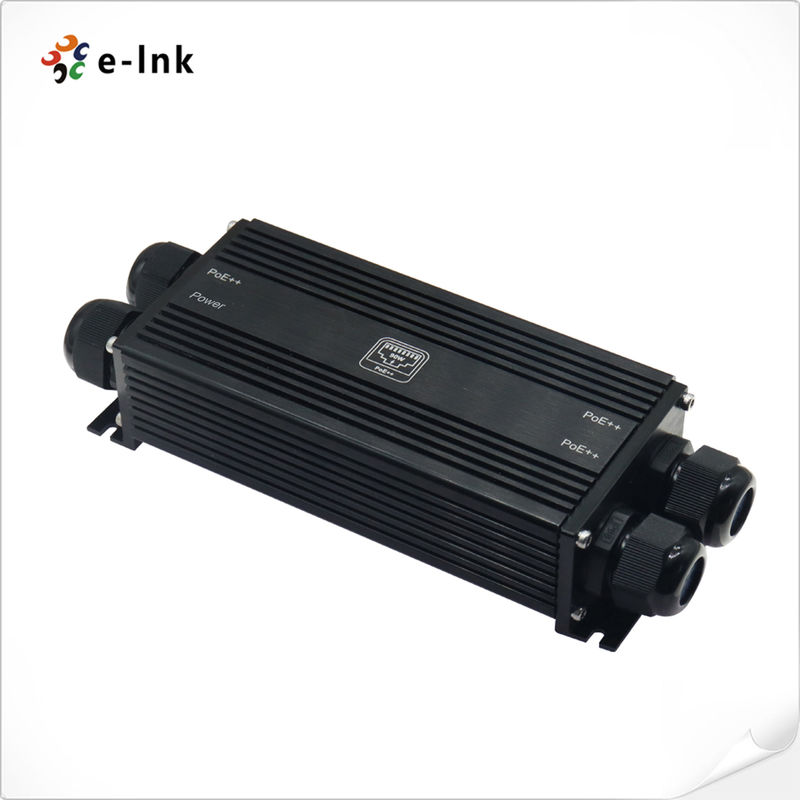

LNK-WP-IPS103 is an industrial-grade IP67-rated Gigabit PoE Switch that utilizes Power over Ethernet technology. It extends 1000Mbps Ethernet signals up to 100 meters, significantly increasing transmission distance while providing standard PoE power supply of 48V to communication devices.
Featuring industrial-grade housing and waterproof terminal design with IP67 protection rating, this switch operates within a wide temperature range of -40°C to 80°C, ensuring reliable performance in harsh environments. It is ideally suited for security surveillance and network engineering applications.
|
|
|
|
PoE Port |
3 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af/at/bt |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
|
PoE Output Power |
Single Port Maximum 90W, Total 270W |
|
Power Input |
|
|
Input voltage |
48 ~57V DC |
|
Power port |
DC, M25 x 1.5 Cable Glands |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
|
Forwarding Modes |
Store and Forward |
|
MAC Table |
2K |
|
Switching Capacity |
6Gbps |
|
Packet Forwarding Rate |
4.46Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Model |
Description |
|
LNK-WP-IPS103 |
IP67 Waterproof Industrial Gigabit PoE Switch |
|
Mounting Options |
Wall Mount Bracket is included. |
