제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, ROHS, FCC
모델 번호: LNK-1100WSFP
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: negotiate
포장 세부 사항: 미디어 컨버터 표준 상자 포장
배달 시간: 1-3 일로 일합니다
지불 조건: T/T, 웨스턴 유니온, 머니그램, 페이팔
공급 능력: 1000년 / 달
전환수준: |
미디어 변환 |
BER: |
<10-9> |
MTBF: |
100,000 시간 |
전원 공급: |
외부 전원: AC90~264V/DC100~380V 입력, 5V1A 출력 |
온도 유지: |
-40~70ºC |
습도 유지: |
5% ~ 90% 불응축 |
전환수준: |
미디어 변환 |
BER: |
<10-9> |
MTBF: |
100,000 시간 |
전원 공급: |
외부 전원: AC90~264V/DC100~380V 입력, 5V1A 출력 |
온도 유지: |
-40~70ºC |
습도 유지: |
5% ~ 90% 불응축 |

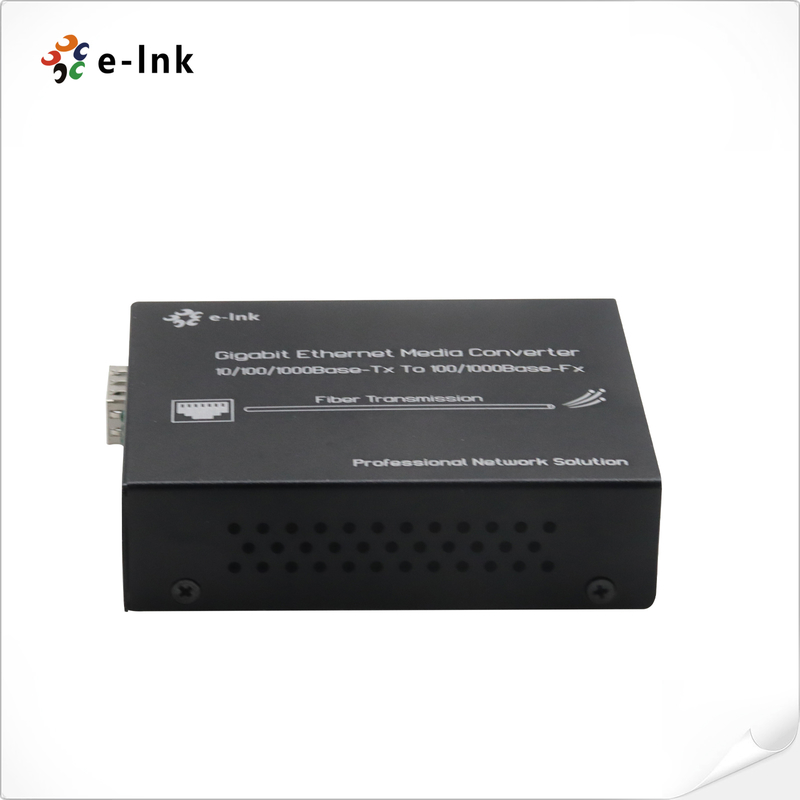

Model : LNK-1100WSFP
Overview
LNK-1100WSFP is an Ethernet media converter that converts media transmission between UTP Copper
cabling and fiber SFP (Small Form-Factor Plug gable) Transceivers. It complies with IEEE802.3, IEEE802.3u
and IEEE802.3x standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX,
and 1000Base-FX, inter-converting electrical signals of 10Base-T/100Base-TX twisted pairs with optical
signals of 100Base-FX. It extends the transmission distance of network from 100m via copper cable to
120 km via fiber optical cables.
Features
► Supporting the transmission of extra-long VLAN packets
► Use Port 10/100Base-TX (RJ45), 100Base-FX (SFP slot)
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX with 100Base-FX
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps Fast Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | multi-mode Dual-fiber: 2KM |
| single mode Dual-fiber: 20/40/60/80 Km | |
| single mode Single fiber: 20/40/60/80 Km | |
| Category-5 twisted pairs: 100m | |
| Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
| One optical port: SFP 3.3V | |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | POWR (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
| Power supply | External Power: AC90~264V/DC100~380V input, 5V1A output |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
Ordering Information
| Model | Description |
| LNK-1100WSFP | 10/100Base-T to 100Base-F, SFP slot, excl. SFP module, standalone, external power adaptor |
