제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, RoHS, FCC
모델 번호: LNK-IMC008GP
문서: E-link LNK-IMC010G Mini Ind....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7~10 일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 100000 PC / 달
무게: |
300g |
설치 옵션: |
DIN-레일 /는 벽에 장착합니다 |
케이스: |
알루미늄 케이스 |
전원 입력 과부하: |
리셋가능한 자동장치 |
작동 온도:: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
무게: |
300g |
설치 옵션: |
DIN-레일 /는 벽에 장착합니다 |
케이스: |
알루미늄 케이스 |
전원 입력 과부하: |
리셋가능한 자동장치 |
작동 온도:: |
80' Ｃ에 대한 -40' Ｃ (176' Ｆ에 대한 -40' Ｆ) |
Product Advantages
► 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
9216bytes |
|
MAC Address Table: |
4K entries |
|
Switch Fabric: |
20Gbps/non-blocking |
|
Switch Throughput (packet per second) |
14.88Mpps@64bytes |
|
Connector: |
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC Redundant power with polarity reverses protection function |
|
Power Consumption: |
<10W |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|

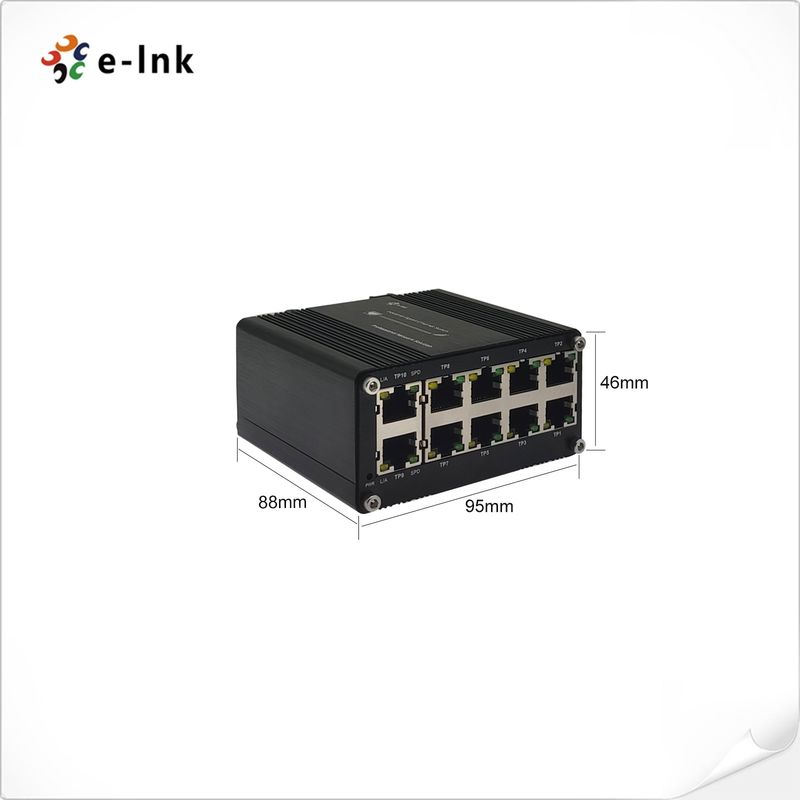

Dimensions (WxDxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
Application
Ordering Information
|
Model |
Description |
|
LNK-IMC010G |
Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
