제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: RoHS,CE,FCC
Model Number: LNK-IMC008P
지불 및 배송 조건
Minimum Order Quantity: 1pc
가격: US$70-85/pc
Packaging Details: Industrial PoE Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000PCS/Month
Keyword: |
Industrial PoE Ethernet Switch |
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
Dimensions (WxDxH): |
150 x 110 x 50 mm |
Weight: |
0.6Kg |
Port: |
RJ45 Port 1 ~ Port 8 |
Input Power: |
48~57VDC , Redundant Power (6-pin Terminal Block) |
Keyword: |
Industrial PoE Ethernet Switch |
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
Dimensions (WxDxH): |
150 x 110 x 50 mm |
Weight: |
0.6Kg |
Port: |
RJ45 Port 1 ~ Port 8 |
Input Power: |
48~57VDC , Redundant Power (6-pin Terminal Block) |
Industrial PoE Switch 8 Port Unmanaged PoE Switch PoE Ethernet Switch
Industrial PoE Switch Advantages
► 8x10/100Base-TX with PoE+
► Support IEEE802.3at PoE (30W per port)
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports 16K MAC address
► 2M bits frame buffer memory
► Supports DIN-Rail and Wall-mount installation
► Redundant Power Inputs
Technical Indexes
| Interface | |
| Connector: | 8 x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC , Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 245W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| Dimensions (WxDxH): | 150 x 110 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Overview

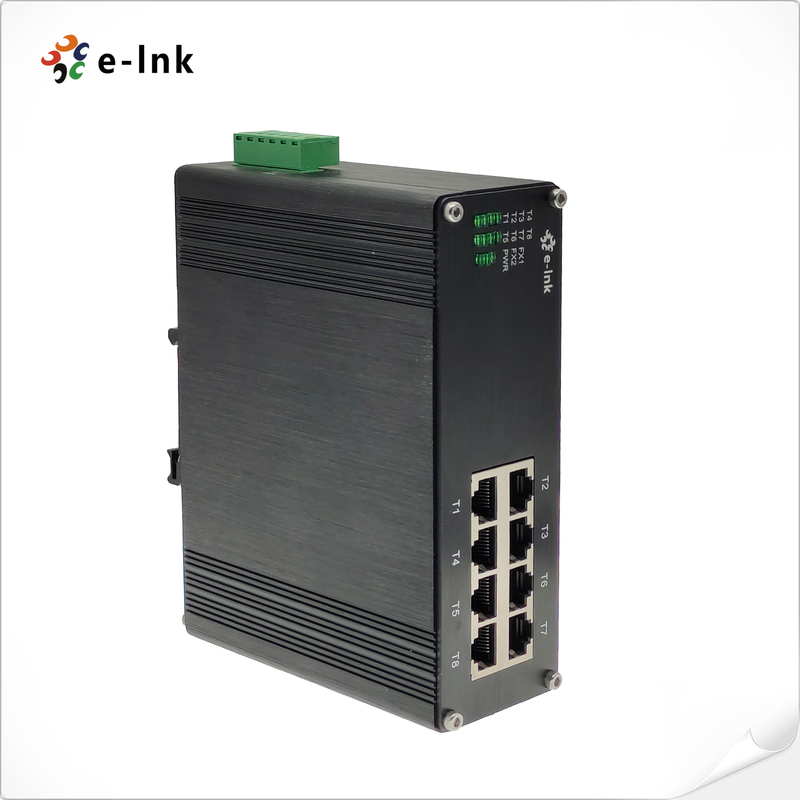

LNK-IMC008P is an 8 ports 10/100Base-TX Hardened Ethernet PoE switch. The switch provides 8 port PoE+ function for
kinds of Powered Devices to receive power as well as data over the RJ-45 cable. With its reliable design and ease of use,
the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access
points between remote locations.
Ordering Information
| Model | Description |
| LNK-IMC008P | Industrial 8-port 10/100BASE-T (8-port PoE+) Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
