제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: CE
Model Number: LNK-MN-1000MC-SC
문서: E-link Mini 10100TX To 100F....0.pdf
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: 협상 가능
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Dimension: |
58mm (W)×20mm (H)×90 mm (L) |
Operating Temperature:: |
0~50ºC |
Input voltage: |
DC 5V~12V |
Power consumption: |
<3W |
Weight: |
46g |
Dimension: |
58mm (W)×20mm (H)×90 mm (L) |
Operating Temperature:: |
0~50ºC |
Input voltage: |
DC 5V~12V |
Power consumption: |
<3W |
Weight: |
46g |
Product Advantages
· 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter
· Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards
· SC Fiber Port
· DIP switch to set different configuration
· LFP (Link Fault Pass-through) support
· Support jumbo frame
· Compact package size
Overview

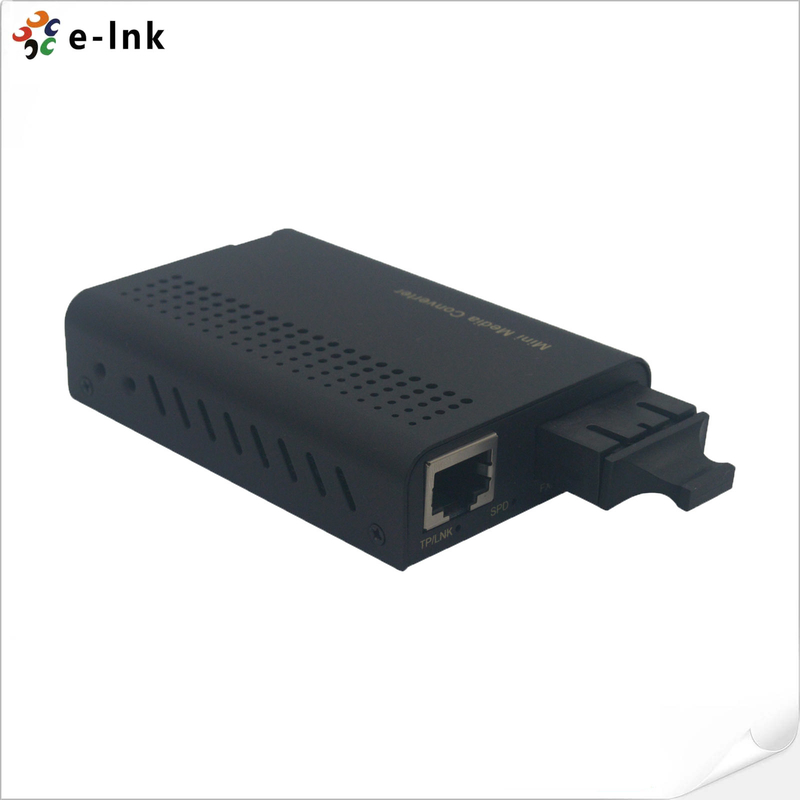

The Mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc.
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps |
|
Standard |
IEEE802.3, IEEE802.3u,IEEE802.3Z,IEEE802.3x |
|
1000Base-FX or 100Base-FX |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Multi-mode: |
|
single mode: |
|
|
Cat-5 twisted pairs: 100m |
|
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; |
|
Half duplex: back pressure |
|
|
Input voltage |
DC 5V~12V |
|
Power consume |
<3W |
|
Operating temperature |
0~50ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
58mm (W)×20mm (H)×90 mm (L) |
Ordering information
|
Item |
Description |
|
LNK-MN-1000MC-SC |
Mini 10/100/1000Base-TX to 1000Base-SX Media Converter, Multi mode, 850nm, SC, 550m, standalone |
|
LNK-MN-1000MC-SC-20 |
Mini 10/100/1000Base-TX to 1000Base-FX Media Converter, Single Mode, 1310nm, SC, 20km, standalone |
