제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC
모델 번호: LNK-WP301
지불 및 배송 조건
최소 주문 수량: 1PC
가격: 협상 가능
포장 세부 사항: 포 분사기 표준 수출 패키지
배달 시간: 3~5 근무일
지불 조건: 페이팔, TT, 웨스턴 유니온, 머니그램, 알리페이
공급 능력: 달 당 2000 PC
제품 이름: |
방수 PoE 주입기 |
포 표준: |
IEEE802.3af/at |
입력 전원: |
12~48VDC |
출력: |
IEEE802.3at 30W |
무게: |
1.5kg |
크기: |
260mm x 210mm x 80mm |
제품 이름: |
방수 PoE 주입기 |
포 표준: |
IEEE802.3af/at |
입력 전원: |
12~48VDC |
출력: |
IEEE802.3at 30W |
무게: |
1.5kg |
크기: |
260mm x 210mm x 80mm |

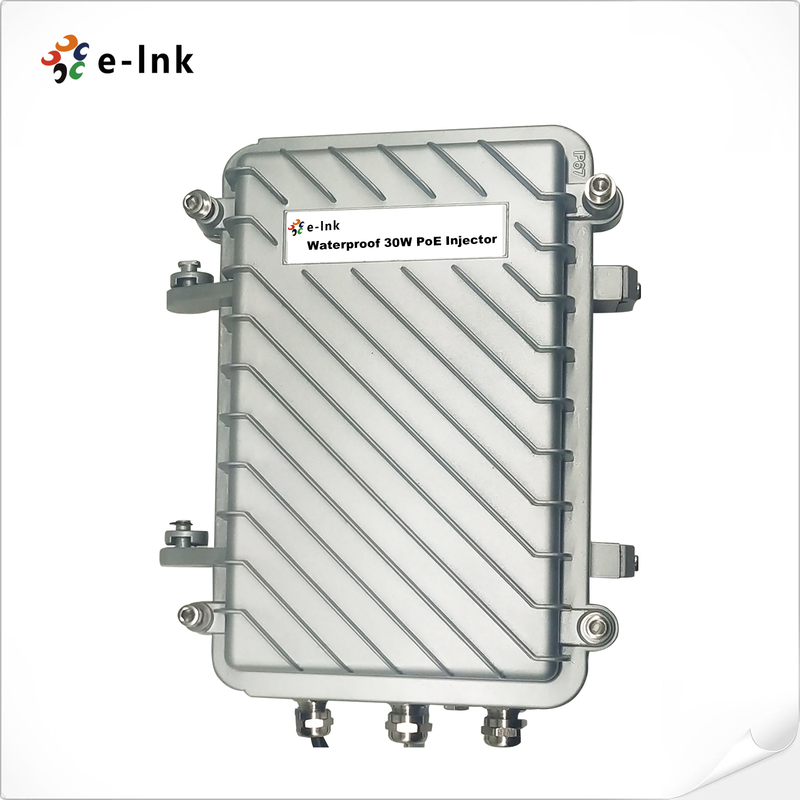

Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection
Features
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► Supports Wall-mount installation
► Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-WP301 provides 30W PoE power for remote PDs over 2 pairs output with 6KV (10/700us) surge
protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring
safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless
LAN access points, security network cameras and other IP terminals to receive power, a long with data,
over standard Ethernet cables, leaving network infrastructure completely unaltered.
Application
Technical Indexes
| Parameter | Specifications |
| Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
| Input & Output |
Input : 12~48VDC Output: IEEE802.3at 30W Power Pins: 4/5(+), 7/8(-) Data Speed: 10/100/1000Mbps |
| Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
