제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
모델 번호: LNK-DVI-1D1BA 광섬유 익스텐더
문서: E-link LNK-DVI-1D1BA DVI+Bi....0.pdf
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 통 패키징
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
120 x 83 x 28 (mm) |
Operating Temperature: |
-20℃ ~ +70℃ |
Humidity: |
5% ~ 90% |
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V |
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
120 x 83 x 28 (mm) |
Operating Temperature: |
-20℃ ~ +70℃ |
Humidity: |
5% ~ 90% |
Power dissipation: |
MAX 4W |
Power supply: |
The power adapter: DC 5V |
Advantages
► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

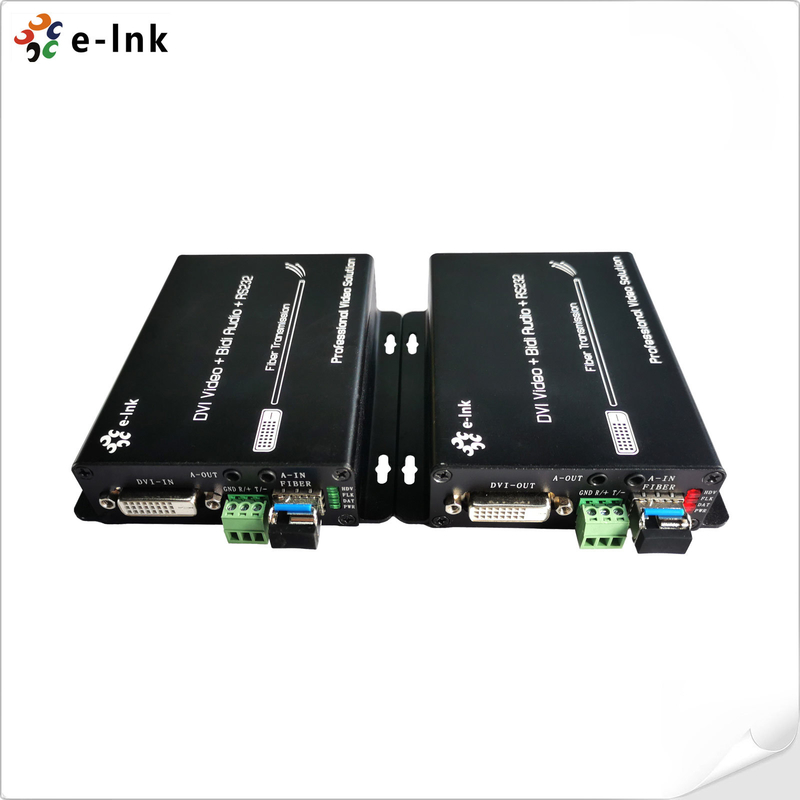

The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Application
