제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-UVGA-KVM
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 익스텐더 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
키워드: |
HDMI 익스텐더 |
작동 온도: |
-5C ~ +70C |
전원 공급: |
어댑터 : DC 12V/1A |
전력 소비: |
맥스 4W |
차원 (W x D x H): |
92 Ｘ 89 Ｘ 26 밀리미터 |
보증: |
1년 보증 |
키워드: |
HDMI 익스텐더 |
작동 온도: |
-5C ~ +70C |
전원 공급: |
어댑터 : DC 12V/1A |
전력 소비: |
맥스 4W |
차원 (W x D x H): |
92 Ｘ 89 Ｘ 26 밀리미터 |
보증: |
1년 보증 |
► Transmit VGA video and audio over long distances through the cable, up to 150 meters;
► The highest resolution HD video signals up to 1080P @ 60Hz;
► Compliance with VGA standard protocol;
► Support for external one-way analog stereo audio signal transmission;
► Support USB keyboard and mouse transmission;
► It can automatically identify and configure a variety of display modes;
► Built-in automatic equalization system, the picture is smooth, clear and stable;
Built-in ESD Protection Circuit, comprehensive protection system

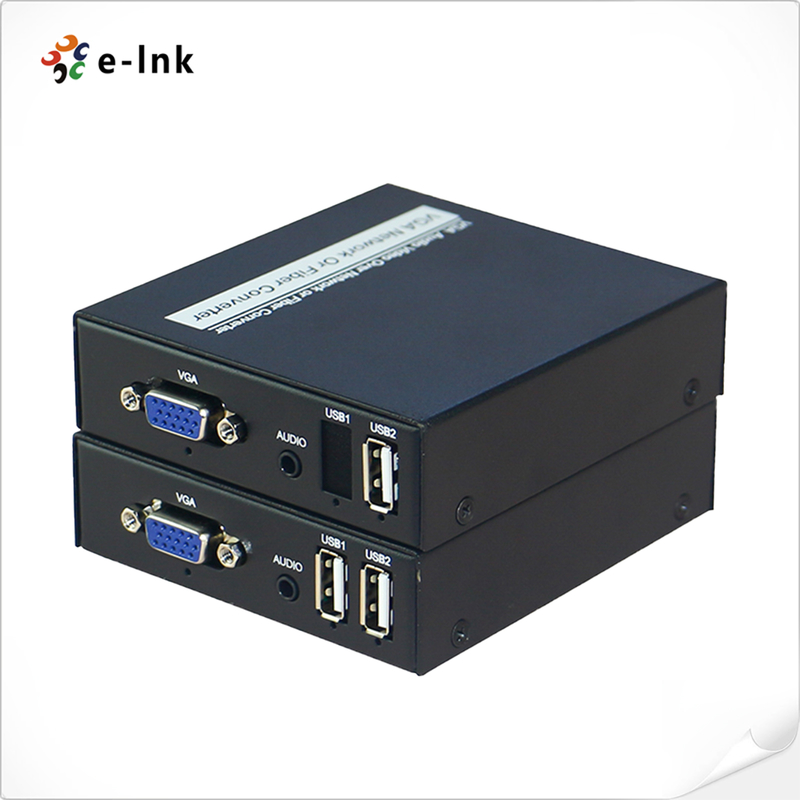

LNK-UVGA-KVM Extender could transmission high-definition video long distance through a single cable, while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications.
The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.
|
Parameter |
Description |
|
|
Video |
Signal Type |
VGA |
|
BW |
380MHz |
|
|
Resolution |
1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps |
|
|
Impedance |
75Ω |
|
|
Audio |
Port |
3.5mm Stereo audio socket |
|
Type |
Stereo |
|
|
K/M |
PIN |
USB |
|
Ethernet port |
Cable Type |
IEEE 568B |
|
Max transmission distance |
Cat5e :120m,cat6 :150m |
|
|
Part No |
Description of product |
|
LNK-UVGA-T/R |
VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
|
LNK-UVGA-KVM-T/R |
USB VGA KVM Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters |
