제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-CSH-12G
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 변환기 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
키워드: |
HDMI 컨버터 |
작동 온도: |
0 내지 55C |
차원 (W x D x H): |
253 Ｘ 162.5 Ｘ 40 밀리미터 |
배송 중량: |
1030g |
습도: |
95 ℃ 미만 |
키워드: |
HDMI 컨버터 |
작동 온도: |
0 내지 55C |
차원 (W x D x H): |
253 Ｘ 162.5 Ｘ 40 밀리미터 |
배송 중량: |
1030g |
습도: |
95 ℃ 미만 |
► Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
► SDI supports up to 12G-SDI, support 4:2:2 HDMI2.0 output
► The highest resolution is 4K 60HZ, which can be down-converted to 1080P 60HZ
► Support audio embedding and de-embedding, compatible with AES/RCA audio
► SDI supports 8 Channels for embedded audio
► Support HDMI HDCP ON and OFF
► Fiber SFP port available, support 12G remote transmission
► Support phantom power

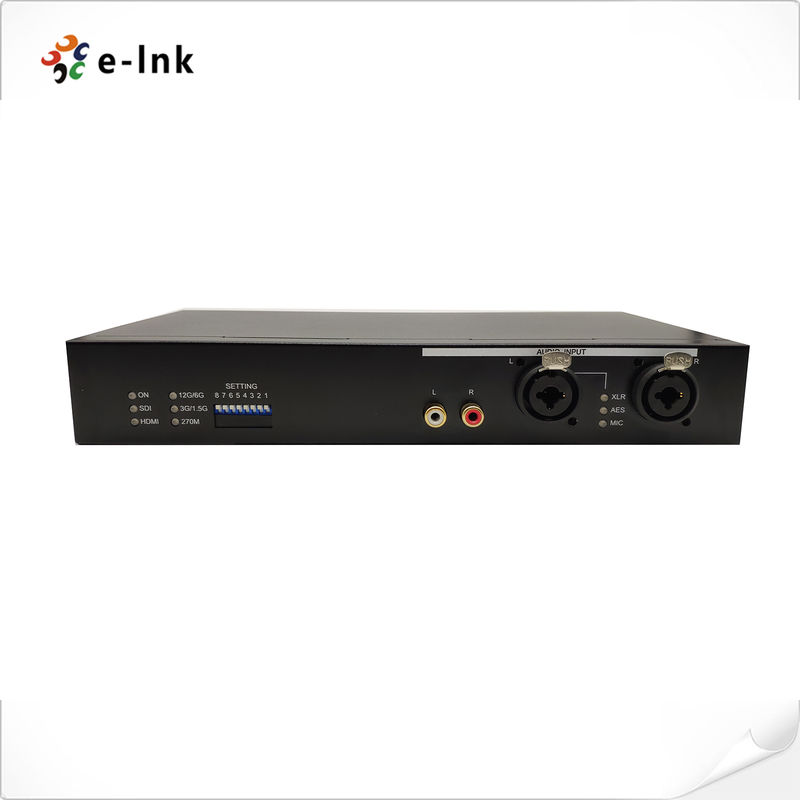

The LNK-CSH-12G is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, It’s with Fiber SFP port available, support 12G remote transmission. The LNK-CSH-12G is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.
|
Input Interface |
1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
|
Output Interface |
1 x HDMI Type A, 1 x 75Ω BNC, 1 x Video SMPTE SFP+ |
|
|
Audio Interface |
2 x XLR Male Jack |
|
|
|
2 x XLR Female Combo 6.4 Jack |
|
|
|
2 x 10KΩ RCA |
|
|
Transmission Distance |
Fiber SFP |
10KM |
|
|
12G-SDI |
40M |
|
|
3G-SDI |
100M |
|
|
HD-SDI |
200M |
|
Model |
Description |
|
LNK-CSH-12G |
12G-SDI to HDMI 2.0 Converter, broadcast level, support audio embedding and de-embedding, compatible with AES/RCA audio, Fiber SFP port available (not including SFP modules) |
