제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: LNK-V4U
문서: E-link 4U Video Converter C....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7~10 일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 100000 PC / 달
무게: |
7.4 킬로그램 |
치수 (mm): |
482.6x313.5x177 |
작동 전압: |
DC5V 20A |
작동 온도 :: |
-30°C ~ +55°C |
무게: |
7.4 킬로그램 |
치수 (mm): |
482.6x313.5x177 |
작동 전압: |
DC5V 20A |
작동 온도 :: |
-30°C ~ +55°C |
Product Advantages
► The configuration of active/standby power supply ensures uninterruptible operation of the system.
► Provide two power supplies, enabling the system can work under many operating environments;
► Supporting simultaneous operation of 2Ch, 4Ch or 8Ch Card-type Video Converters, which greatly improves system adaptability;
► Supports hot swapping
Overview

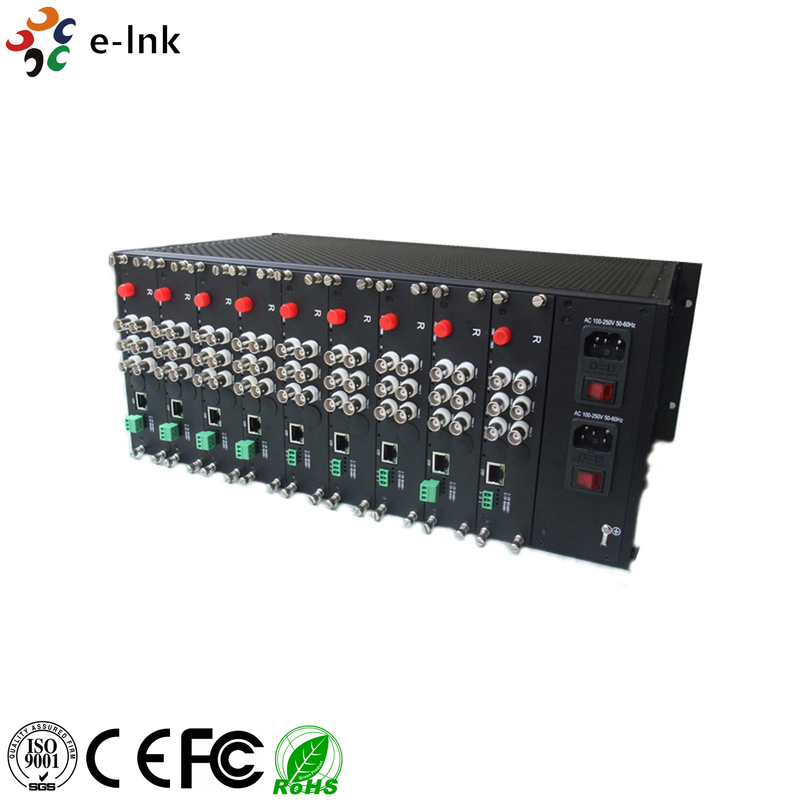

The LNK-V4U chassis can accommodate a combination of up to 16 pieces E-link fiber optic 2-8 x video/data/audio transceiver modules. It makes your installation easier. The chassis employs a 110/220 VAC Switch Mode Power Supply(SMPS) design, which reduces the possibility of a single module failure causing a shutdown or a major failure of other modules within the chassis. The high reliability and stability ensures that if one module shuts down, the operation of the other modules remains unimpaired.
Technical Indexes
|
Parameter |
Specifications |
|
Number of slots |
16 |
|
Structure |
19” 4U rack |
|
Card-type video converter support |
2Ch, 4Ch or 8Ch Card-type Video Converters |
|
Power input |
AC Voltage: AC 100~260V; frequency: 50/60 Hz |
|
Power output |
DC5V 20A |
|
MTBF |
> 100,000 hours |
|
Power configuration |
Single power supply; or Dual power supply for warm backup mode |
|
Dimension (mm) |
482.6x313.5x177 |
|
Weight |
7.4KG |
|
LED indication |
POWER (power supply) |
|
Construction |
Aluminum |
|
Operating temperature |
-30°C to +55°C |
|
Storage Temperature |
-40°C to +85°C |
|
Relative humidity |
5%~90% (non condensing) |
|
Model |
Description |
|
LNK-V4U |
19" 4U Rack-Mount Chassis, 16-Slot, 16pcs 2CH/4CH or 9pcs 8CH Card-type Video Receiver can be put in the Chassis, Dual Power Supply |
