제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: lnk-poe208 lnk-poe208at lnk-poe308 lnk-poe308at
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 인젝터 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
키워드: |
POE 어댑터 인젝터 |
작동 온도: |
0 ~ +40 ° C, |
차원 (W x D x H): |
280x186x44 (H × D × W) |
입력 전원: |
90-240V AC, 50-60Hz |
무게: |
1.5kg |
습도: |
맥스. 95% rh(불응축) |
키워드: |
POE 어댑터 인젝터 |
작동 온도: |
0 ~ +40 ° C, |
차원 (W x D x H): |
280x186x44 (H × D × W) |
입력 전원: |
90-240V AC, 50-60Hz |
무게: |
1.5kg |
습도: |
맥스. 95% rh(불응축) |
►Supply power to HD network surveillance cameras with Cat5e (PoE)
►16x 10/100M RJ45 ports; 1x AC input port; 8x PoE Ports
►AC input: 90V~264V
►Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)
►Coming with the Ethernet network port and PoE output port
►Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
►No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

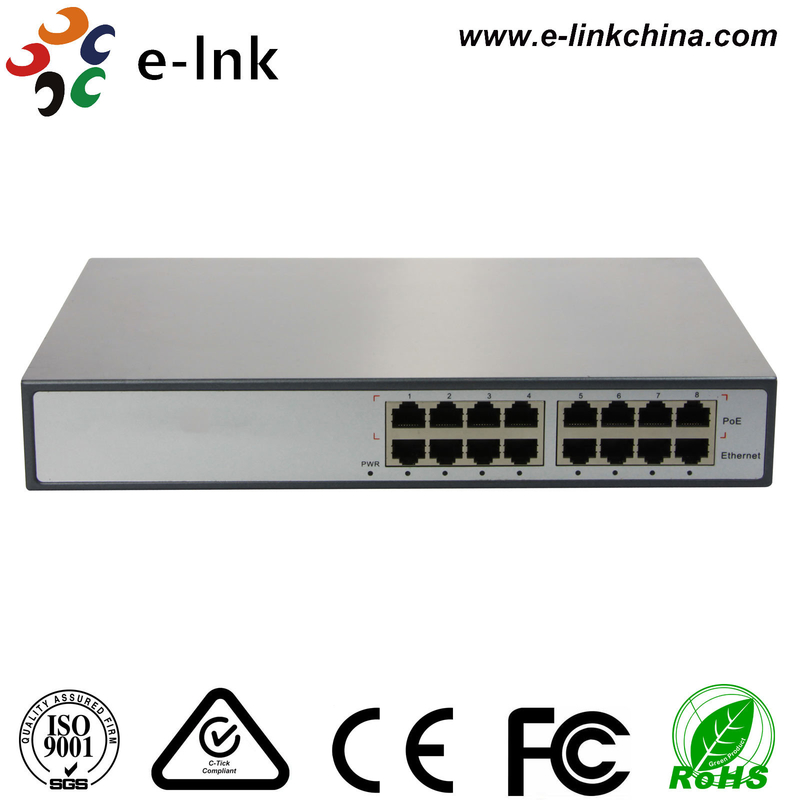

These 8-Port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective. They can supply power to HD webcam through Cat5 Ethernet cable, in order that make it more flexible for the places difficult to connect to power supply, and provide with more efficient solutions.
|
Parameter |
Specifications |
|
Features |
Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45 |
|
|
Data Input Interface 8*RJ-45 10/100Base-TX/ Data Input Interface 8*RJ-45 10/100/1000Base-TX |
|
|
Output Port Power Cable Included |
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
8*15.4W Max IEEE802.3af 8*30W Max IEEE802.3at |
|
Wiring |
Data provide over pairs 1/2(+) and 3/6(-) |
|
|
Power over spare pairs 4/5(+) and 7/8(-) |
|
LED Display |
YES |
|
Model |
Decription |
|
LNK-POE208 |
8-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W |
|
LNK-POE208AT |
8-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W |
|
LNK-POE308 |
8-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W |
|
LNK-POE308AT |
8-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W |
