제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-POE216 LNK-POE216AT LNK-POE316 LNK-POE316AT
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 인젝터 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
키워드: |
POE 어댑터 인젝터 |
작동 온도: |
0 ~ +40 ° C, |
차원 (W x D x H): |
445x260x45 (H × D × W) |
입력 전원: |
90-240V AC, 50-60Hz |
무게: |
5.5Kg |
습도: |
맥스. 95% rh(불응축) |
키워드: |
POE 어댑터 인젝터 |
작동 온도: |
0 ~ +40 ° C, |
차원 (W x D x H): |
445x260x45 (H × D × W) |
입력 전원: |
90-240V AC, 50-60Hz |
무게: |
5.5Kg |
습도: |
맥스. 95% rh(불응축) |

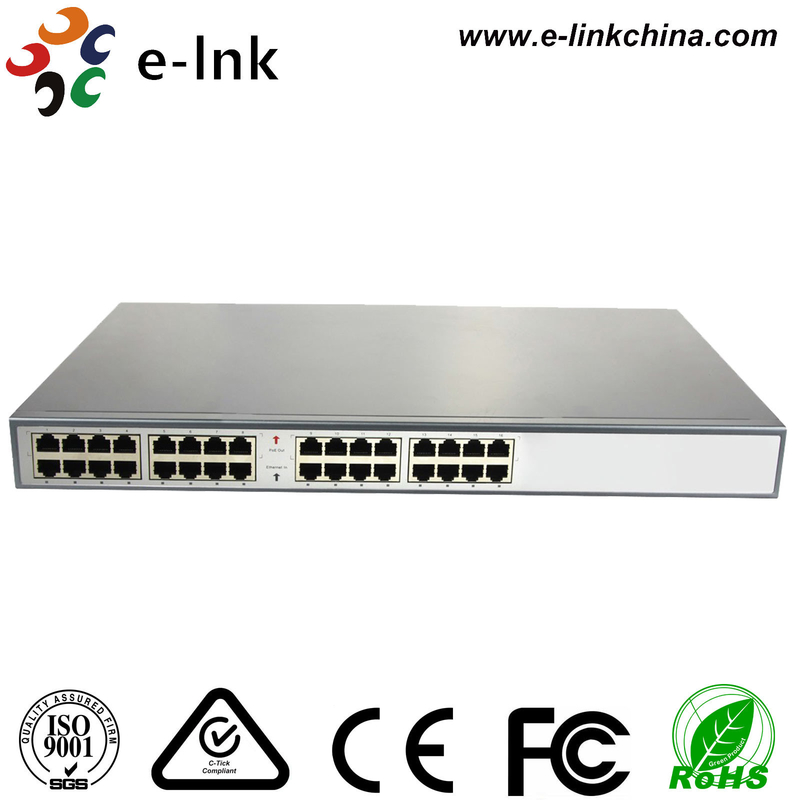

► Supply power to HD network surveillance cameras with Cat5e (PoE)
► 32x 10/100M RJ45 ports; 1x AC input port;16x PoE Ports
► AC input: 90V~264V
► Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)
► Coming with the Ethernet network port and PoE output port
► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall
PoE Injector is also called as Power over Ethernet mid-span devices. 16-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 16x RJ45 PoE ports for these 16-Port PoE injectors. This mid-span have 16x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.
|
Parameter |
Specifications |
|
Features |
Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45 |
|
|
Data Input Interface 16*RJ-45 10/100Base-TX/ Data Input Interface 16*RJ-45 10/100/1000Base-TX |
|
|
Output Port Power Cable Included |
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Power |
16*15.4W Max IEEE802.3af 16*30W Max IEEE802.3at |
|
Wiring |
Data provide over pairs 1/2(+) and 3/6(-) |
|
|
Power over spare pairs 4/5(+) and 7/8(-) |
|
LED Display |
YES |
