제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC, RoHS
모델 번호: LNK-FS168
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: Negotiated
포장 세부 사항: 표준 수출 패키지
배달 시간: 5-12근무일
지불 조건: 전신환, 페이팔
공급 능력: 1000 PC / 입
포트: |
16 1000m SFP 광학 포트 및 8 10/100/1000m RJ45 포트 |
VLAN 주소 테이블: |
4K |
Mac 주소 테이블: |
8k |
치수: |
440x230x44mm (1U19 인치 표준 섀시) |
포트: |
16 1000m SFP 광학 포트 및 8 10/100/1000m RJ45 포트 |
VLAN 주소 테이블: |
4K |
Mac 주소 테이블: |
8k |
치수: |
440x230x44mm (1U19 인치 표준 섀시) |
Advantage
► Support for 802.1x authentication, and to provide users with access to authentication
► Wire-speed filtering - Storage - forward mode, providing a true non-blocking switching structure
► Support the function of port mirroring, port gathering, port speed limit
► Support the port-based VLAN and IEEE802.1Q based on VLAN
► Storm suppression: can be set with the Broadcast, multicast, DLF traffic
Overview

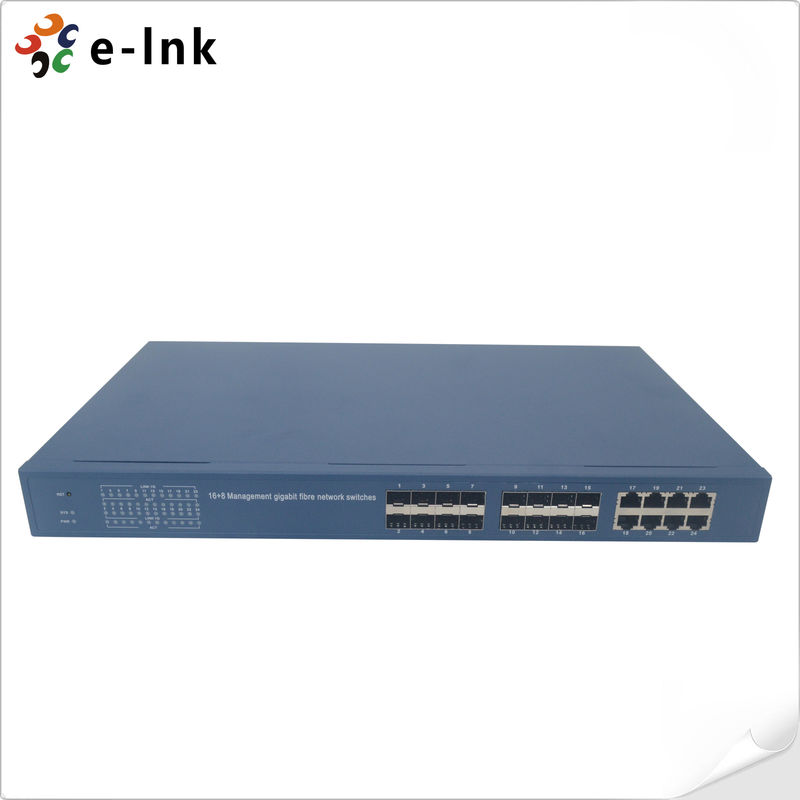

16+8 Management Gigabit fiber network switch is a second, fourth layer gigabit managed switch,
provides 810/100M/1000M RJ45 ports and 16 1000M SFP optical ports. The hard ware supports
wire-speed switching of the second layer.
Technical Indexes
|
Product Type |
16+8 Management gigabit fiber network switches |
|
Support agreement |
IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak |
|
Maximum frame length |
9216B |
|
Ports |
16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports |
|
Network Media |
1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km. |
|
1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters. |
|
|
10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S |
|
|
100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S |
|
|
1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S |
|
|
VLAN Address Table |
4K |
|
MAC address table |
8K |
|
Cache |
32Mbits |
|
Backplane bandwidth |
52Gbit |
|
Filtering and forwarding rate |
10Mbps:14880pps |
|
100Mbps:148800pps |
|
|
1000Mbps:1488000pps |
|
|
Dimensions |
440x230x44mm(1U19-inch standard chassis) |
|
Use of the environment |
Operating Temperature: 0℃～40℃; |
|
Humidity 10% ~ 90% non-condensing |
|
|
Storage temperature: -20℃~70℃; |
|
|
Power |
Input :90-264VAC ,50-60HZ; output: 5V/12A |
|
Power consumption |
Power consumption: 60W |
Ordering Information
|
|
Description |
|
LNK-FS168 |
8G + 16SFP Management Gigabit Fiber Switch: 16 1000M SFP Ports + 8 10/100/1000M RJ45 Port |
