제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: ISO9001, CE, FCC, RoHS
모델 번호: LNK-INJ832
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: Negotiated
포장 세부 사항: 표준 내보내기 패키지
배달 시간: 5-12 일
Payment Terms: T/T,PayPal
공급 능력: 1000pcs/입
입력 전원: |
80~320VDC (단자 블록) |
치수 (WXDXH) :: |
95 x 70 x 30 mm |
무게:: |
0.25kg |
케이싱: |
알루미늄 케이스 |
장착 옵션 :: |
Din-Rail / Wall-Mount |
작동 온도 :: |
-40 ° C ~ 80 ° C (-40 ° F ~ 176 ° F) |
입력 전원: |
80~320VDC (단자 블록) |
치수 (WXDXH) :: |
95 x 70 x 30 mm |
무게:: |
0.25kg |
케이싱: |
알루미늄 케이스 |
장착 옵션 :: |
Din-Rail / Wall-Mount |
작동 온도 :: |
-40 ° C ~ 80 ° C (-40 ° F ~ 176 ° F) |
Advantage
► 80~320VDC wide-range input voltage
► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
► IEEE 802.3af/at compliant, supports a full 30 watt output
► Provides slim size with IP40 metal mechanism
► Support DIN-Rail & Wall-mount installation.
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

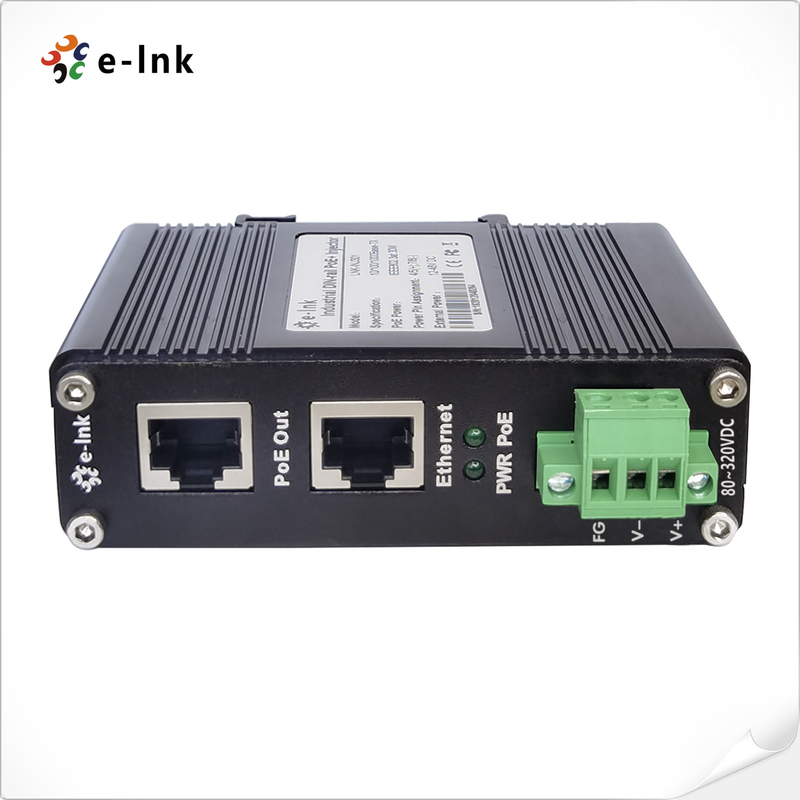

The LNK-INJ832 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at
PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant
with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3at.
LNK-INJ832 provides an integrated power solution with a wide range voltage of 80~320VDC for high availability applications.
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
Processing Type: |
Forward |
|
|
Half-duplex, Full-duplex |
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
80~320VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Application
Ordering Information
|
Model |
Description |
|
LNK-INJ832 |
80~320VDC Power Input Industrial Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
