제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-WP301
지불 및 배송 조건
최소 주문 수량: 1 개 PC
가격: 협상 가능
포장 세부 사항: 인젝터 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 1000 PCS/월
키워드: |
포 분사기 |
작동 온도: |
-40℃ ~ 80℃ |
치수 (w x d x h): |
260mm x 210mm x 80mm |
무게: |
1.5kg |
습기: |
10% 내지 90%, 비 응축성 |
입력 전원: |
12~48VDC |
키워드: |
포 분사기 |
작동 온도: |
-40℃ ~ 80℃ |
치수 (w x d x h): |
260mm x 210mm x 80mm |
무게: |
1.5kg |
습기: |
10% 내지 90%, 비 응축성 |
입력 전원: |
12~48VDC |
► Protection level: IP67
► 6KV(10/700us) surge protection on LAN, PoE ports
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► Supports Wall-mount installation
► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature

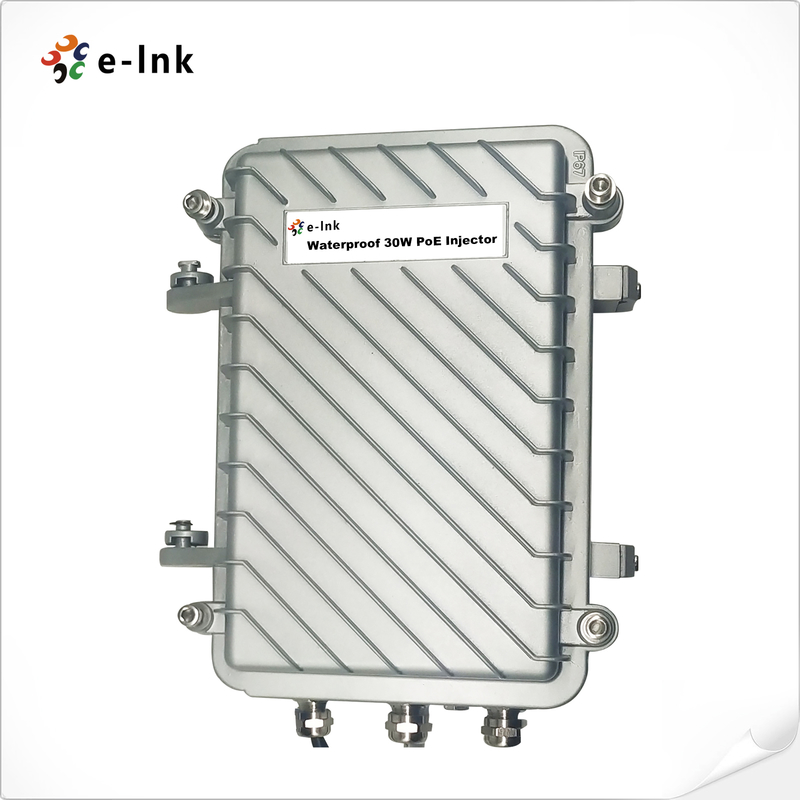

LNK-WP301 provides 30W PoE power for remote PDs over 2 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.
.
|
Parameter |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
|
Input & Output |
Input : 12~48VDC Output: IEEE802.3at 30W Power Pins: 4/5(+), 7/8(-) Data Speed: 10/100/1000Mbps |
|
Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
|
AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
|
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection Ordering Information Ordering Information
|
Model |
Description |
|
LNK-WP301 |
Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection |
