제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC, RoHS，ISO9001
모델 번호: LNK-POE300
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: Negotiated
포장 세부 사항: 표준 내보내기 패키지
배달 시간: 5-12 일
지불 조건: T/T, PayPal
공급 능력: 1000pcs/입
작동 온도 :: |
-10 ° C ~ 50 ° C (14 ° F ~ 122 ° F) |
입력 전압 범위 :: |
100-240V AC @50/60Hz. |
치수 (W × D × H) :: |
145 x 58 x 39mm |
무게: |
0.25kg |
작동 온도 :: |
-10 ° C ~ 50 ° C (14 ° F ~ 122 ° F) |
입력 전압 범위 :: |
100-240V AC @50/60Hz. |
치수 (W × D × H) :: |
145 x 58 x 39mm |
무게: |
0.25kg |
Gigabit PoE Injector Advantage
► Up to 15.4W of PoE Power
► Compliant with IEEE802.3af Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
Gigabit PoE Injector Overview

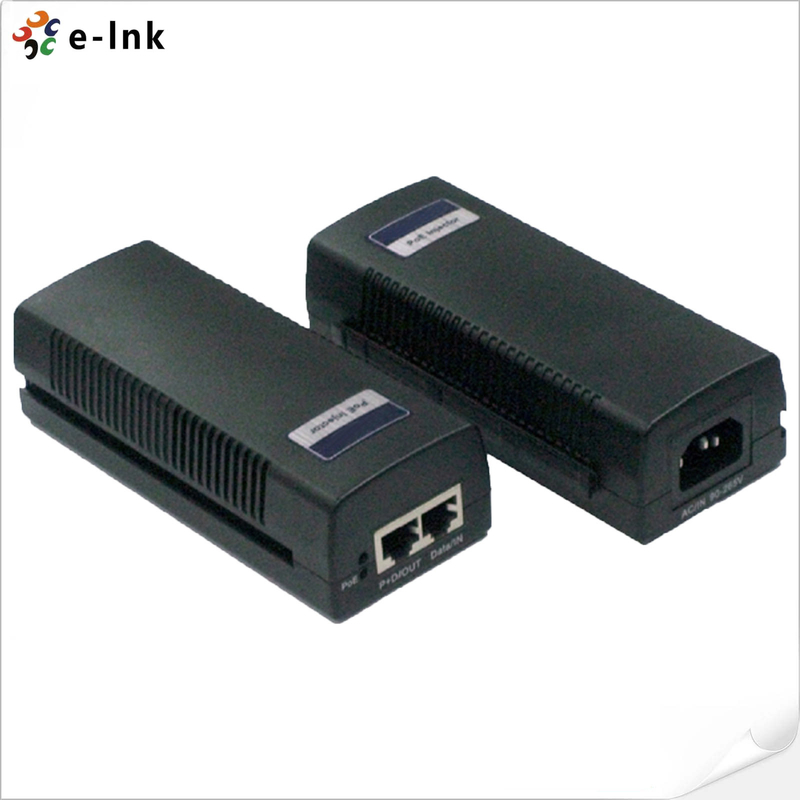

LNK-POE300 15.4W-48V Gigabit POE Injector is a long-distance driving, fast network performing,
strong PoE Output IEEE802.3af certified midspan. It is a single port indoor PoE injector that can
provide up to 15.4W based on the IEEE 802.3af standard.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP
videophones, thin clients and other power Ethernet end terminals with 15.4W of power. The solutions
support IEEE 802.3af powered devices and are also backward compatible and safe to use with any
IEEE 802.3af terminal. With plug and-play installation, they are easy and cost effective to implement
leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future
proof network.
Gigabit PoE Injector Technical Indexes
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz. |
|
Output Voltage: |
DC 48V |
|
Power Consumption: |
15.4 watts max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
Port: |
RJ45 |
|
Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
|
PoE Power Output |
DC 48V/15.4-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
145 x 58 x 39mm |
|
Weight: |
0.25Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
Gigabit PoE Injector Ordering Information
|
Model |
Description |
|
LNK-POE300 |
PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3af 15.4W |
