제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC, RoHS，ISO9001
모델 번호: lnk-poe300at
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: Negotiated
포장 세부 사항: 표준 내보내기 패키지
배달 시간: 5-12 일
지불 조건: T/T, PayPal
공급 능력: 1000pcs/입
작동 온도 :: |
-10 ° C ~ 50 ° C (14 ° F ~ 122 ° F) |
입력 전압 범위 :: |
100-240V AC @50/60Hz. |
치수 (W × D × H) :: |
145 x 58 x 39mm |
무게: |
0.25kg |
작동 온도 :: |
-10 ° C ~ 50 ° C (14 ° F ~ 122 ° F) |
입력 전압 범위 :: |
100-240V AC @50/60Hz. |
치수 (W × D × H) :: |
145 x 58 x 39mm |
무게: |
0.25kg |
Gigabit PoE Injector Advantage
► Up to 30W of PoE Power
► Compliant with IEEE802.3af/at Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)

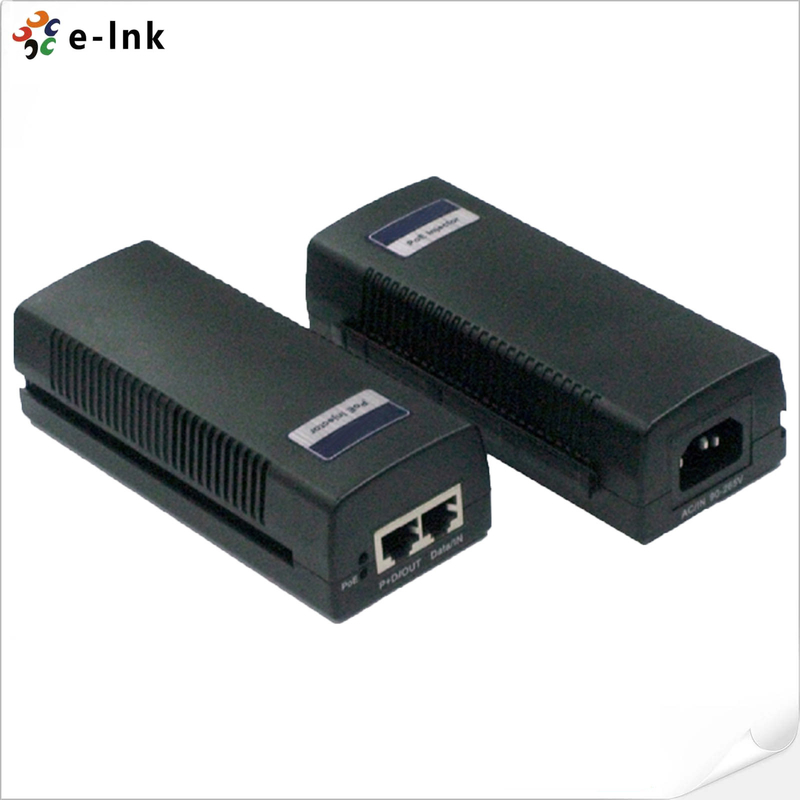

Gigabit PoE Injector Overview
LNK-POE300AT 30W – 48V Gigabit PoE Injector is a long-distance driving, fast network performing,
strong PoE Output IEEE802.3af/at certified midspan. It is a single port indoor PoE injector that can
provide up to 30W based on the IEEE 802.3af/at standard.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP
videophones, thin clients and other power Ethernet end terminals with 30W of power. The solutions
support IEEE 802.3af/at powered devices and are also backward compatible and safe to use with
any IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to
implement leveraging existing Ethernet infrastructure while at the same time providing the assurance
of a future proof network.
Gigabit PoE Injector Technical Indexes
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz. |
|
Output Voltage: |
DC 48V |
|
Power Consumption: |
30 watts max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
|
IEEE 802.3at |
|
Port: |
RJ45 |
|
Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
|
PoE Power Output |
DC 48V/30-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
145 x 58 x 39mm |
|
Weight: |
0.25Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
Gigabit PoE Injector Ordering Information
|
Model |
Description |
|
LNK-POE300AT |
PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3at 30W |
