Media Converter 10/100/1000M Gigabit Ethernet(with External Power Supply) SFP Slot

Name: Media Converter 10/100/1000M Gigabit Ethernet(with External Power Supply) SFP Slot
Brand: E-link China Technology Co.,LTD
SKU: LNK-3011WSFP
Price: 18.00 USD
Availability: InStock

제품 세부 정보

원래 장소: 중국

브랜드 이름: E-link

인증: Iso9001, CE, ROHS, FCC

모델 번호: LNK-3011WSFP

문서: E-link LNK-3011WSFP SFP Med....0.pdf

지불 및 배송 조건

최소 주문 수량: 1pcs

가격: US$16 -US$20

포장 세부 사항: 섬유 미디어 변환기 표준 카톤 포장

배달 시간: 근무일 1-3 일

지불 조건: T/T, Western Union, Moneygram, PayPal

공급 능력: 10000/월

가장 좋은 가격 을 구하라

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                      External Power Supply Media Converter, 10/100/1000M SFP Slot Media Converter, SFP Slot Gigabit Ethernet Media Converter


액세스 모드:	10/100/1000Mbps 기가비트 이더넷	전원 공급 장치:	외부 전력 : AC90 ~ 240V 입력, 5V2A 출력
BER:	<10-9	MTBF:	100,000 시간
온도 유지:	-40 ~ 70ºC	치수 (w x d x h):	71 x 94 x 26 mm

액세스 모드:	10/100/1000Mbps 기가비트 이더넷
전원 공급 장치:	외부 전력 : AC90 ~ 240V 입력, 5V2A 출력
BER:	<10-9
MTBF:	100,000 시간
온도 유지:	-40 ~ 70ºC
치수 (w x d x h):	71 x 94 x 26 mm

설명

Media Converter 10/100/1000M Gigabit Ethernet(with External Power Supply) SFP Slot

Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot

Model: LNK-3011WSFP

Overview

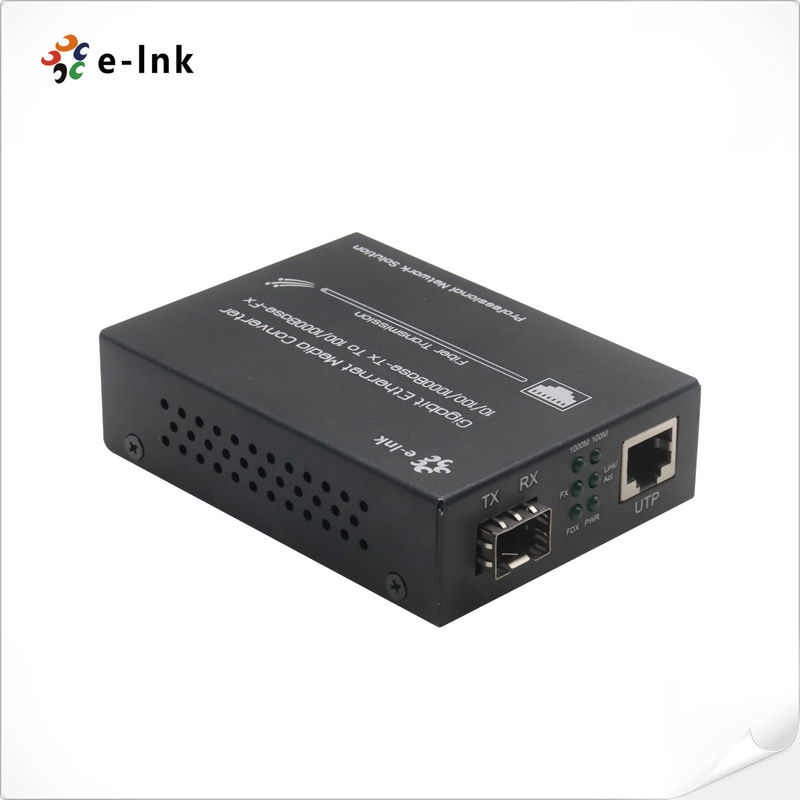

The Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot

(model: LNK-3011WSFP) is a high-reliability network conversion device designed to bridge

UTP copper cabling and fiber SFP (Small Form-Factor Pluggable) transceivers. As a Media

Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot, it strictly

complies with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, ensuring

seamless integration into diverse network infrastructures.

This Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot

supports two critical media network connections: 10Base-T/100Base-TX/1000Base-T (copper)

and 1000Base-SX/LX (fiber). It efficiently inter-converts electrical signals from 10Base-T/100

Base-TX/1000Base-T twisted pairs with optical signals from 1000Base-SX/LX, overcoming the

100m distance limit of copper cables by extending transmission up to 120km via fiber optic cables.

A key advantage of this Media Converter10/100/1000M Gigabit Ethernet (with External Power

Supply) SFP Slot is its dedicated SFP slot, which enables flexible compatibility with various SFP

transceivers, adapting to different fiber types and transmission requirements. Equipped with an

external power supply, it ensures stable operation in industrial or high-demand environments

where reliable power is critical. This combination of versatility and stability makes it an ideal

choice for extending gigabit networks over long distances.

Features

► Supporting inter-conversion between adaptive

► 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Supporting the transmission of extra-long VLAN packets

► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
	single mode Dual-fiber: 20/40/60/80 Km
	single mode Single fiber: 20/40/60/80 Km
	Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Port	One optical port: SFP 3.3V
Conversion means	Media conversion
BER	<10-9
MTBF	100,000 hours
LED indicator	POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action)
Power supply	External Power: AC90~240V input, 5V2A output
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	71 x 94 x 26 mm
