제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, RoHS, FCC, ISO9001
모델 번호: LNK-PSE48
문서: E-link DC48V PoE Injector D....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7-10 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 100000pcs/월
보증: |
CE Mark, Commercial, FCC Part 15 Class B, ROHS 1 년 보증 |
작동 온도 :: |
0 ° 5 55 ° C |
무게: |
0.11 킬로그램 |
작동하는 습도: |
10%~90%, 응축되지 않는 |
치수 (W × D × H) :: |
80x76x25 (mm) |
보증: |
CE Mark, Commercial, FCC Part 15 Class B, ROHS 1 년 보증 |
작동 온도 :: |
0 ° 5 55 ° C |
무게: |
0.11 킬로그램 |
작동하는 습도: |
10%~90%, 응축되지 않는 |
치수 (W × D × H) :: |
80x76x25 (mm) |
Product Advantages
► Supply power to HD network surveillance cameras with Cat5e (PoE)
► 2x RJ45 ports (10/100M or 10/100/1000M); 1x DC input port
► DC input:48V
► Compatible with IEEE 802.3af or IEEE802.3at standard
► Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function
► Can supply power with the spare line pair(4/5 (+), 7/8 (-)
► method or the data line pair 1/2(+), 3/6(-) method

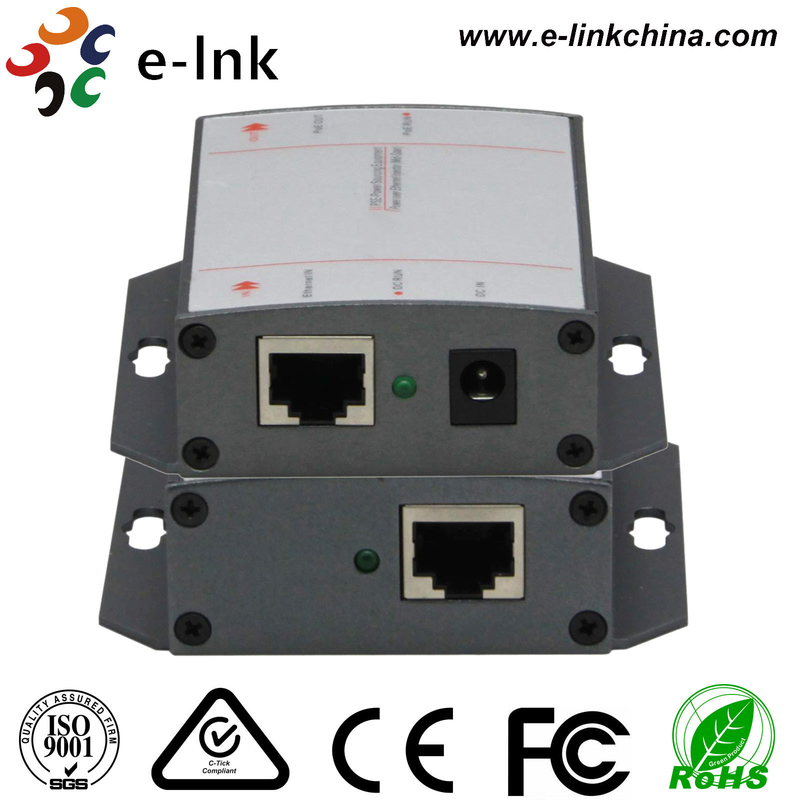

Overview
There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output. These single-port PoE injectors supply power with the spare line pair (4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method. These single-port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective.
Technical Indexes
|
2x copper cable RJ45 ports, 1x DC input port |
|
|
PoE Power Supply |
mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized) |
|
Network Medium |
100BASE-TX or 1000BASE-TX: Cat5 and more UTP (≤100 meters) |
|
Thermal Protection |
>100°C |
|
Performance |
Working Rate:10/100Mbps or 10/100/1000Mbps Network port protection: meet with IEC61000-4-2(ESD) MTBF: 190,000 hours(about 21 years) |
|
PoE Standards |
IEEE802.3af IEEE802.3at |
|
LEDs Indicator |
PoE working status |
|
Power |
Total power: 16W(IEEE802.3af) 30W(IEEE802.3at) PoE port power: 15.4W(IEEE802.3af) 25.5W(IEEE802.3at) DC input voltage: 48V |
|
Dimensions/Weight |
LxWxH: 80x76x25(mm), 0.11kg |
|
Working Environment |
Operating Temperature: 0°～ 55°C Storage Temperature: -20°～ 75°C Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing |
|
Warranty |
CE mark, commercial, FCC Part 15 Class B, RoHS 1 year warranty |
Ordering Information
|
Model |
Description |
|
LNK-PSE48 |
DC Input 48V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3af, 15.4W |
|
LNK-PSE48T |
DC Input 48V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3at, 25.5W |
|
LNK-PSE48G |
DC Input 48V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3af,15.4W |
|
LNK-PSE48GT |
DC Input 48V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3at,25.5W |
