제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC
모델 번호: LNK-PSE1601GH
문서: E-link LNK-PSE1601GH 16-Por....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7-10 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 100000pcs/월
케이싱: |
플라스틱 케이스 |
출력 전압 :: |
52Vdc |
무게: |
6.5kg |
치수 (W × D × H) :: |
440 Ｘ 235 Ｘ 43 밀리미터 |
포 (파워 오브 이더넷): |
800W |
사건: |
금속 케이스 |
케이싱: |
플라스틱 케이스 |
출력 전압 :: |
52Vdc |
무게: |
6.5kg |
치수 (W × D × H) :: |
440 Ｘ 235 Ｘ 43 밀리미터 |
포 (파워 오브 이더넷): |
800W |
사건: |
금속 케이스 |
Product Advantages
► Complies with IEEE802.3af/at standard
► Up to maximum output voltage 60 watts (Power supply of 4 pairs wire)
► Auto-detection for IEEE802.3af/at receiving end
► Support 10/100/1000 Base-T application
► Power light, PoE output light
► Maximum transmission distance 100m
► Built-in AC/DC power-no need external power source
► Certificated by CE,FCC,RoHS
Overview

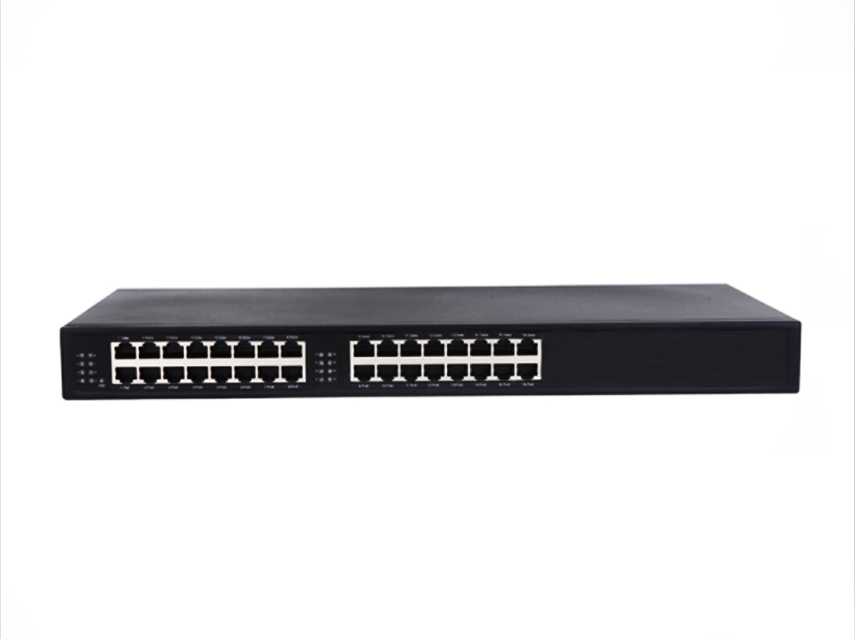

E-link 16 port PoE injector, strictly conforms IEEE802.3af/at standard, its single port supports 60 watts maximum power. This PoE injector can coordinate the applications of traditional network system/security product/LED light. It transmits signal and electric power to terminal devices by using CAT5 or CAT6 cables,and then make the traditional wiring more simple, convenient, safe and reliable.
Technical Indexes
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 16 x RJ-45 STP, “Data” Input Port POE: 16 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz |
|
Output Voltage: |
52VDC |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
IEEE 802.3at |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
V+(Pin1,2)V-(Pin3,4)or V+(Pin4,5)V-(Pin7,8) |
|
PoE Working Mode |
Auto-detection of receiving end Auto-management of power |
|
PoE Power |
800W |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Output Status |
|
Dimensions (W×D×H): |
440 x 235 x 43mm |
|
Weight: |
6.5Kg |
|
Casing: |
Metal Case |
|
Mounting Options: |
19inch Rackmount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Decription |
|
LNK-PSE1601GH |
8-Port 60W High PoE Injector: 55VDC/60W per port/1000Mbps/4,5(+), 7,8(-)&3,6(+),1,2(-) |
