제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC
모델 번호: LNK-POE-24-48W
문서: E-link 95W SFP PoE Injector....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7-10 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 100000pcs/월
작동 온도 :: |
-40C 내지 65C |
크기(LxWxH):: |
203mm x 130mm x 41mm |
사건: |
금속 케이스 |
무게: |
1070g |
EMI: |
FCC CFR47 15 부, EN55024, EN55032 |
작동 온도 :: |
-40C 내지 65C |
크기(LxWxH):: |
203mm x 130mm x 41mm |
사건: |
금속 케이스 |
무게: |
1070g |
EMI: |
FCC CFR47 15 부, EN55024, EN55032 |
Product Advantages
· Gigabit SFP port for Fiber
LNK-PSE951G-SFP is a small switch. Data output through PoE port and SFP port simultaneously, that is to say, besides power device near, LNK-PSE951G-SFP also could transmit data to remote equipment. LAN, Fiber and PoE are data intercommunicating.
· High PoE 95W output, active PoE Injector
Output voltage is rated, 55Vdc. With detection chip inside, before powering, there has a detect process.
· 4KV surge protection on PoE port
To protect indoor devices and inner components from surge damage, we design 4KV (10/700μs) on PoE port.
· AC Port: 2KV(1.2/50us) surge protection
· Wide Working temperature -40℃ to 65℃
LNK-PSE951G-SFP design industrial level working temperature -40℃ to 65℃, to meet harsh conditions requirements.

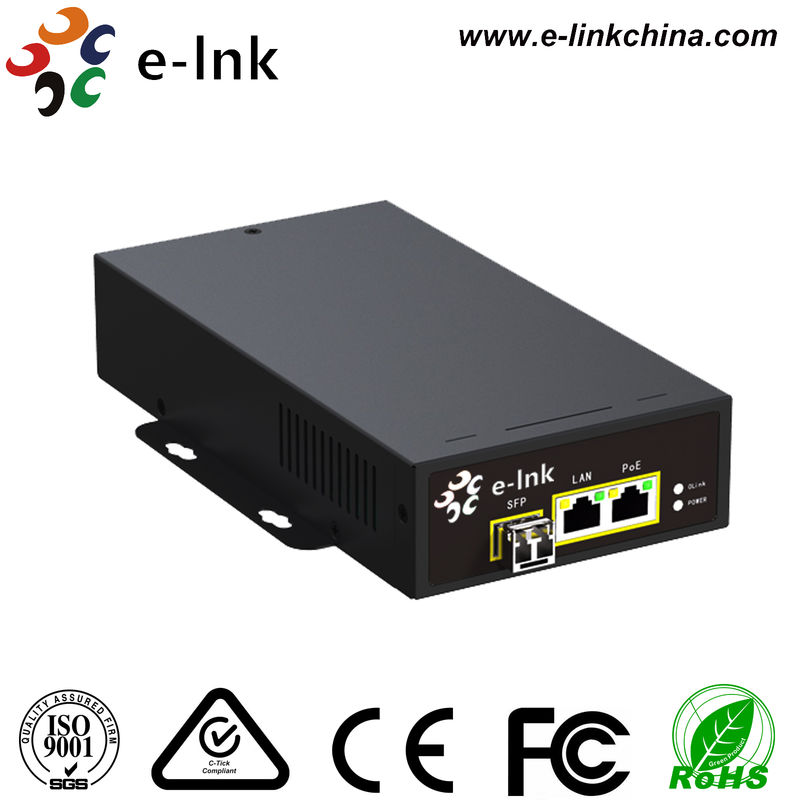

Overview
LNK-PSE951G-SFP is a single port PoE Injector with SFP fiber connection port. It provides 55Vdc, 1.75A power for remote PDs over full-4pairs output with 4KV (10/700us) surge protection. It supports both 10/100Base-T and Gigabit device. It works for 95W PoE PDs, such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at, PoE++ compliant terminals. It works like a switch; data is interoperable among LAN port, PoE port and SFP port.
Technical Indexes
|
Parameter |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance |
|
Input & Output |
Input : 100-240Vac 2.0A 50/60Hz Output: 55VDC 1750mA Power Pins: 4/5(+), 7/8(-) & 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
|
Working Environment |
Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
|
AC Surge Protection |
1.0KV (5P/5N) L-N 1.2/50 (8/20) Tr/Th us 2.0KV (5P/5N) L-PE 1.2/50 (8/20) Tr/Th us N -PE |
|
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 4KV Differential mode surge protection (10/700us): 1.5KV |
|
Mechanical Characteristics |
Case: Metal |
|
Color: Black |
|
|
Mounting: Wall-mounted |
|
|
IP Rated: IP20 |
|
|
Size (LxWxH): 203mm X 130mm X 41mm |
|
|
Weight: 1070g |
|
|
Safety Approvals |
CE, FCC |
|
EMI |
FCC CFR47 Part 15, EN55024, EN55032 |
|
EMS |
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
|
Immunity |
IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
|
LED Indicator |
Power Indicator: Green PoE Load Indicator: Green SFP Fiber Indicator: Green LAN Data Indicator: Yellow |
Ordering Information
|
Model |
Description |
|
LNK-PSE951G-SFP |
95W SFP PoE Injector: 55Vdc/1.75A/1000Mbps/(4,5+,7,8-) and (3,6+,1,2-)/Surge Protection/Active |
