제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC
모델 번호: LNK-POE200W
문서: E-link LNK-PSW Series PoE I....0.pdf
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업적 포 스위치 표준 통 패키징
배달 시간: 7-10 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 100000pcs/월
작동 온도 :: |
0 ~ +40 ° C (32 ° F ~ 104 ° F) |
크기(LxWxH):: |
84 × 47 × 31mm |
사건: |
금속 케이스 |
무게: |
120g |
습기: |
맥스. 95% rh(불응축) |
출력 전원: |
24W/48W 선택 사항 |
작동 온도 :: |
0 ~ +40 ° C (32 ° F ~ 104 ° F) |
크기(LxWxH):: |
84 × 47 × 31mm |
사건: |
금속 케이스 |
무게: |
120g |
습기: |
맥스. 95% rh(불응축) |
출력 전원: |
24W/48W 선택 사항 |
Product Advantages
► Compact wall mount design
► No additional power cables required
► Built in protection circuits
► Supports 10/100M or 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

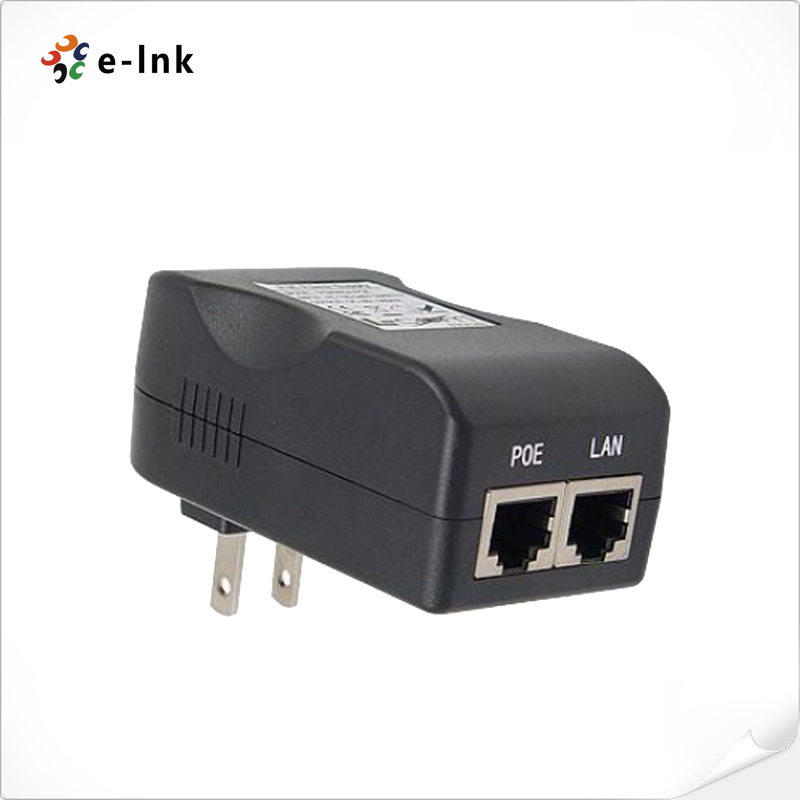

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.
Technical Indexes
|
Parameter |
Specifications |
|
Data Rate |
10/100Mbps 10/100/1000Mbps |
|
Connectors |
2xRJ45 Jacks |
|
Input Power |
90-240V AC ,50-60Hz |
|
Output Voltage |
12V/24V/48V/52V/56VDC optional |
|
Output Current |
0.5A/0.8A/0.9A/1.0A/2.0A Optional |
|
Output Power |
24W/48W optional |
|
Wiring |
|
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
|
LED Display |
YES |
|
Over Load Protection |
115%-150% of Rated Power |
|
Operating Temperature |
0 to +40°C (32°F to 104°F) |
|
Operating Humidity |
Max. 95% RH(non-condensing) |
|
Dimension (LxWxH) |
84×47×31mm |
|
Weight |
120g |
Ordering Information
|
Model |
Decription |
|
LNK-POE200W |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W |
|
LNK-POE200WT |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W |
|
LNK-POE300W |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W |
|
LNK-POE300WT |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W |
