제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: CE, FCC
Model Number: LNK-IPOE-95W
문서: E-link LNK-IPOE-95W Outdoor....0.pdf
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: 협상 가능
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Weight: |
0.25Kg |
Dimensions (WxDxH):: |
95 x 70 x 30 mm |
Operating Temperature:: |
-40°C to 80°C (-40°F to 176°F) |
Case: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power Consumption:: |
100W Max. |
Weight: |
0.25Kg |
Dimensions (WxDxH):: |
95 x 70 x 30 mm |
Operating Temperature:: |
-40°C to 80°C (-40°F to 176°F) |
Case: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power Consumption:: |
100W Max. |
Product Advantages
► Support 10/100/1000Base-TX
► IEEE 802.3af/at/bt compliant
► Outdoor using, power directly
► PoE output up to 95W
► Power pins: 4/5(+),7/8(-) and 1/2(+),3/6(-)
► Provide signal and PoE output, lightning protection 6KV
► Wide temperature design: -40℃ to +80℃
► Metal casing, waterproof, dustproof, IP67
► Sealing gasket past extension, bearing, corrosion, aging test
► Plug-and-play installation
Overview

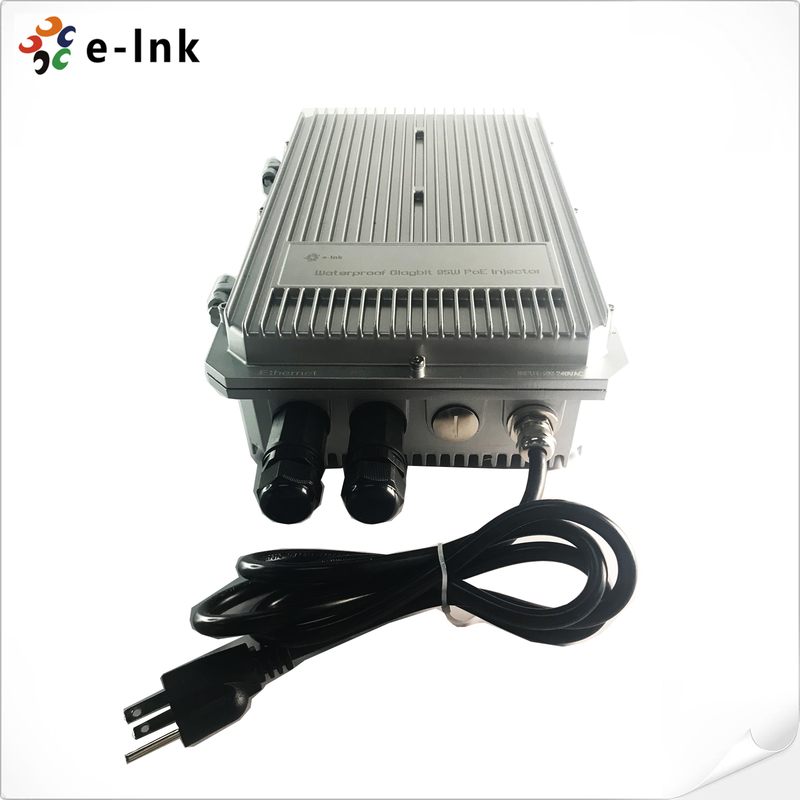

E-link LNK-IPOE-95W Industrial IP67-rated Single-port 802.3bt PoE Injector provides a maximum of up to 95 watts for each PoE output port, transmitting both the Gigabit Ethernet data and 802.3bt PoE power over the UTP cable. It is specifically designed for such outdoor powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.
Technical Indexes
|
Standards: |
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T |
|
Connector: |
2x M22 Shielded RJ-45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Input & Output |
|
|
Input Power: |
90~264VAC |
|
Output PoE Power: |
55VDC 1750mA |
|
Power Pins: |
4/5(+),7/8(-) and 1/2(+),3/6(-) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
Port: |
M22 Shielded RJ-45 |
|
Max. Power per Port: |
95W Max |
|
AC Surge Protection |
|
|
Line-Earth 1.2/50us (8/20us): |
6KV |
|
Line-Line 1.2/50us (8/20us): |
4KV |
|
PoE Surge Protection |
|
|
Protected line: |
1,2,3,4,5,6,7,8 |
|
Common mode surge protection(10/700us): |
6KV |
|
Differential mode surge protection (10/700us): |
1.5KV |
|
Mechanical |
|
|
Dimensions (LxWxH): |
304 x 184 x 75 mm (inner size) |
|
Weight: |
3.6Kg |
|
Casing: |
Aluminum Case |
|
Color: |
Silver |
|
Mounting Options: |
Pole-Mount |
|
Regulatory Approvals |
|
|
Safety Approvals: UL, CE |
|
|
EMI: FCC CFR47 Part 15, EN55024, EN55032 |
|
|
EMS: IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge) Power Port: ±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
|
|
Immunity: IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
|
Ordering Information
|
Model |
Description |
|
LNK-IPOE-95W |
95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector |
|
Mounting Options |
► Pole-mounted (installation kit needs to be purchased separately) |
|
LNK-POT-MBK |
Pole-Mount installation kit |
