제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: CE, FCC, IP67
Model Number: LNK-POE-2P
문서: E-link LNK-POE2P 100M Passi....0.pdf
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: 협상 가능
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Weight: |
0.25Kg |
Dimensions (WxDxH):: |
95 x 70 x 30 mm |
Operating Temperature:: |
-40°C to 80°C (-40°F to 176°F) |
Case: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power Consumption:: |
36W Max. |
Weight: |
0.25Kg |
Dimensions (WxDxH):: |
95 x 70 x 30 mm |
Operating Temperature:: |
-40°C to 80°C (-40°F to 176°F) |
Case: |
Aluminum Case |
Mounting Options:: |
DIN-Rail / Wall-mount |
Power Consumption:: |
36W Max. |
| Interface | Data pin: 1,2,3,6 Power pin: 4, 5, 7, 8 (12~57V) |
|---|---|
| Case of material | PVC |
| Network cable | T IA/EIA 568 Cat. 5 |
| Ethernet data rate | 10/100 Mbps |
| Ethernet cable connector | RJ-45 |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -40°C - 70°C (-40°F - 158°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
| Product Weight (g) | 55g |
| Dimensions (L x W x H (mm)) | 210 x 19 x 19 mm |
| Item | Description |
|---|---|

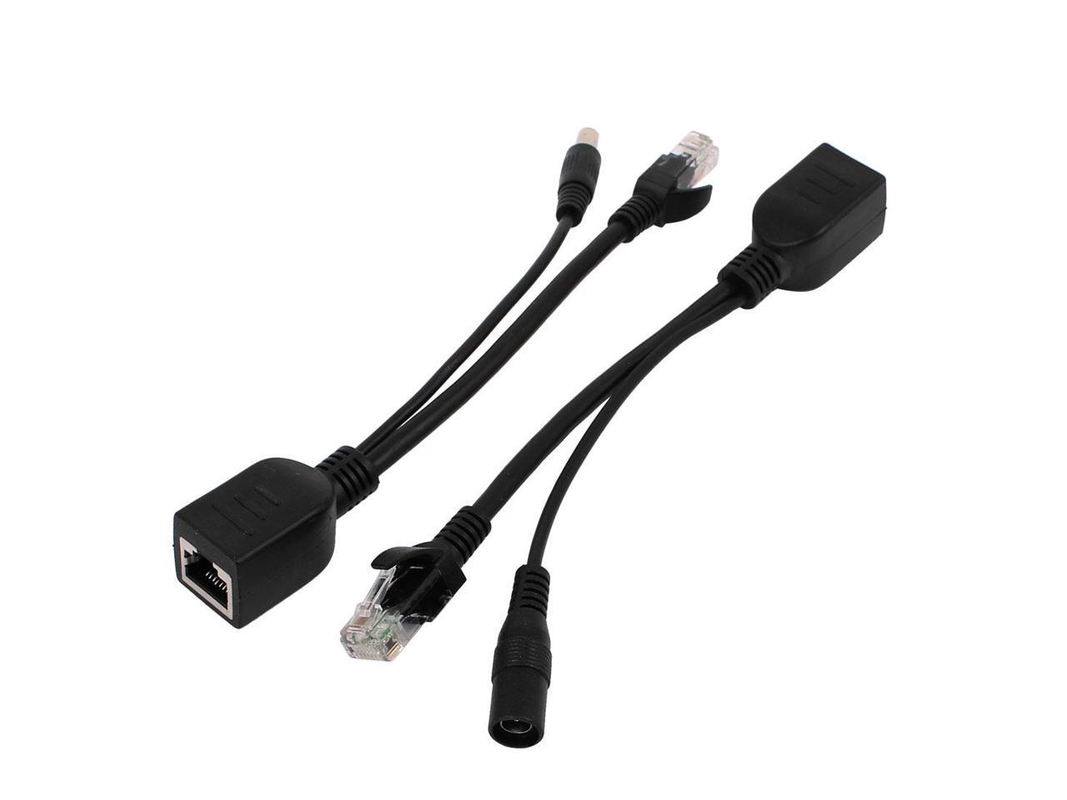

| LNK-POE-2P | Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector |
