제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: ISO9001, CE, FCC, RoHS
Model Number: LNK-SP1000
문서: E-link Intelligent CCTV Vid....0.pdf
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: 협상 가능
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Response time Ta: |
-1000Mbps |
MTBF: |
> 200,000 hrs |
Relative Humidity: |
5% to 95% non-condensing |
Operating Temperature: |
-20°C to 70°C (-4°F to 158°F) |
Installation: |
Floor-type or Rod-type |
Material: |
Cold-rolling plate |
Response time Ta: |
-1000Mbps |
MTBF: |
> 200,000 hrs |
Relative Humidity: |
5% to 95% non-condensing |
Operating Temperature: |
-20°C to 70°C (-4°F to 158°F) |
Installation: |
Floor-type or Rod-type |
Material: |
Cold-rolling plate |
Product Advantages
· Highly integration
· Modular design with Plug-and-play Built-in Transmission Card ( Ethernet Switches/ Media Converter/ HD-SDI/ EPON/ GPON), easy to manage, maintain and upgrade.
· Flexible deployment, convenient maintenance
· Different flexible Power Supply, DC48V/36V/24V/12V,AC24V Optional
· Standard Wiring: built-in line card, fiber splicing box and cable management grooves, neatness inside.
· Support independent operation, can display temperature, humidity, current and voltage locally
Overview

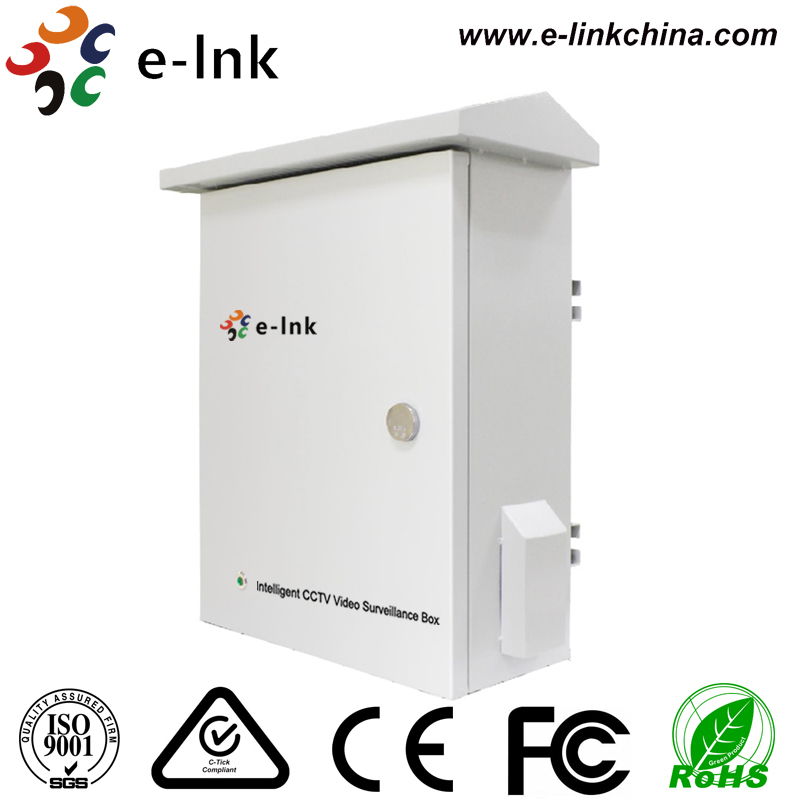

LNK-ICB001 series Intelligent CCTV Video Surveillance Box integrates cabinet, front-end information acquisition and remote control, series of sensors, power module, lightning protection, optical fiber communication, automatic reclosure and power control module card. It's easy to manage, maintain and upgrade.
Technical Indexes
|
Flexible Power Supply |
AC110~220V (Optional) |
|
|
AC24V (Optional) |
||
|
DC48V (Optional) |
||
|
DC36V (Optional) |
||
|
DC24V (Optional) |
||
|
DC12V (Optional) |
||
|
Air Switch |
Support (Optional) |
|
|
Circuit Breaker |
Support (Optional) |
|
|
Functions |
over-current, over-voltage, short-circuit protection |
|
|
Power Supply Unit - Automatic Reclosure |
||
|
Short-circuit protection |
Automatic reclosing leakage protector will cut off within 0.1s to guarantee equipment safety when current exceeds 3 times of rated current. |
|
|
Electric leakage protection |
Leakage initiating current is 30mA. Automatic reclosing leakage protector will cut off by -30m under electric leakage of 15～30mA. |
|
|
Over-current/overload protection |
Automatic reclosing leakage protector will maintain the current duration and value when current exceeds 1.15 times of rated current; |
|
|
Over-voltage protection |
Automatic reclosing leakage protector will cut off if supply voltage exceeds 280V±5V. (It can be adjusted according to user needs.) |
|
|
Under-voltage protection |
Automatic reclosing leakage protector will cut off if supply voltage is less than 150V±5V. (It can be adjusted according to user needs.) |
|
|
Detection before switching on |
Automatic reclosing leakage protector will detect line voltage before switching on. |
|
|
Automatic reclosure |
Automatic reclosing leakage protector will cut off instantly in case of line danger due to transient electric leakage or transient shock (such as thunder or socket arcing, etc) |
|
|
Manual ON/OFF performance |
Zero line shall be disconnected to firing line without output during electric leakage when pressing test key manually; |
|
|
Data Acquisition and Remote Control |
||
|
Detection function of cabinet status |
l Temperature/humidity detection l Cabinet door status detection l Illuminance detection in the Cabinet l Water leakage monitoring of the Cabinet |
|
|
Equipment detection functions in the cabinet |
l Fan operation status detection l Status detection of lightning protector l 220V strong current detection l Status detection of circuit breaker |
|
|
Remote control function |
l Alarm light brightness control l Fan control l Lighting lamp control l Circuit breaker control |
|
|
Fiber Optical Communication Unit |
||
|
Fiber |
1~2-Port 100M or 1000M Fiber Port |
|
|
Ethernet |
4~9-Port 10/100M or 10/100/1000M Ethernet Port |
|
|
Protocols |
TCP/IP, PPPOE, DHCP, ICMP, NAT |
|
|
Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3u 100Base-FX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX IEEE 802.3x Flow Control |
|
|
Lightning Protection |
||
|
Strong protection capability |
AC 220V strong current lightning protection module has surge leakage ability of the maximum discharging current, namely, 40kA (8/20us); Network lightning protection has voltage protection level Up: line-earth: 600V; line-line: 25V; It can bear C2:5kV/2.5kA complex wave test. |
|
|
AC 220V lightning protection unit characteristics |
Embedded transient over-current circuit breaker, telecommand alarm connector, invalidation detection indication, overheating circuit breaker, standard modular installation. |
|
|
Cabinet Unit (Mechanical) |
||
|
Material |
Cold-rolling plate |
|
|
Thickness |
2.0mm |
|
|
Protection level |
IP55 |
|
|
LCD display content |
Temperature, humidity, current, voltage |
|
|
Accessories |
Fan, LED lighting lamp, mechanical case door status detection switch, optical fiber fusion splice protector, optical fiber coupler |
|
|
Installation |
Floor-type or Rod-type |
|
|
Environmental |
||
|
Operating Temperature |
-20°C to 70°C (-4°F to 158°F) |
|
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
|
Relative Humidity |
5% to 95% non-condensing |
|
|
MTBF |
> 200,000 hrs |
|
|
Regulatory Approvals |
||
|
ISO9001 |
||
|
EN55022:2010+AC: 2011, Class A |
||
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||
|
EN 61000-3-3: 2013 |
||
|
EN55024:2010 |
||
|
IEC 61000-4-2: 2008 (ESD) |
||
|
IEC 61000-4-3: 2010 (RS) |
||
|
IEC 61000-4-4: 2012 (EFT) |
||
|
IEC 61000-4-5: 2014 (Surge) |
||
|
IEC 61000-4-6: 2013 (CS) |
||
|
IEC 61000-4-8: 2009 (PFMF) |
||
