제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
인증: ISO9001, CE, FCC, RoHS

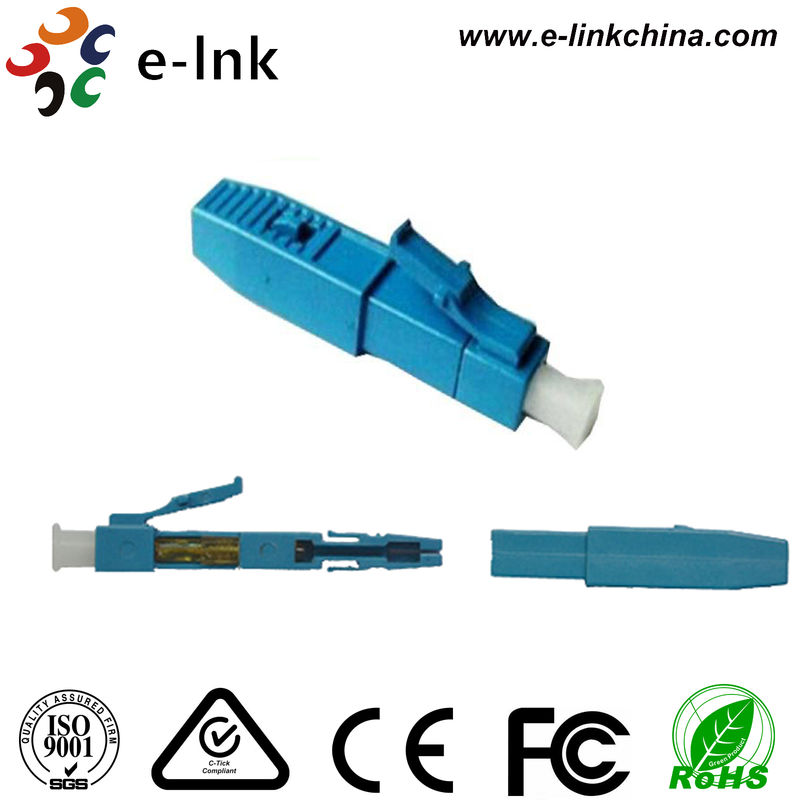

Model Number: LC/UPC SM Fast Connector
문서: E-link LC SM Fast Connector....0.pdf
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: 협상 가능
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Tensile strength: |
>50 N |
Fastening strength of naked fiber holder: |
>10 N |
Fastening strength of naked fiber: |
>5 N |
Return loss: |
≥50dB |
Insert loss: |
≤ 0.3dB（1310nm & 1550nm） |
Operation time: |
About 120s（no fiber cut） |
Tensile strength: |
>50 N |
Fastening strength of naked fiber holder: |
>10 N |
Fastening strength of naked fiber: |
>5 N |
Return loss: |
≥50dB |
Insert loss: |
≤ 0.3dB（1310nm & 1550nm） |
Operation time: |
About 120s（no fiber cut） |
Product Advantages
l One-piece connector or attenuator
l Inside ferrule with fiber stuff and pre-polishing
l Field installable, quich connection, easy for operation
l No epoxy, no polishing, no adhesive, no electricity required
l High performance and high reliability
l Simply and easy fixed fiber or cable
l Cable Tensile complied with Telcordia GR-326-CORE
Overview
Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.
Technical Indexes
|
ITEM |
Technical Parameters |
|
Applicable for |
Drop cable. Indoor cable |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
900μm |
|
Fiber mode |
Single mode |
|
Polishing Type |
UPC or APC |
|
Operation time |
About 120s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≥50dB |
|
Fastening strength of naked fiber |
>5 N |
|
Fastening strength of naked fiber holder |
>10 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40～+75℃ |
|
On-line tensile strength (20 N) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
