제품 세부 정보
Place of Origin: China
브랜드 이름: E-link
Model Number: LNK-PDH-E8 Series
문서: E-link 8E1 PDH Mux Datashee....0.pdf
지불 및 배송 조건
Minimum Order Quantity: 1 pcs
가격: 협상 가능
Packaging Details: Carton Packaging
Delivery Time: 3-12 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability: 1000 pcs/month
Working Humidity: |
5%~95 % (no condensation) |
Storage Humidity: |
5%~95 % (no condensation) |
Operating Temperature: |
-10°C ~ 50°C |
Storage Temperature: |
-40°C ~ 80°C |
Product size: |
19’’ 1U |
Power supply: |
AC180V ~ 260V；DC –48V；DC +24V |
Working Humidity: |
5%~95 % (no condensation) |
Storage Humidity: |
5%~95 % (no condensation) |
Operating Temperature: |
-10°C ~ 50°C |
Storage Temperature: |
-40°C ~ 80°C |
Product size: |
19’’ 1U |
Power supply: |
AC180V ~ 260V；DC –48V；DC +24V |

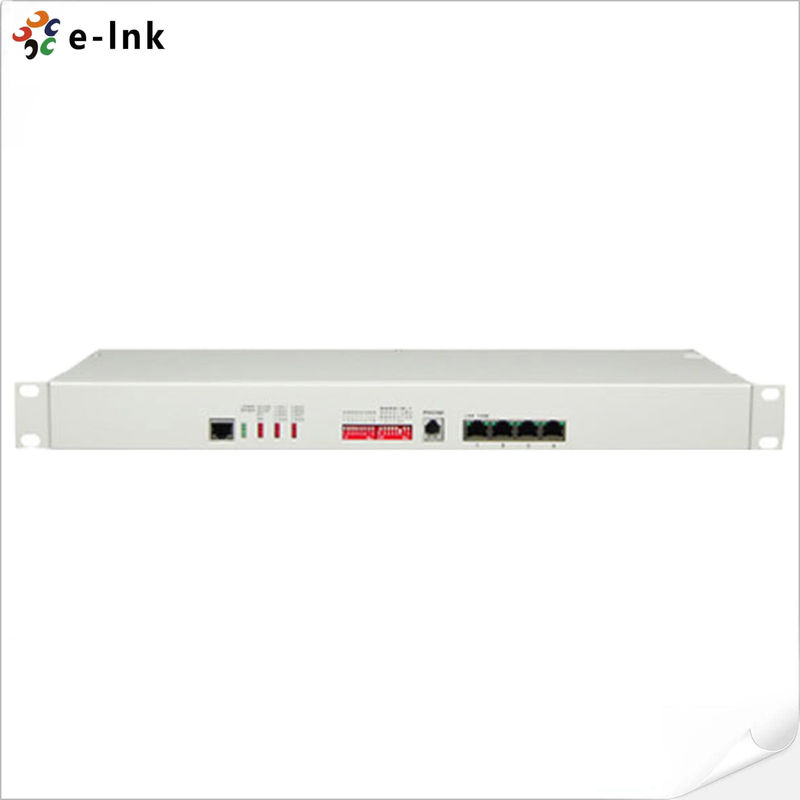

8E1 +1 Fiber PDH Multiplexer
Advantages
· Based on self -copyright IC
· Modular wide dynamic optical detector
· 1 Channel PCM digital business phone (optional)
· The device provides master optical fiber interface and backup optical fiber interface, Dual Optical Port backup function ensures that the work will never break (optional)
· E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
· When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED
· The local device can view the remote device working condition
· Provide command the remote interface Loop Back, ease line maintenance
· The transmission distance is up to 2-120Km without interruption
· AC 220V, DC-48V, DC24V can be optional
· DC-48V/DC24V power supply polarity detection function, Polarity-Free
Overview
This device provides 1-8Channel E1 interface, 1Channel PCM digital hotline phone (optional). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, and small size.
Technical Indexes
|
Parameter |
Specification |
|
Fiber |
|
|
Multi-mode Fiber |
|
|
Fiber Type |
50/125um, 62.5/125um |
|
Maximum transmission distance |
5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm |
|
Transmitting power |
-12dBm (Min) ~-9dBm (Max) |
|
Receiver sensitivity |
-28dBm (Min) |
|
Link budget |
16dBm |
|
Single-mode Fiber |
|
|
Fiber Type |
8/125um, 9/125um |
|
Maximum transmission distance |
40Km |
|
Transmission distance |
40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km) |
|
Wave Length |
1310nm |
|
Transmitting power |
-9dBm (Min) ~-8dBm (Max) |
|
Receiver sensitivity |
-27dBm (Min) |
|
Link budget |
18dBm |
|
E1 Interface |
|
|
Interface Standard |
comply with protocol G.703 |
|
Interface Rate |
n*64Kbps±50ppm |
|
Interface Code |
HDB3 |
|
E1 Impedance: |
75Ω (unbalance), 120Ω (balance) |
|
Jitter tolerance |
In accord with protocol G.742 and G.823 |
|
Allowed Attenuation |
0~6dBm |
|
Power |
|
|
Power supply |
AC180V ~ 260V；DC –48V；DC +24V |
|
Power consumption |
≤10W |
|
Dimension |
|
|
Product size |
19’’ 1U |
|
Working environment |
|
|
Working temperature |
-10°C ~ 50°C |
|
Working Humidity |
5%~95 % (no condensation) |
|
Storage temperature |
-40°C ~ 80°C |
|
Storage Humidity |
5%~95 % (no condensation) |
