ABS Box PLC Splitter
Advantages
ü Low Insertion Loss (IL)
ü High isolation
ü Low Polarization Dependent Loss (PDL)
ü Compact design
ü Wide operating wavelength range
ü Good channel-to-channel uniformity
ü High reliability and high stability
ü Telcordia GR-1209-CORE-2001 compliant
ü Telcordia GR-1221-CORE-1999 compliant
ü YD/T-1272Q compliant
ü Q/CT-2295 compliant
ü RoHS-6 compliant (lead free)
Overview

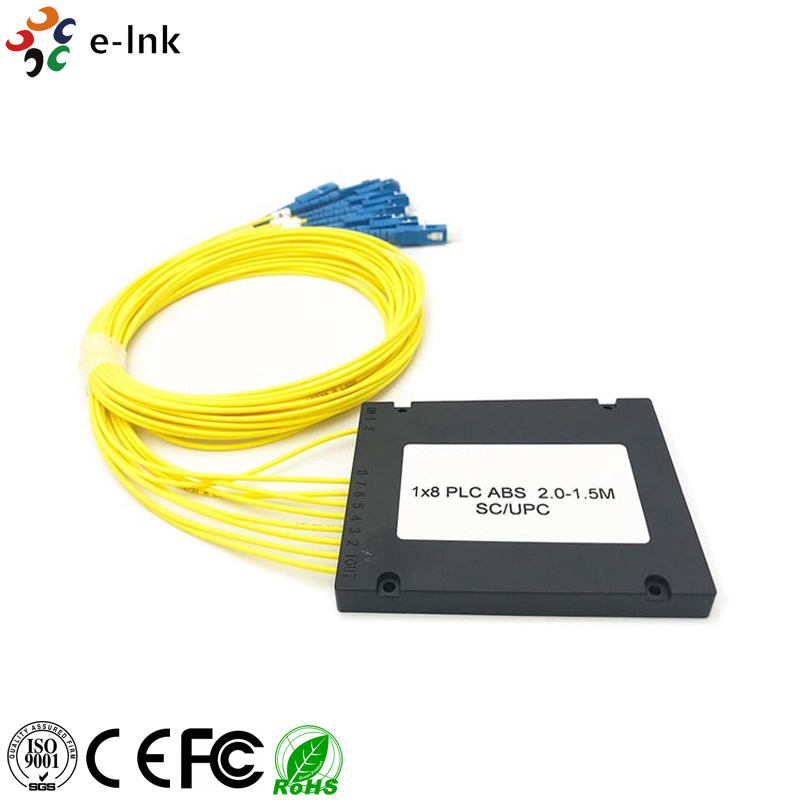

The E-link ABS box PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with plastic ABS box package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. E-link provides a series of customized ABS box PLC splitters to meet different requirements on port configuration, cable type, fiber length, input connector, and output connector.
Technical Indexes
|
Parameters |
1×N ABS Box PLC Splitters |
|||||
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Port Configuration |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Max Insertion Loss (dB) (P/S Grade) |
4.1/4.3 |
7.4/7.6 |
10.5/10.8 |
13.8/14.0 |
16.8/17.2 |
20.8/21.3 |
|
Max Loss Uniformity (dB) |
0.6 |
0.7 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Max PDL (dB) |
0.2 |
0.25 |
0.35 |
|||
|
Min Return Loss (dB) |
55 |
|||||
|
Min Directivity (dB) |
55 |
|||||
|
Max Wavelength Dependent Loss (dB) |
0.5 |
0.8 |
1.0 |
|||
|
Max Temperature Stability (dB) |
0.5 |
|||||
|
Operating Temperature (℃) |
-5～75 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
|
Device Dimension L×W×H (mm) |
100×80×10 |
120x80x18 |
140x115x18 |
|||
|
Parameters |
2×N ABS Box PLC Splitters |
|||||
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Port Configuration |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Max Insertion Loss (dB) |
4.5 |
7.9 |
11.3 |
14.7 |
17.8 |
21.3 |
|
Max Loss Uniformity (dB) |
0.9 |
1.0 |
1.2 |
1.5 |
1.8 |
2.2 |
|
Max PDL (dB) |
0.3 |
0.35 |
0.4 |
|||
|
Min Return Loss (dB) |
55 |
|||||
|
Min Directivity (dB) |
55 |
|||||
|
Max Wavelength Dependent Loss (dB) |
0.5 |
0.8 |
1.0 |
|||
|
Max Temperature Stability (dB) |
0.5 |
|||||
|
Operating Temperature (℃) |
-5～75 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
|
Device Dimension L×W×H (mm) |
100×80×10 |
120x80x18 |
140x115x18 |
|||
Ordering Information
|
LNK-xxx-Px- |
xx- |
xx- |
x |
x |
|
ABS Box PLC Splitter |
Fiber Type |
Fiber Length |
Input Connector |
Output Connector |
|
PS: 100×80×10 |
09=0.9mm loose tube |
10=1.0m |
0=None |
0=None |
|
PM: 120×80×18 |
20=2.0mm loose tube |
15=1.5m |
1=FC/UPC |
1=FC/UPC |
|
PL: 145×115×18 |
30=3.0mm loose tube |
20=2.0m |
2=FC/APC |
2=FC/APC |
|
xxx: |
|
25=2.5m |
3=SC/UPC |
3=SC/UPC |
|
102=1×2 |
|
... |
4=SC/APC |
4=SC/APC |
|
.. |
|
|
5=LC/UPC |
5=LC/UPC |
|
264=2×64 |
|
|
6=LC/APC |
6=LC/APC |
