제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, FCC, RoHS
Model Number: LNK-AP80
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: 협상 가능
포장 세부 사항: 산업용 POE 스위치 표준 카톤 포장
배달 시간: 7-10 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 100000pcs/월
관리: |
펌웨어 GUI, 원격 관리, WLAN 컨트롤러, 클라우드 관리 시스템 |
작동 온도: |
-40 ~ 50 50 |
작동 습도 :: |
10%~90% |
시스템 요구 사항: |
Microsoft Windows 98SE, NT, 2000, XP, Vista ™ 또는 Windows 7, Windows 8, Mac OS, Netware, Unix 또는 Linu |
칩셋: |
Atheros QCA9563 + QCA9882 + QCA8334 |
플래시: |
16MB |
관리: |
펌웨어 GUI, 원격 관리, WLAN 컨트롤러, 클라우드 관리 시스템 |
작동 온도: |
-40 ~ 50 50 |
작동 습도 :: |
10%~90% |
시스템 요구 사항: |
Microsoft Windows 98SE, NT, 2000, XP, Vista ™ 또는 Windows 7, Windows 8, Mac OS, Netware, Unix 또는 Linu |
칩셋: |
Atheros QCA9563 + QCA9882 + QCA8334 |
플래시: |
16MB |

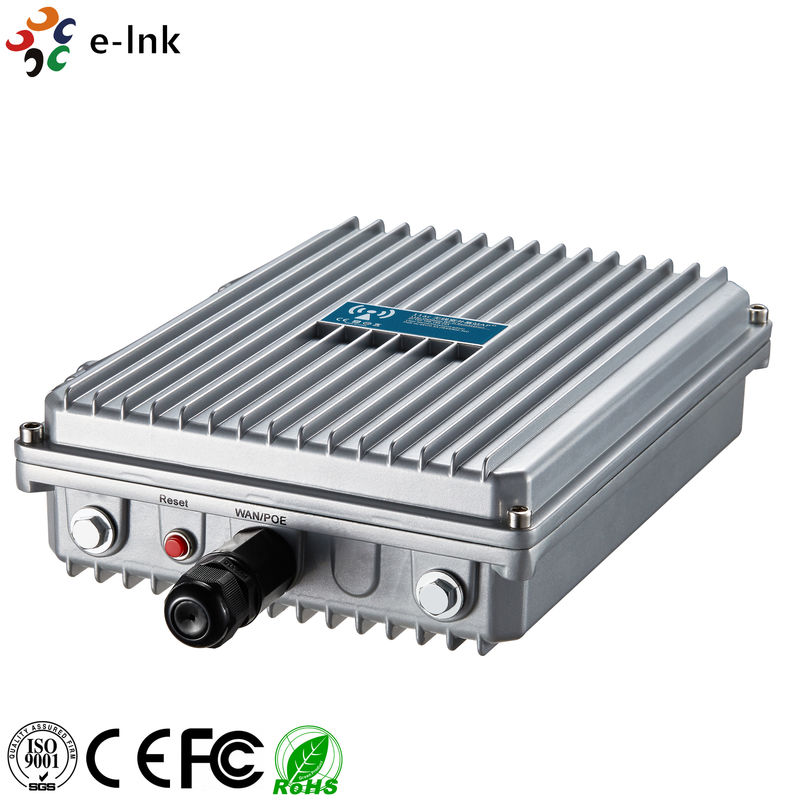

1200Mbps High Power Outdoor Wireless AP
Product Advantages
l Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
l 1 10/100/1000Mbps WAN Port,faster Ethernet.
l 1000mW high power, can connect with external antenna for stronger signal strength and more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
l Support IEEE 802.3at PoE standard
l Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
l Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
l With function of build in firewall, IP filter, URL filter and MAC filter
l Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
l Support DDNS, VPN pass through, Port forwarding and DMZ host
l Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
Overview
LNK-AP80 is an Qualcomm Solution 11ac high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Technical Indexes
|
Hardware |
||
|
Chipset |
Atheros QCA9563 + QCA9882 +QCA8334 |
|
|
Standard |
802.11ac/b/g/n, MIMO technology |
|
|
Memory |
128MB DDR2 RAM |
|
|
Flash |
16MB |
|
|
Interface |
1 * 10/100 /1000Mbps RJ45 WAN Port |
|
|
1 * Reset button, press 15 seconds to revert to default setting |
||
|
Antenna |
4PCS SMA connector |
|
|
Power consumption |
48V PoE<30W |
|
|
Weight |
4KG |
|
|
RF Data |
||
|
Frequency |
2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac |
|
|
2.4GHz: 2.312GHz to 2.4835GHz 5GHz: 5.020 - 6.1000 GHz |
||
|
Modulation |
OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
|
|
DSSS = DBPSK, DQPSK, CCK |
||
|
Throughput |
1200 Mbps |
|
|
RF Power |
2.4G: 11n @MCS7:26±2DB, @MCS0:28±2DB. 11g @54M:27±2DB, @6M:29±2DB. 11b @11M:28±2DB, @1M:30±2DB. 5.8G: 11a @54M 23.5±2DB, @6M:26.5±2DB. 11n @HT20:MCS7 22.5±2DB, @MCS0:25.5±2DB. 11ac@HT80:MCS9 20.5±2DB, @MCS0:23.5±2DB. |
|
|
Receive Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n@HT20: -70dbm@MCS7, -90dbm@MCS0. 11ac@HT80:-60dbm@MCS9, -86dbm@MCS0. |
|
|
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB |
|
|
PPM |
±20ppm |
|
|
Max Users |
128+ |
|
|
Firmware Features: |
||
|
Operation mode |
Wireless AP, Gateway, WISP, Wi-Fi Repeater |
|
|
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
|
|
Wireless Security |
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
|
|
SSID |
Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) |
|
|
Firewall |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter |
|
|
Protocols |
IPv4 |
|
|
Others: |
||
|
Package Contents |
1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
|
|
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
|
|
Environment |
Operating Temperature: -40~50 ℃, Storage Temperature: -40~70 ℃ |
|
|
Management |
Firmware GUI , Remote Management, WLAN Controller, Cloud Management System |
|
Ordering Information
|
Model |
Description |
|
LNK-AP80-1200 |
1200Mbps High Power Outdoor Wireless AP without antenna: User Manual, Install accessory, LAN cable |
|
LNK-AP80-1200A |
1200Mbps High Power Outdoor Wireless AP with antenna: 2*2.4G 8dBi omni antenna, 2*5.8G 12dBi omni antenna, User Manual, Install accessory, LAN cable |
