제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
모델 번호: LNK-CSFP-10GXX-80
지불 및 배송 조건
최소 주문 수량: 1 개 PC
가격: 협상 가능
포장 세부 사항: 상자 포장
배달 시간: 3-12 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 1000 PCS/월
보관 온도보관 온도: |
-40 ~ 85 ° C |
최대 공급 전압: |
-0.5 ~ 4V |
상대 습도: |
0 ~ 85% |
케이스 조작 온도: |
0 ~ 70 ° C |
공급전류: |
600mA |
전력 소비: |
2W |
보관 온도보관 온도: |
-40 ~ 85 ° C |
최대 공급 전압: |
-0.5 ~ 4V |
상대 습도: |
0 ~ 85% |
케이스 조작 온도: |
0 ~ 70 ° C |
공급전류: |
600mA |
전력 소비: |
2W |
Advantages
Ø Supports 9.95 to 11.3Gb/s bit rates
Ø Hot-Pluggable
Ø Duplex LC connector
Ø 1470～1610nm CWDM EML transmitter, APD photo-detector
Ø SMF links up to 80km
Ø 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Ø Power Supply: +3.3V
Ø Power consumption<2W
Ø Temperature Range: 0~ 70°C
Ø RoHS compliant
Overview

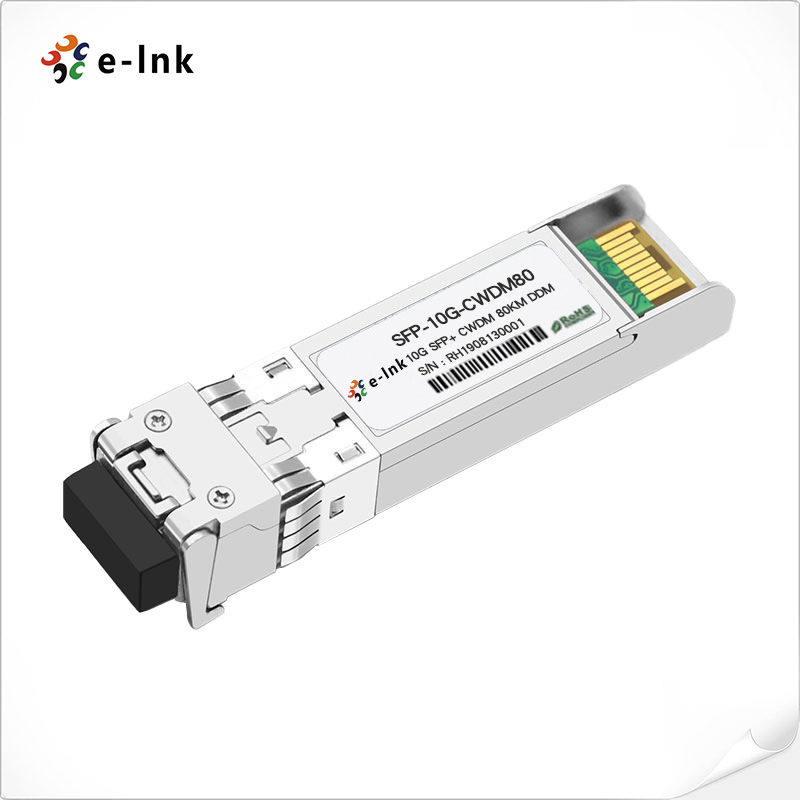

E-LINK's LNK-CSFP-10Gxx-80 is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The LNK-CSFP-10Gxx-80 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1470 ～ 1610nm CWDM EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 80km links. The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Technical Indexes
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
λ-6.5 |
|
λ+6.5 |
nm |
|
|
spectral width |
△λ |
|
|
1 |
nm |
|
|
Average Optical Power |
Pavg |
0 |
|
+4 |
dBm |
1 |
|
Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
|
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
2 |
|
Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
3 |
|
Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
|
Receiver Section: |
||||||
|
Center Wavelength |
λr |
1260 |
|
1620 |
nm |
|
|
Receiver Sensitivity (OMA) |
Sen |
|
|
-23 |
dBm |
4 |
|
Stressed Sensitivity (OMA) |
SenST |
|
|
-21 |
dBm |
4 |
|
Los Assert |
LOSA |
-34 |
|
- |
dBm |
|
|
Los Dessert |
LOSD |
|
|
-24 |
dBm |
|
|
Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
Overload |
Sat |
-7 |
|
|
dBm |
5 |
|
Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
Application
Ø 10GBASE-ZR/ZW Ethernet
Ø Sonet OC-192/SDH
Ø 10G Fiber channel
Ø CWDM Networks
