제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
모델 번호: lnk-fvga
지불 및 배송 조건
최소 주문 수량: 1 개 PC
가격: 협상 가능
포장 세부 사항: 상자 포장
배달 시간: 3-12 근무일
지불 조건: L/C, T/T, Western Union, MoneyGram, PayPal
공급 능력: 1000 PCS/월
온도: |
작동 : -5 5 ~ +70 ℃ |
데이터 입력 스윙 차동: |
전력 어댑터 : DC 5V/2A |
전력 소산: |
최대 6W |
습기: |
운영 : 5% ~ 90% |
차원: |
165*120*27mm 19인치 4U 랙 |
보증: |
1 년 무료 보증, 평생 유지 보수 |
온도: |
작동 : -5 5 ~ +70 ℃ |
데이터 입력 스윙 차동: |
전력 어댑터 : DC 5V/2A |
전력 소산: |
최대 6W |
습기: |
운영 : 5% ~ 90% |
차원: |
165*120*27mm 19인치 4U 랙 |
보증: |
1 년 무료 보증, 평생 유지 보수 |
Advantages
► Transmits VGA video signals up to 10km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio unidirectional transmission;
► Support transmitter one channel signal output;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
Overview
The LNK-FVGA Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, 1 Ch RS232 signal and external 1 duplex audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
VGA |
|
Maximum pixel clock |
380MHz |
|
|
Resolution |
1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz |
|
|
Impedance |
75Ω |
|
|
Audio |
Interface |
3.5mm earphone seat |
|
Format |
44.1K,48K,96K,176K,192K |
|
|
Signal type |
Stereo |
|
|
RS232 |
Interface |
Industrial terminal |
|
Signal direction |
Bidirectional |
|
|
Baud rate |
Self-adaptive, Max:115200bps |
|
|
Data bits |
8 |
|
|
KVM |
K/M TO PC |
USB connect to PC |
|
KEYBOARD/MOUSE |
USB connect to keyboard and mouse |
|
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
Single-mode single fiber |
|
|
Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
2.97Gbps |
|
|
Transmission distance |
standard 10km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 6W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
165*120*27mm 19inch 4U rack |
|
|
The warranty |
1 year free warranty, life-long maintenance |
|
Ordering Information
|
Model |
Details |
|
LNK-FVGA-T |
1080P VGA Fiber Optic Extender Transmitter |
|
LNK-FVGA-R |
1080P VGA Fiber Optic Extender Receiver |
|
LNK-R16-4-D |

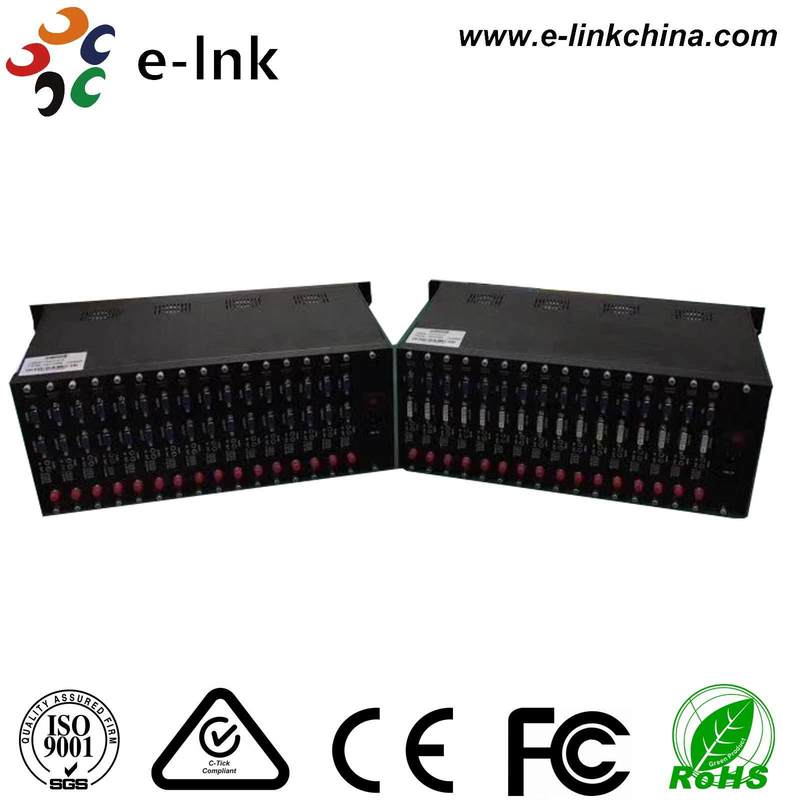

16-slot, dual power supply-AC110-220V-19''4U- blackfor card-type media converter |
