제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, ROHS, FCC
모델 번호: lnk-poe300at
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: US$18-US$25
포장 세부 사항: HDMI 파이버 POE 인젝터 표준 상자 포장
배달 시간: 근무일 1-3 일
지불 조건: T/T, Western Union, Moneygram, PayPal
공급 능력: 1000/월
전향 필터 속도:: |
1,488,000pps (1000mbps) |
케이블 링: |
10/100/1000Base-T : Cat5 또는 위쪽에 |
최대 거리:: |
IEEE802.3AF/AT POE (30W) : 2- 쌍 UTP 고양이. 3, 4, 5, 최대 100m (328ft) |
입력 전압 범위 :: |
100-240V AC @50/60Hz. |
저장 온도 :: |
-20 ° C ~ 70 ° C (-4 ° F ~ 158 ° F) |
치수 (W × D × H) :: |
145 x 58 x 39mm |
전향 필터 속도:: |
1,488,000pps (1000mbps) |
케이블 링: |
10/100/1000Base-T : Cat5 또는 위쪽에 |
최대 거리:: |
IEEE802.3AF/AT POE (30W) : 2- 쌍 UTP 고양이. 3, 4, 5, 최대 100m (328ft) |
입력 전압 범위 :: |
100-240V AC @50/60Hz. |
저장 온도 :: |
-20 ° C ~ 70 ° C (-4 ° F ~ 158 ° F) |
치수 (W × D × H) :: |
145 x 58 x 39mm |

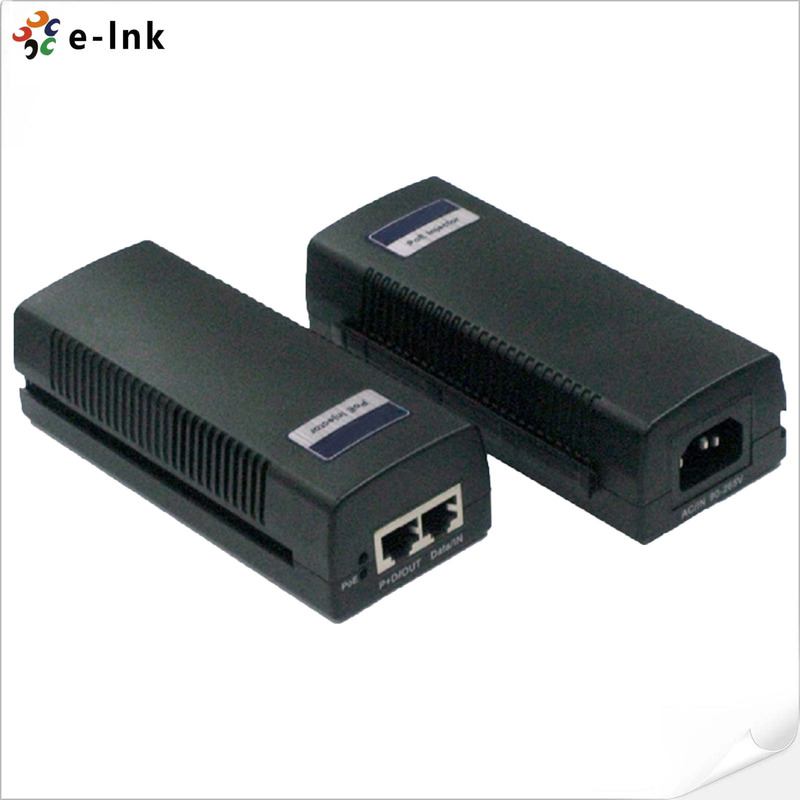

Model : LNK-POE300AT
Overview
Features
► Up to 30W of PoE Power
► Compliant with IEEE802.3af/at Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Low No Load Power Consumption < 0.5W
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Plug & Play, no configuration required
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
► Injects 48V DC through a CAT 5 cable, use all 2 pairs into remote devices such as wireless AP, IP phone, web camera and other functions
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
IEEE802.3af/at PoE (30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz. |
|
Output Voltage: |
DC 48V |
|
Power Consumption: |
30 watts max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
IEEE 802.3at |
|
|
Port: |
RJ45 |
|
Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
|
PoE Power Output |
DC 48V/30-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
145 x 58 x 39mm |
|
Weight: |
0.25Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-POE300AT |
PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3at 30W |
Application
