제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC, RoHS,
모델 번호: LNK-MN-OEO-10GSS
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: Negotiated
포장 세부 사항: 표준 내보내기 패키지
배달 시간: 5-12 일
지불 조건: T/T, PayPal
공급 능력: 1000pcs/입
치수 (w x h x d): |
58 (W) × 20 (H) × 90 (L) (mm) |
장비 기능: |
3R 중계기 |
전송 속도: |
8.5Gb/s-11.7Gb/s |
파장: |
850nm/1310nm/1550nm |
전환 수단: |
컷 스루 모드 |
입력 전압: |
DC 5V~12V |
치수 (w x h x d): |
58 (W) × 20 (H) × 90 (L) (mm) |
장비 기능: |
3R 중계기 |
전송 속도: |
8.5Gb/s-11.7Gb/s |
파장: |
850nm/1310nm/1550nm |
전환 수단: |
컷 스루 모드 |
입력 전압: |
DC 5V~12V |

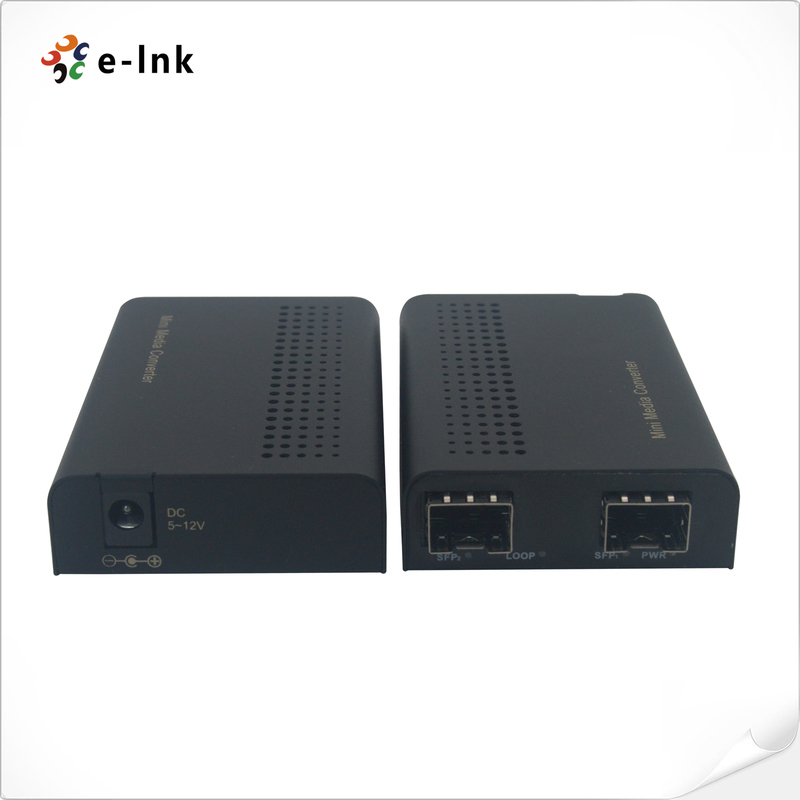

Mini 10G OEO Media Converter (3R Repeater) Advantage
► Support Loop back
► Support Jumbo Frame
► Transparent Transport and very low delay
► Support ITUT prescribed DWDM/CWDM wavelength,and can also display it's DDM function.
► 3R function (Regeneration, Reshaping, Retiming)
► Support hot plugging
► Support 1U Rack (12 channel) and standalone use
► Full State Led display
► Easy installation
Mini 10G OEO Media Converter (3R Repeater) Overview
E-link Mini-type 10G (8.5G~11.7G) OEO Converter (3R Repeater) is connection between fiber to
fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance
transmission. The OEO is for network backbone(SAN, LAN, MAN).
Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet etc. And the OEO can
be applied in Telecommunication room, R&D laboratory, Data center, and etc.
Support 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.
|
Performance Data |
Technical Indexes |
|
Equipment function |
3R Repeater |
|
Transmission Speed |
8.5Gb/s-11.7Gb/s |
|
Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|
|
SFP+ to SFP+ |
|
Transmission Distance |
SFP+ module: up to 80km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Power Requirement |
Rack-mountable : AC 85 ～ 220V Standalone: DC 5~12V Power consumption: ≤4W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
|
Dimension |
Standalone :58 (W) x 20 (H) x 90 (L) (mm) |
Mini 10G OEO Media Converter (3R Repeater) Ordering Information
|
Model |
Description |
|
LNK-MN-OEO-10GSS |
Mini-type 10G OEO Converter (3R Repeater) (SFP+ to SFP+) |
