제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC, RoHS
모델 번호: LNK-MN-100MC-SC
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: Negotiated
포장 세부 사항: 표준 내보내기 패키지
배달 시간: 5-12 일
지불 조건: T/T, PayPal
공급 능력: 1000pcs/입
치수: |
58 밀리미터 (W)×20mm (H)×90 밀리미터 (L) |
액세스 모드: |
10/100Mbps |
파장: |
850nm/1310nm/1550nm |
입력 전압: |
DC 5V~12V |
전원은 소실합니다: |
<3W |
작동 온도: |
0~50℃ |
치수: |
58 밀리미터 (W)×20mm (H)×90 밀리미터 (L) |
액세스 모드: |
10/100Mbps |
파장: |
850nm/1310nm/1550nm |
입력 전압: |
DC 5V~12V |
전원은 소실합니다: |
<3W |
작동 온도: |
0~50℃ |

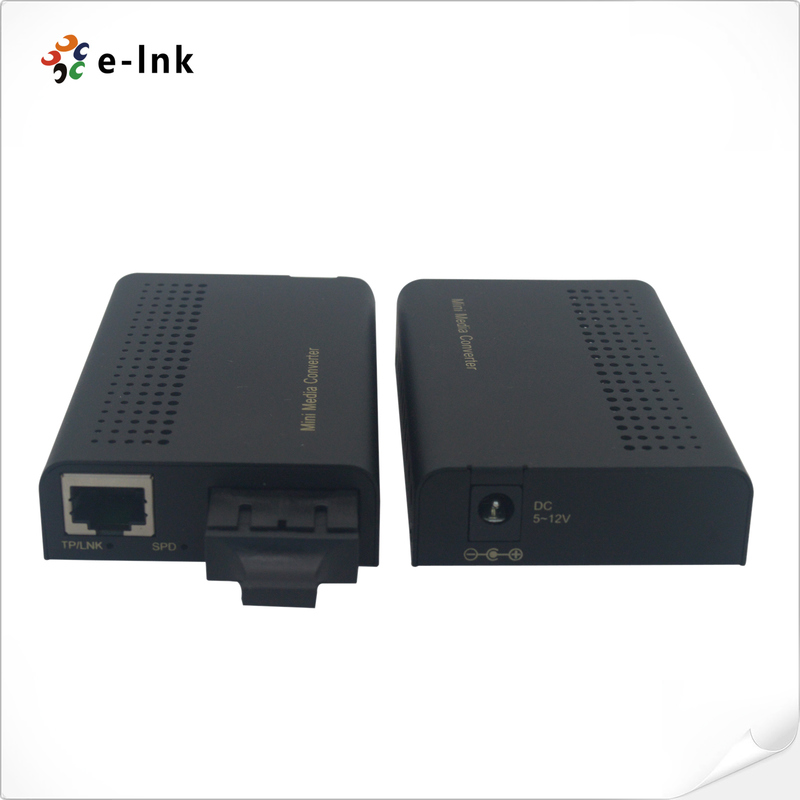

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Advantage
► 10/100Base-TX UTP to 100Base-FX fiber media converter
► Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards
► SC Fiber Port
► DIP switch to set different configuration
► LFP (Link Fault Pass-through) support
► Support jumbo frame
► Compact package size
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Overview
The mini 10/100Base-TX to 100Base-FX media converter is fully compliant with IEEE802.3 10Base-T,
IEEE802.3u 100Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control
for full and half duplex operation, etc.
A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the
different operating mode (UTP port speed 10M or100M, full or half duplex mode, pass through mode,
LFP enable or disable).
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
100Base-FX |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Multi-mode: |
|
Single mode: |
|
|
Cat-5 twisted pairs: 100m |
|
|
Conversion means |
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; |
|
Half duplex: back pressure |
|
|
Input voltage |
DC 5V~12V |
|
|
<3W |
|
Operating temperature |
0~50ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Ordering Information
|
Item |
Description |
|
LNK-MN-100MC-SC |
Mini-type 10/100Base-TX to 100Base-SX Media Converter, Multi mode, 1310nm, SC, 2KM, standalone, external power adaptor |
|
LNK-MN-100MC-SC-20 |
Mini-type 10/100Base-TX to 100Base-FX Media Converter, Single Mode, 1310nm, SC, 20km, standalone, external power adaptor |
