제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: CE, FCC, RoHS，ISO9001
모델 번호: LNK-FS-LC 시리즈
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: Negotiated
포장 세부 사항: 표준 내보내기 패키지
배달 시간: 5-12 일
지불 조건: T/T, PayPal
공급 능력: 1000pcs/입
광섬유 지름: |
125μm (657A와 657B) |
타이트한 버퍼 직경: |
900μm |
섬유 모드: |
단일 모드 |
연마 유형: |
UPC 또는 자동 위상 조정 |
작동 시간: |
약 120 년대 (섬유 절단 없음) |
사용하는 온도: |
-40°C+75°C |
광섬유 지름: |
125μm (657A와 657B) |
타이트한 버퍼 직경: |
900μm |
섬유 모드: |
단일 모드 |
연마 유형: |
UPC 또는 자동 위상 조정 |
작동 시간: |
약 120 년대 (섬유 절단 없음) |
사용하는 온도: |
-40°C+75°C |

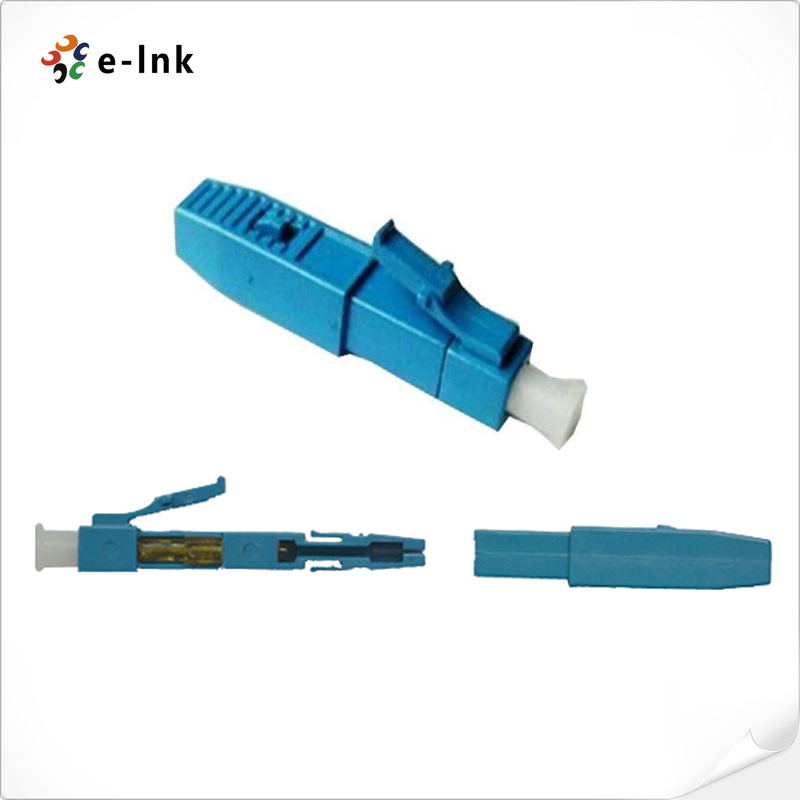

LC/UPC SM Fast Connector Advantage
l One-piece connector or attenuator
l Inside ferrule with fiber stuff and pre-polishing
l Field installable, quich connection, easy for operation
l No epoxy, no polishing, no adhesive, no electricity required
l High performance and high reliability
l Simply and easy fixed fiber or cable
l Cable Tensile complied with Telcordia GR-326-CORE
LC/UPC SM Fast Connector Overview
Field Assembly Optical Connector (FAOC), or Fast connector is a perfect solution for filed working
and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly
and stable performance. When engineers work in field for installation, maintenance, repair of optical
fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing.
LC/UPC SM Fast Connector is designed inside ferrule with fiber stuff and pre-polishing in the factory.
It provides a perfect ferrule end face quality. This has great help to protect user’s equipment interface
and improves the connector loss.
|
ITEM |
Technical Parameters |
|
Applicable for |
Drop cable. Indoor cable |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
900μm |
|
Fiber mode |
Single mode |
|
Polishing Type |
UPC or APC |
|
Operation time |
About 120s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
≥50dB |
|
Fastening strength of naked fiber |
>5 N |
|
Fastening strength of naked fiber holder |
>10 N |
|
Tensile strength |
>50 N |
|
Using temperature |
-40～+75℃ |
|
On-line tensile strength (20 N) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
LC/UPC SM Fast Connector Application
l Optical Distribution Frame
l Optical Network Equipments
l FTTH, CATV
