제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, ROHS, FCC
모델 번호: LNK-WP301
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: US$175-US$189
포장 세부 사항: HDMI 파이버 POE 인젝터 표준 상자 포장
배달 시간: 근무일 1-3 일
지불 조건: T/T, Western Union, Moneygram, PayPal
공급 능력: 1000/월
입력 :: |
12~48VDC |
파워 핀 :: |
4/5 (+), 7/8 (-) |
데이터 속도 :: |
10/100/1000Mbps |
작동 고도:: |
최대 5000mer |
차동 모드 서지 보호(10/700us):: |
1.5kV |
크기(LxWxH):: |
260mm x 210mm x 80mm |
입력 :: |
12~48VDC |
파워 핀 :: |
4/5 (+), 7/8 (-) |
데이터 속도 :: |
10/100/1000Mbps |
작동 고도:: |
최대 5000mer |
차동 모드 서지 보호(10/700us):: |
1.5kV |
크기(LxWxH):: |
260mm x 210mm x 80mm |
Model : LNK-WP301
Product Description & Overview

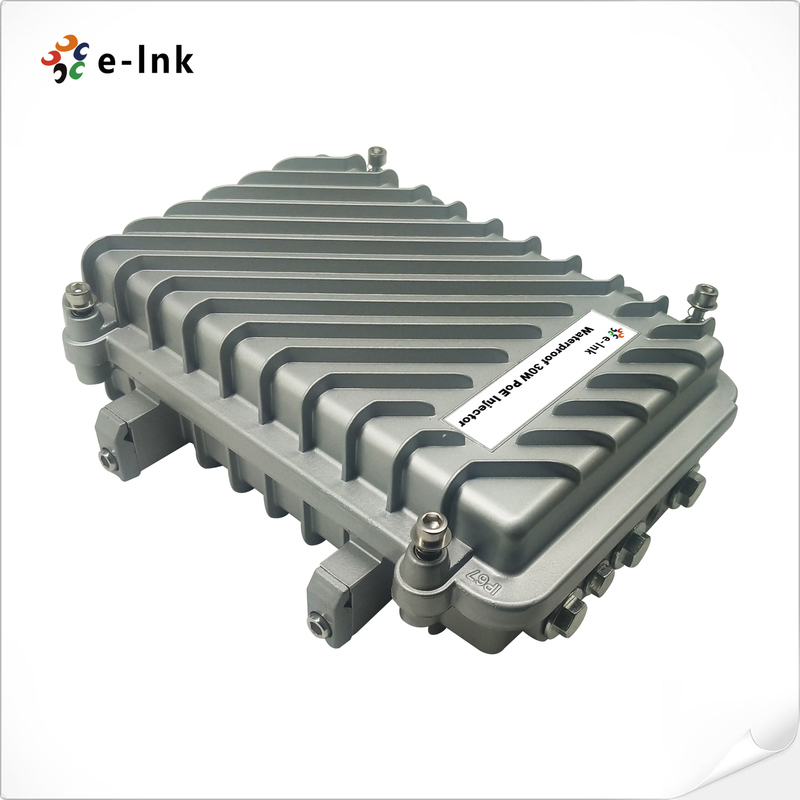

The LNK-WP301 represents a professional-grade Outdoor Waterproof Industrial 30W Gigabit PoE Injector
engineered for demanding environmental applications. This robust power sourcing equipment delivers IEEE
802.3at PoE+ compliance with 30W maximum output through 2-pair power delivery, while incorporating
advanced 6KV surge protection (10/700μs) for maximum operational reliability. Specifically designed for
outdoor installations, the injector enables seamless integration of wireless LAN access points, security
network cameras, and various IP-based terminals without requiring modifications to existing network
infrastructure.
Featuring industrial-grade construction with comprehensive weatherproof protection, this Gigabit PoE injector
maintains stable data transmission at 10/100/1000Mbps speeds while providing continuous power over standard
Ethernet cabling. The enhanced electrical protection system safeguards connected equipment against lightning
strikes and power surges, ensuring uninterrupted operation in challenging outdoor environments. Ideal for security
surveillance systems, industrial wireless networks, and smart city applications, this injector offers plug-and-play
installation with maintenance-free operation. Its durable design withstands extreme weather conditions, making it
perfectly suited for mission-critical deployments where network reliability and equipment protection are paramount
requirements for long-term system performance.
Key Features Bullets
Industrial IP67 Protection Grade
Complete waterproof and dustproof construction for harsh environment deployment
Enhanced 6KV Surge Protection
Advanced 10/700μs surge protection on both LAN and PoE ports
Dual Standard PoE Compatibility
Supports IEEE 802.3af (15.4W) and 802.3at (30W) powered devices
Extended Temperature Operation
Industrial-grade -40°C to 80°C operating range for extreme conditions
Flexible Installation Options
Wall-mount design for versatile deployment in various environments
Dedicated Data & Power Ports
Separate RJ45 input and PoE output ports for optimized connectivity
Technical Specifications & Indexes
|
Parameter |
Specifications |
|
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
|
Input & Output |
Input : 12~48VDC Output: IEEE802.3at 30W Power Pins: 4/5(+), 7/8(-) Data Speed: 10/100/1000Mbps |
|
Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
|
AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
|
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
|
Mechanical Characteristics |
Case: Metal |
|
Color: Gray |
|
|
Mounting: Pole-mounted |
|
|
IP Rated: IP67 |
|
|
Size (LxWxH): 260mm X 210mm X 80mm |
|
|
Weight: 1.5KG |
|
|
Safety Approvals |
CE, FCC, IP67 |
|
EMI |
FCC CFR47 Part 15, EN55024, EN55032 |
|
|
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
|
Immunity |
IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
Ordering information
|
Model |
Description |
|
LNK-WP301 |
Outdoor Waterproof Industrial 30W Gigabit PoE Injector with 6KV Surge Protection |
Application Scenarios
Deploying outdoor wireless access points in harsh weather conditions
Powering IP surveillance cameras with lightning surge protection
Supporting industrial IoT devices in extreme temperature environments
Enabling network connectivity for outdoor digital signage systems
Providing reliable PoE for transportation infrastructure monitoring
