제품 세부 정보
원래 장소: 중국
브랜드 이름: E-Link
인증: RoHS,CE
모델 번호: LNK-2000 시리즈
지불 및 배송 조건
최소 주문 수량: 1 개 PC
가격: 협상 가능
포장 세부 사항: 상자 포장
배달 시간: 3-12 근무일
지불 조건: T/T, Western Union, Moneygram, PayPal
공급 능력: 1000 PCS/월
입력 채널: |
1-8 |
반사 손실: |
> 15dB |
평형: |
0-250m |
커넥터: |
75Ω BNC |
출력 채널: |
1-8 |
신호 수준: |
800MV 공칭 |
입력 채널: |
1-8 |
반사 손실: |
> 15dB |
평형: |
0-250m |
커넥터: |
75Ω BNC |
출력 채널: |
1-8 |
신호 수준: |
800MV 공칭 |

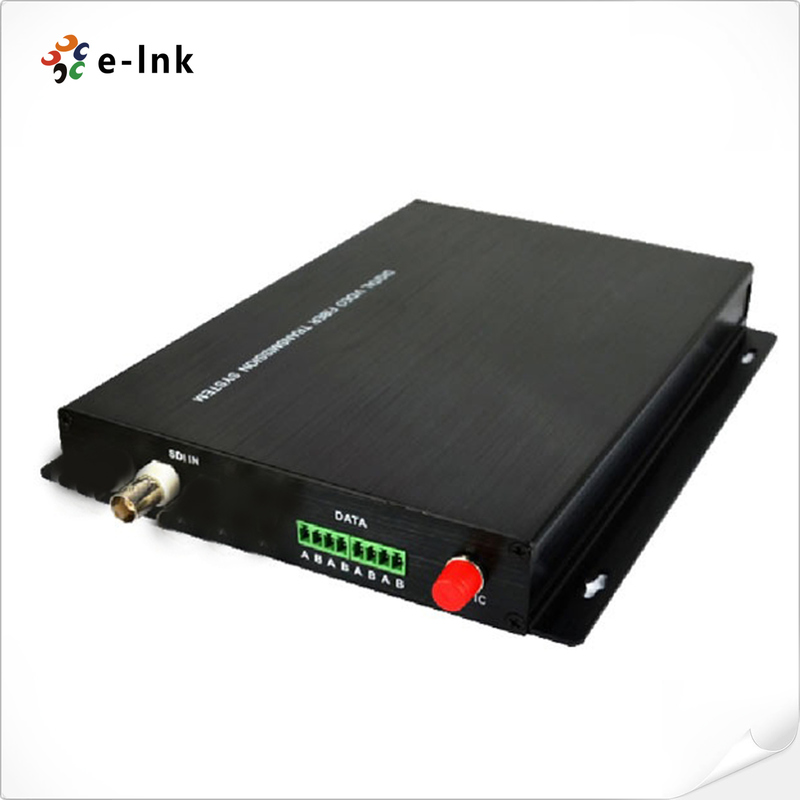

Product: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver
Advantages
· 1-8 ch unidirectional SD-SDI/ASI,TS stream with embedded audio over one fiber
· SMPTE 259, SMPTE 297, SMPTE310, SMPTE305
DVB-ASI (270Mb/s) standard
· Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
· 150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
· Optional network management system
· LED status indicators monitor the critical parameters
· Support hot swap
· Support stand-alone, 1U rack mount and 4U rack mount
Overview
The SD-SDI/ASI provides customer with the most cost-effective solution for transmission of 1-8 channel unidirectional SDI/ASI digital video signal, with 1+1 remote input redundancy and 1 local input redundancy optional. It is an easy installation and adjustment free device while providing high quality, real-time video. It is widely used in the field of CCTV, video surveillance, and etc.
Technical Indexes
|
Serial TV BNC Input |
|
|
TV signal standard |
SMPTE 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate |
|
Input channel |
1-8 |
|
Reflection loss |
>15DB |
|
Equilibrium |
0-250m |
|
Connector |
75Ω BNC |
|
Serial TV BNC Output (EO/OE) |
|
|
Output channels |
1-8 |
|
Signal level |
800mV nominal |
|
Rise/fall time |
200Ps nominal |
|
Overshoot |
<10% amplitude |
|
Reflection loss |
> 15dB |
|
Jitter |
< 0.3UI |
|
Connector |
75Ω BNC |
|
Optic Output |
|
|
Channel |
1 |
|
Type |
Single-mode/fiber (multimode optional) |
|
Wavelength |
CWDM wavelenth |
|
Reflection loss |
> 15dB |
|
Jitter |
< 0.3UI |
|
Connector |
FC/PC(ST/PC optional) |
|
Power and environmental indicator |
|
|
Operating temperature |
-45℃～＋50℃ |
|
Pressure |
1A@12VDC |
|
Power |
12W |
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
>100000 hours |
|
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
Order Information
|
Model |
Description |
|
LNK-2010-T |
1-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2010-R |
1-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2020-T |
2-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2020-R |
2-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2040-T |
4-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2040-R |
4-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2080-T |
8-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2080-R |
8-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
