제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, ROHS, FCC
모델 번호: LNK-INS301-12V
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: US$39-US$42
포장 세부 사항: PoE 전원 분배기 표준 상자 포장
배달 시간: 근무일 1-3 일
지불 조건: T/T, Western Union, Moneygram, PayPal
공급 능력: 1000/월
전향 필터 속도:: |
1,488,000pps (1000mbps) |
케이블링:: |
1000Base-T : Cat5 또는 위쪽에 |
최대 거리:: |
CAT5 UTP 최대 100m |
포 표준 :: |
IEEE 802.3af/at 파워 오브 이더넷 |
전원 출력 :: |
20W 12VDC (터미널 블록) |
치수 (WXDXH) :: |
95 x 70 x 30 mm |
전향 필터 속도:: |
1,488,000pps (1000mbps) |
케이블링:: |
1000Base-T : Cat5 또는 위쪽에 |
최대 거리:: |
CAT5 UTP 최대 100m |
포 표준 :: |
IEEE 802.3af/at 파워 오브 이더넷 |
전원 출력 :: |
20W 12VDC (터미널 블록) |
치수 (WXDXH) :: |
95 x 70 x 30 mm |

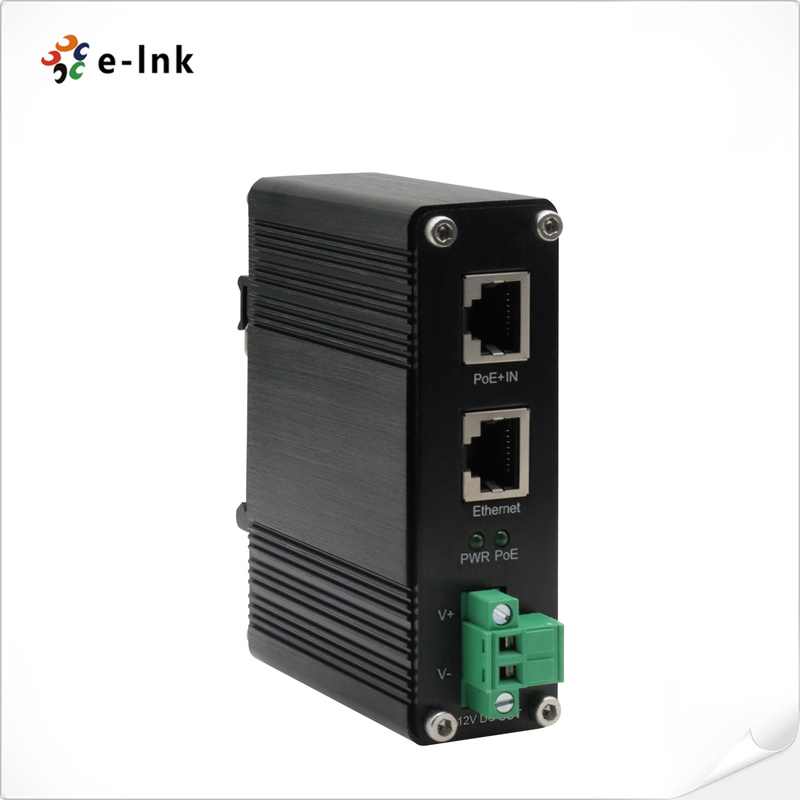

Model : LNK-INS301-12V
Product Description & Overview
The LNK-INS301-12V series represents a professional-grade industrial Power over Ethernet solution
engineered to deliver both high-speed data connectivity and reliable 12VDC power to non-PoE equipment.
This advanced PoE+ splitter maintains full compliance with IEEE 802.3at standards while supporting
Gigabit Ethernet transmission speeds up to 1000Mbps across standard 100-meter network distances.
The device efficiently converts PoE+ power into stable 12VDC output through its industrial-grade power
management system, eliminating the need for separate electrical infrastructure and significantly reducing
installation costs for edge computing applications.
Featuring robust industrial construction with wide temperature tolerance and electromagnetic interference
protection, this reliable splitter serves as an ideal powered device (PD) compatible with standard PoE+
switches and injectors including the LNK-INJ301 series. The innovative design incorporates plug-and-play
functionality requiring zero configuration, while the screw terminal block ensures secure power connections
for various 12V devices. Perfect for industrial automation systems, security surveillance networks, and access
control installations, this versatile solution provides exceptional deployment flexibility in challenging environments
where both network performance and power reliability are critical.
The integrated circuit protection system safeguards connected equipment from power surges and voltage
fluctuations, while maintaining optimal efficiency throughout extended operation periods. This cost-effective
splitting solution enables seamless integration of conventional 12V devices into modern PoE+ networks,
offering substantial value for system integrators managing distributed network architectures across
manufacturing facilities, transportation systems, and outdoor installations requiring dependable power
delivery and high-speed data transmission capabilities for industrial controllers, sensors, and communication
equipment.
Key Features Bullets
Professional PoE Power Separation
Efficiently splits power and data from single PoE input source
Dedicated Port Configuration
One RJ-45 PoE input + one RJ-45 data output + 12VDC terminal block
Industrial Environmental Protection
IP40 metal housing with -40°C to 80°C operating range
Advanced Safety Features
Integrated short-circuit protection for power output
High-Speed Network Performance
10/100/1000Base-T compatibility with 100-meter transmission
Universal PoE Standard Support
IEEE 802.3af/at compliant for broad compatibility
Flexible Mounting Options
DIN-rail and wall-mount installation capability
Comprehensive Status Monitoring
Multiple LED indicators for PoE diagnostics
Reliable Industrial Design
Fanless metal construction for harsh environments
Technical Specifications & Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at Power over Ethernet |
|
Number of devices that can be powered: |
1 (DC12V) (Vary on device’s power requirement; cannot be over 20 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
20W 12VDC (Terminal Block) |
|
Power Consumption: |
25W Max. |
|
LED Indicators: |
|
|
PWR: |
12VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering information
|
Model |
Description |
|
LNK-INS301-12V |
Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 12VDC, maximum output of 20W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Application Scenarios
Powering industrial automation controllers and PLC systems
Supporting outdoor security cameras and access control devices
Enabling connectivity for industrial wireless access points
Providing PoE for transportation infrastructure monitoring systems
Supporting network equipment in harsh industrial environments
