제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, ROHS, FCC
모델 번호: LNK-ins901-24V
지불 및 배송 조건
최소 주문 수량: 1pcs
가격: US$44-US$47
포장 세부 사항: PoE 전원 분배기 표준 상자 포장
배달 시간: 근무일 1-3 일
지불 조건: T/T, Western Union, Moneygram, PayPal
공급 능력: 1000/월
전향 필터 속도:: |
1,488,000pps (1000mbps) |
최대 거리:: |
CAT5 UTP 최대 100m |
전력 소비 :: |
45W 맥스. |
pwr: |
24VDC 전원 출력 |
장착 옵션 :: |
Din-Rail / Wall-Mount |
치수 (WXDXH) :: |
95 x 70 x 30 mm |
전향 필터 속도:: |
1,488,000pps (1000mbps) |
최대 거리:: |
CAT5 UTP 최대 100m |
전력 소비 :: |
45W 맥스. |
pwr: |
24VDC 전원 출력 |
장착 옵션 :: |
Din-Rail / Wall-Mount |
치수 (WXDXH) :: |
95 x 70 x 30 mm |

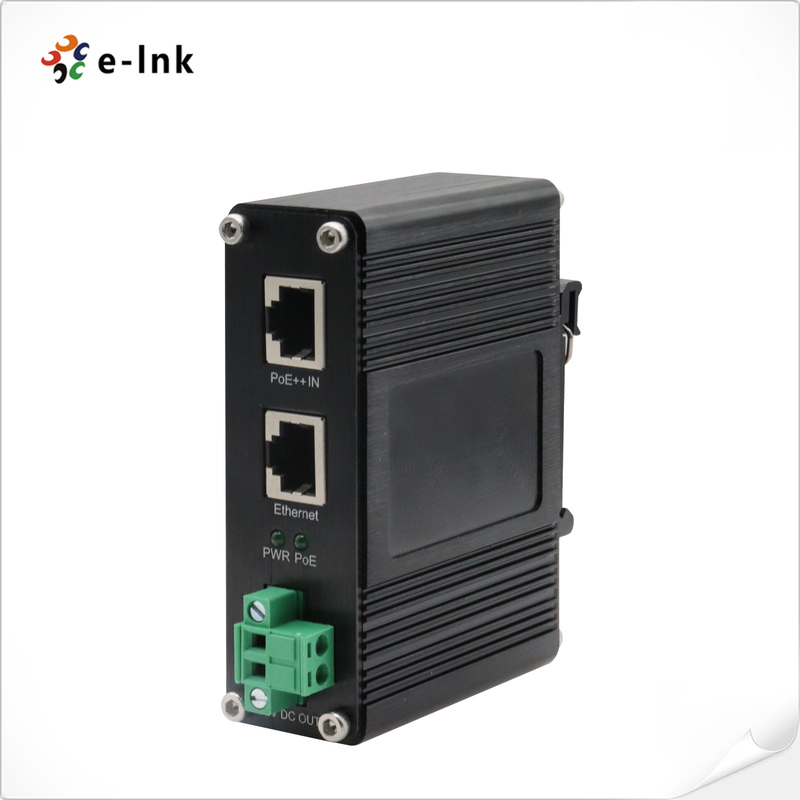

Model : LNK-INS901-24V
Product Description & Overview
The LNK-INS901-24V series represents a cutting-edge industrial Power over Ethernet solution engineered
to deliver both high-speed data connectivity and reliable 24VDC power conversion for industrial-grade non-
PoE equipment. This professional-grade PoE++ splitter maintains full compliance with IEEE 802.3bt standards
while supporting complete Gigabit Ethernet performance across standard 100-meter network distances. The
advanced power management system efficiently converts high-power PoE++ input into precisely regulated 24
VDC output through industrial-grade conversion technology, eliminating the need for separate electrical wiring
while significantly reducing installation costs for power-intensive industrial applications.
Featuring rugged industrial construction with enhanced thermal management and electromagnetic interference
protection, this high-performance splitter serves as an ideal powered device (PD) compatible with PoE++
switches and high-power injectors including the LNK-INJ-48-95W series. The innovative plug-and-play design
requires zero configuration, while the industrial screw terminal block ensures secure power connections for
various 24V industrial devices. Perfect for industrial automation systems, motor control applications, and high-
power security networks, this versatile solution provides exceptional deployment flexibility in demanding environments
where both network performance and reliable high-voltage power delivery are critical.
The integrated multi-stage protection system safeguards connected equipment from power surges, voltage
fluctuations, and short-circuit incidents while maintaining optimal efficiency throughout extended operation
periods. This advanced splitting solution enables seamless integration of 24V industrial equipment into modern
PoE++ networks, offering substantial value for system integrators managing complex network architectures
across manufacturing facilities, industrial plants, and harsh environment installations requiring dependable
high-power delivery and high-speed data transmission capabilities for industrial controllers, motors, and
specialized equipment in challenging operational conditions.
Key Features Bullets
High-Power PoE++ Compatibility
Supports IEEE 802.3af/at/bt standards including 95W PoE++ input capability
Professional Power Separation Technology
Efficiently splits data and power from single PoE++ source
Industrial-Grade Environmental Protection
IP40-rated metal housing with -40°C to 80°C operating range
Advanced Circuit Safety System
Integrated short-circuit and overload protection mechanisms
Gigabit Network Performance
10/100/1000Base-T compatibility with 100-meter transmission distance
Dedicated Port Configuration
Single RJ-45 PoE input + data output + 24VDC terminal block
Flexible Installation Options
DIN-rail and wall-mount compatible for versatile deployment
Comprehensive Status Monitoring
Multi-function LED indicators for real-time diagnostics
Robust Industrial Construction
Fanless metal design for harsh environment operation
Technical Specifications & Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
|
Number of devices that can be powered: |
1 (24VDC) (Vary on device’s power requirement; cannot be over 40 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
40W 24VDC (Terminal Block) |
|
Power Consumption: |
45W Max. |
|
LED Indicators: |
|
|
PWR: |
24VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering information
|
Model |
Description |
|
LNK-INS901-24V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 40W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Application Scenarios
Powering industrial motor controllers and automation equipment
Supporting high-performance PTZ surveillance camera systems
Enabling connectivity for industrial wireless access points
Providing PoE++ for professional audio/video equipment
Supporting network devices in extreme temperature industrial environments
