제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, ROHS, FCC
모델 번호: LNK-E16G4-LCD 시리즈
지불 및 배송 조건
최소 주문 수량: 1개
가격: $249-$269
포장 세부 사항: HDMI 광섬유 액세서리 표준 상자 포장
배달 시간: 근무일 1-3 일
지불 조건: T/T, Western Union, Moneygram, PayPal
공급 능력: 1000/월
전송하는 전력: |
-12dBm(최소) ~-9dBm(최대) |
수신기 감도: |
-28dBm(최소) |
섬유 종류: |
8/125um, 9/125um |
파장: |
1310nm |
링크 예산: |
18dBm |
커넥터: |
RJ45, 자동 MDIX 지원 |
전송하는 전력: |
-12dBm(최소) ~-9dBm(최대) |
수신기 감도: |
-28dBm(최소) |
섬유 종류: |
8/125um, 9/125um |
파장: |
1310nm |
링크 예산: |
18dBm |
커넥터: |
RJ45, 자동 MDIX 지원 |

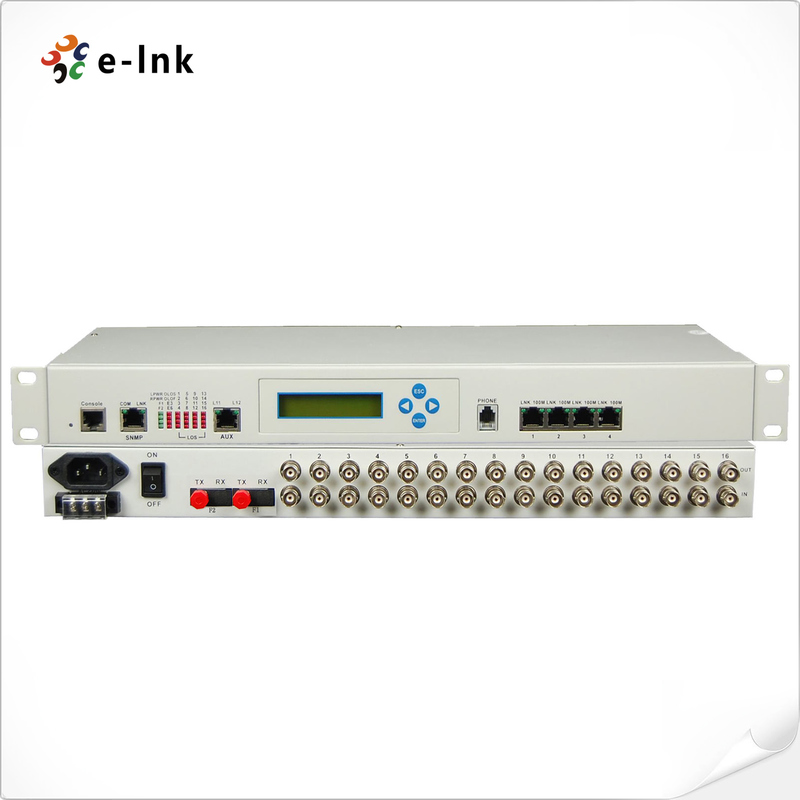

Model : LNK-E16G4-LCD Series
Product Description & Overview
This sophisticated PDH multiplexer represents a significant advancement in telecommunications
technology, integrating 16 E1 interfaces with 4 Gigabit Ethernet ports and comprehensive network
management capabilities. Engineered with specialized VLSI technology and FPGA architecture, this
professional-grade transmission platform delivers exceptional performance and future-proof scalability.
The integrated LCD display provides real-time system status monitoring, while the integrated SNMP
network management system enables centralized control and configuration across distributed network
deployments.
Featuring robust 1+1 fiber path protection with automatic redundancy switching, this reliable multiplexer
ensures uninterrupted service continuity for mission-critical applications. The platform incorporates four
Gigabit Ethernet channels with full switching capability and VLAN support, alongside two flexible expansion
interfaces for RS232/RS485/RS422 asynchronous data, voice channels, E&M audio signals, and additional
Ethernet connectivity with dedicated 2M bandwidth allocation.
Designed for carrier-class operation in next-generation networks, this high-capacity multiplexer is ideal for
5G mobile backhaul, enterprise network convergence, and telecommunications infrastructure requiring
reliable multi-service transmission. The compact design combines high-density integration with advanced
power management, achieving exceptional energy efficiency while maintaining a minimal footprint.
Enhanced error correction mechanisms and comprehensive alarm monitoring guarantee reliable operation
in demanding environments, establishing this PDH multiplexer as the optimal choice for modern network
deployments requiring robust E1 and Gigabit Ethernet convergence over protected fiber optic infrastructure
with advanced management capabilities.
Key Features Bullets
High-Capacity E1 Transmission
16-channel E1 transparent transmission with HDB3 coding
Advanced Network Management
Integrated SNMP agent with 16×2 LCD display
Carrier-Grade Fiber Protection
Dual optical interface with 1+1 APS protection and ALS function
Gigabit Ethernet Switching
4-port 10/100/1000M switch with VLAN and logical isolation
Extended Optical Transmission
1.25Gbps optical rate with up to 100km transmission range
Comprehensive Interface Options
Console management interface and optional hotline channel
Intelligent Monitoring System
Complete alarm function with remote status monitoring
Flexible Loopback Testing
Remote E1 loopback for convenient maintenance
Redundant Power Supply
Dual AC/DC power input for continuous operation
Technical Specifications & Indexes
|
Parameter |
Specification |
|
Multi-mode Fiber |
|
|
Fiber Type |
50/125um, 62.5/125um |
|
Maximum transmission distance |
5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm |
|
Transmitting power |
-12dBm (Min) ~-9dBm (Max) |
|
Receiver sensitivity |
-28dBm (Min) |
|
Link budget |
16dBm |
|
Single-mode Fiber |
|
|
Fiber Type |
8/125um, 9/125um |
|
Maximum transmission distance |
40Km |
|
Transmission distance |
40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km) |
|
Wave Length |
1310nm |
|
Transmitting power |
-9dBm (Min) ~-8dBm (Max) |
|
Receiver sensitivity |
-27dBm (Min) |
|
Link budget |
18dBm |
|
Fiber Interface |
|
|
Connect |
FC (Default), SC/SFP Optional |
|
Management Function |
|
|
Protocols |
Telnet and SNMP |
|
Standard SNMP protocol |
It offers MIB files, convenient to be merged to the third party’s SNMP |
|
E1 Interface |
|
|
Interface Standard |
comply with protocol G.703 |
|
Interface Rate |
n*64Kbps±50ppm |
|
Interface Code |
HDB3 |
|
E1 Impedance: |
75Ω (unbalance), 120Ω (balance) |
|
Jitter tolerance |
In accord with protocol G.742 and G.823 |
|
Allowed Attenuation |
0~6dBm |
|
Gigabit Ethernet Interface (10/100/1000M) |
|
|
Interface rate |
10/100/1000 Mbps, half/full duplex auto-negotiation |
|
Interface Standard |
Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
|
MAC Address Capability |
4096 |
|
Connector |
RJ45, support Auto-MDIX |
|
Power |
|
|
Power supply |
AC180V ~ 260V；DC –48V；DC +24V |
|
Power consumption |
≤10W |
|
Dimension |
|
|
Product size |
19 inch 1U 485X138X45mm(WXDXH) |
|
Simple packaging |
522X198X82mm(WXDXH) |
|
Piece weight |
3KG |
|
Working environment |
|
|
Working temperature |
-10°C ~ 50°C |
|
Working Humidity |
5%~95 % (no condensation) |
|
Storage temperature |
-40°C ~ 80°C |
|
Storage Humidity |
5%~95 % (no condensation) |
Application Scenarios
Supporting 5G mobile backhaul network expansion projects
Enabling enterprise multi-service network convergence systems
Facilitating financial data center interconnection solutions
Providing smart city communication infrastructure deployment
Supporting industrial automation control system networks
