제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, FCC, RoHS
모델 번호: LNK-OEO-SS
지불 및 배송 조건
최소 주문 수량: 1개
가격: $470-500
포장 세부 사항: 표준 수출 패키지
배달 시간: 5-12 일
지불 조건: T/T, L/C, 페이팔, 알리바바
공급 능력: 1000pcs/입
작동 온도:: |
0 ~ 50 ℃ |
온도 유지: |
-10 ~ 70ºC |
전송 속도: |
10Gb/s(9.95Gb/s~11.35Gb/s) |
프로토콜: |
IEEE802.3ae(10Gbase-SR/LR/ER/ZR/LRM) |
최대 패킷 전달 속도: |
14,880,950/s |
전력 요구 사항: |
DC5V 3A |
소비: |
≤6w |
치수(폭x깊이x높이): |
173mm x 106mm x 33mm |
작동 온도:: |
0 ~ 50 ℃ |
온도 유지: |
-10 ~ 70ºC |
전송 속도: |
10Gb/s(9.95Gb/s~11.35Gb/s) |
프로토콜: |
IEEE802.3ae(10Gbase-SR/LR/ER/ZR/LRM) |
최대 패킷 전달 속도: |
14,880,950/s |
전력 요구 사항: |
DC5V 3A |
소비: |
≤6w |
치수(폭x깊이x높이): |
173mm x 106mm x 33mm |
► 3R Repeater,
► Support Jumbo Frame
► Transparent Transport and very low delay
► Support ITUT prescribed DWDM/CWDM wavelength
► Support DMI function for SFP+/XFP fiber module
► Support Loopback test function
► Support Web management
► Full State Led display
► Easy installation

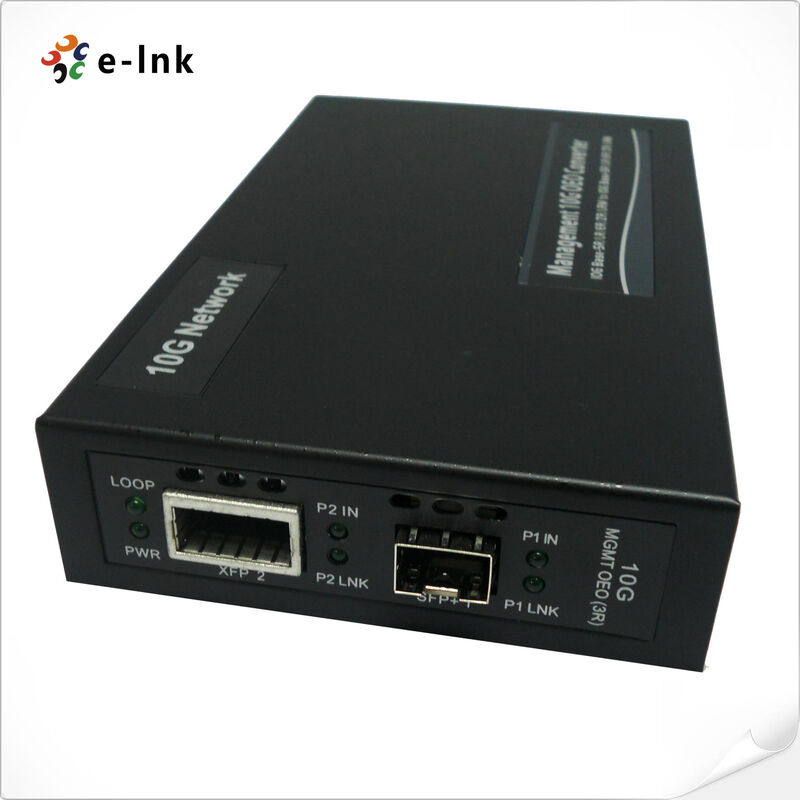

E-link Standalone 10G OEO Converter (3R Repeater) with SFP+ to SFP+ Slot, XFP to XFP Slot, SFP+ to XFP Slot optional , which uses optical -electricity – optical conversion principle to realize optical signal regeneration , enabling of the optical signal amplification and regeneration , re-timing, and wavelength conversion , with coarse / dense wavelength division multiplexing together to realized WDM transmission . It is now possible to quickly improve communication capacity, expand the bandwidth on present network, while using low-cost, high cost-effective solutions to manage and run the system, easy operation.
|
Transmission Speed |
10Gb/s (9.95Gb/s-11.35Gb/s) |
|
Protocols |
IEEE802.3ae (10Gbase-SR/LR/ER/ZR/LRM) |
|
Access Type |
10G LAN/ 10G WAN |
|
Interface Type |
A Type: SFP+ To SFP+ B Type: SFP+ To XFP C Type: XFP To XFP |
|
Transmission Distance |
SFP+ module: Up to 80Km XFP module: Up to 80Km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|
Network management information: |
SFP+ or XFP fiber module detection SFP+ or XFP fiber module DMI function (Temperature, Voltage, Optical power) Link status detector Enable/Disabled Loopback test function Rate select (10Gbase-Lan or Wan) |
|
power requirement |
Standalone: DC5V 3A Power consumption: ≤6W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% (non-condensing) |
|
Dimension (WxDxH) |
Standalone: 173mm x 106mm x 33mm |
