제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO9001, CE, FCC, RoHS
모델 번호: LNK-OEO-FG
지불 및 배송 조건
최소 주문 수량: 1개
가격: $170-200
포장 세부 사항: 표준 수출 패키지
배달 시간: 5-12 일
지불 조건: T/T, L/C, 페이팔, 알리바바
공급 능력: 1000pcs/입
작동 온도:: |
0 ~ 50 ℃ |
온도 유지: |
-10 ~ 70ºC |
장비 기능: |
3R 중계기 |
전력 요구 사항: |
AC 220V 또는 -48V |
힘: |
≤ 3W |
크기: |
156mm(W)×128mm(D)×32mm(H) |
작동 온도:: |
0 ~ 50 ℃ |
온도 유지: |
-10 ~ 70ºC |
장비 기능: |
3R 중계기 |
전력 요구 사항: |
AC 220V 또는 -48V |
힘: |
≤ 3W |
크기: |
156mm(W)×128mm(D)×32mm(H) |
► Support 2U Rack(16 Slots )and independent use
► support network management(Web SNMP, Console),
► Support in-band management
► support ITUT prescribed DWDM/CWDM wavelength
► transmission rate:125Mbps~4.25Gbps
► 3R function.
► Support Jumbo Frame
► Transparent Transport and very low delay
► support DMI function for SFP fiber module
► support Loopback test function
► Support PRBS Generator and checker
► support hot plugging
► Full State Led display
► Easy installation

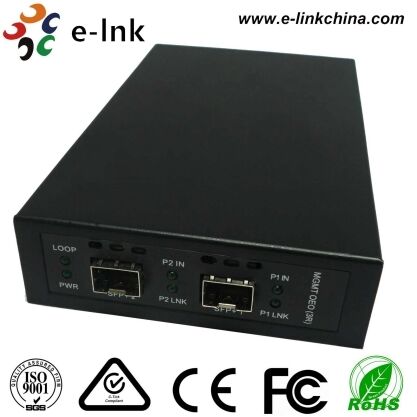

E-link Standalone 125M~4.25G OEO Converter (3R Repeater) with SFP Slot to SFP Slot, , which uses optical -electricity – optical conversion principle to realize optical signal regeneration , enabling of the optical signal amplification and regeneration, re-timing and wavelength conversion , with coarse / dense wavelength division multiplexing together to realized WDM transmission . It is now possible to quickly improve communication capacity , expand the bandwidth on present network , while using low-cost, high cost-effective solutions to manage and run the system , easy operation.
|
Performance Data |
Technical Indexes |
|
|
Equipment function |
3R Repeater |
|
|
Access Type / Transmission Speed |
Fast Ethernet |
125Mbps |
|
STS-3/STM-1 |
155.52Mbps |
|
|
ESCON/SBCON |
200Mbps |
|
|
STS-12/STM-4 |
622.08Mbps |
|
|
1×Fiber Channel |
1.0625Gbps |
|
|
Gigabit Ethernet |
1.25Gbps |
|
|
2×Fiber Channel |
2.125Gbps |
|
|
STS-48/STM-16 |
2.48832Gbps |
|
|
2.5 InfiniBand or PCI Express |
2.5Gbps |
|
|
4×Fiber Channel |
4.25Gbps |
|
|
Interface Type |
SFP to/from SFP |
|
|
Transmission Distance |
Up to SFP module ( Max 80Km ) |
|
|
Local SFP |
Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters |
|
|
Remote SFP |
Support SFP/CWDM/DWDM,Specific optical parameters please refer different modules's parameters |
|
|
power requirement |
Rack-mountable : AC 85 ～ 220V OR DC -48V dual-supply,optional Standalone: AC 220V OR -48V Power consumption: ≤ 3W |
|
|
Work environment |
Operating Temp: 0 ～ 50 ℃ Storage Temp: -10 ～ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
|
|
Dimension |
Card : 115mm ( W )× 78mm ( D ) Standalone : 156mm ( W )× 128mm ( D )× 32mm ( H ) |
|
|
Model |
Description |
|
LNK-OEO-FG |
