제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ISO
모델 번호: LNK-ISE200
지불 및 배송 조건
최소 주문 수량: 1 단위
가격: US$199-US$219/PC
포장 세부 사항: 섬유 미디어 컨버터 표준 패키지
배달 시간: 5-10 근무일
지불 조건: T/T, Western Union, Moneygram, PayPal
공급 능력: 10000pcs/월
MTBF: |
> 100,000 시간 |
저장 온도: |
-40 ° C ~ +85 ° C |
작동하는 습도: |
5 % ~ 95 % (응축 없음) |
무게: |
750g |
치수: |
133mm × 120mm × 41mm |
작동 온도: |
-40 ° C ~ 80 ° C |
MTBF: |
> 100,000 시간 |
저장 온도: |
-40 ° C ~ +85 ° C |
작동하는 습도: |
5 % ~ 95 % (응축 없음) |
무게: |
750g |
치수: |
133mm × 120mm × 41mm |
작동 온도: |
-40 ° C ~ 80 ° C |
Industrial Serial to Fiber Media Converter 80km SMF RS232/422/485 DIN-Rail
Fiber Media Converter Overview
The LNK Series Industrial Serial to Ethernet Server System establishes a robust bridge between legacy serial equipment and modern IP-based networks. This advanced system features a distributed architecture comprising remote-end units and central office equipment for large-scale serial device connectivity.
Our industrial-grade remote units employ DIN-rail mounted design for space-efficient installation in control cabinets, seamlessly converting 2-channel RS232/RS422/RS485 serial communications into standardized IP data packets. These serial-over-IP packets are then transmitted through dual Fast Ethernet copper ports and an optional fiber optic interface, providing flexible connectivity options for various industrial network infrastructures.

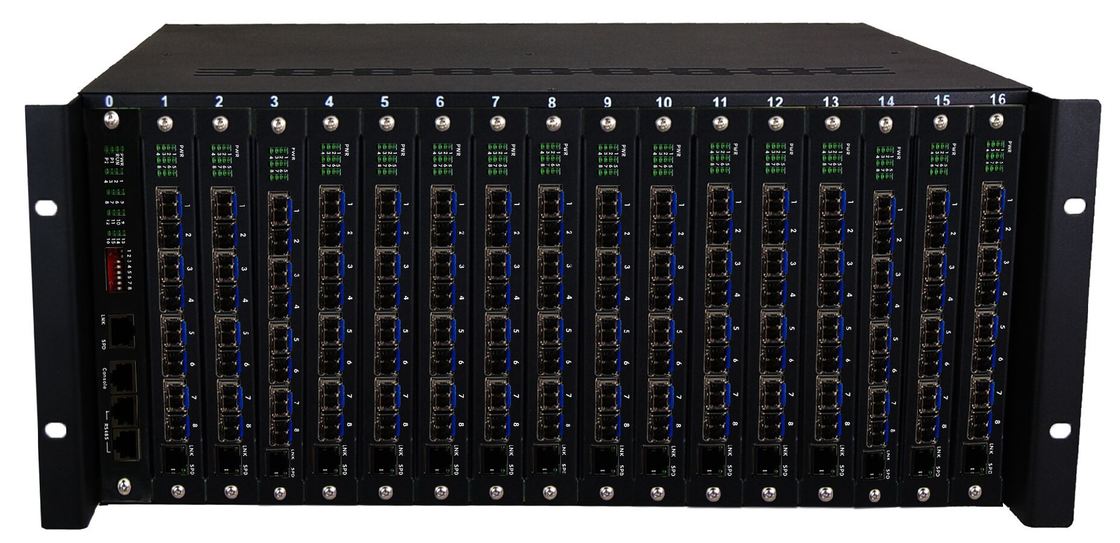

The central management station incorporates a 4U rack-mount chassis with high-density port configuration, featuring eight Fast Ethernet optical ports and one Gigabit Ethernet uplink port. This centralized hub efficiently aggregates serial data streams from multiple remote units, enabling seamless integration of up to 8 serial channels through optical fiber links into your core network via the Gigabit Ethernet backbone.
Specifically engineered for industrial automation and IIoT applications, this server system delivers reliable protocol conversion between serial devices and Ethernet networks, supporting MODBUS TCP/RTU gateway functionality while ensuring maximum data integrity through electrical isolation and surge protection mechanisms. The solution is ideal for SCADA systems, factory automation, and utility monitoring applications requiring secure remote access to distributed serial devices.
Fiber Media Converter Features
Advanced Network Management Capability
Supports comprehensive SNMP network management protocol for centralized monitoring and configuration, enabling administrators to remotely configure device parameters and monitor real-time status of both local and remote units through unified interface.
Robust Hardware Architecture
Implements Ethernet switch chip + FPGA integrated solution ensuring high-speed data processing and reliable packet forwarding performance while supporting remote OAM management frames for enhanced network maintenance capabilities.
Flexible Port Configuration
Provides dual Fast Ethernet copper ports combined with optical Ethernet connectivity options, allowing flexible network topology design and supporting bandwidth allocation control between local and remote endpoints.
Industrial Installation Design
Features DIN-rail mounted remote units with console management interface for simplified deployment in control cabinets and industrial environments, reducing installation time and maintenance costs.
High-Density Central Management
Central chassis offers 8-port Fast Ethernet optical aggregation with Gigabit Ethernet uplink capability, creating scalable infrastructure for multiple serial device connections across distributed networks.
Protocol Conversion Technology
Enables seamless serial-to-IP data encapsulation for two independent RS232/422/485 channels, supporting simultaneous operation of different serial protocols through individual serial port IP addressing.
Application Scenarios
Industrial Control Networks
Enables SCADA system integration for factory automation networks, providing remote PLC programming and HMI connectivity through serial-to-Ethernet protocol conversion across manufacturing facilities.
Utility Communication Infrastructure
Supports smart grid deployments by connecting power distribution units and energy monitoring equipment to central control systems via fiber-optic backbone networks with SNMP monitoring capability.
Transportation Management Systems
Facilitates railway signaling control and traffic management infrastructure by extending serial communication links between control centers and remote field devices through OAM-managed fiber channels.
Building Automation Networks
Integrates legacy HVAC controllers, access control systems and environmental sensors into modern IP-based building management systems using DIN-rail mounted serial servers.
Telecommunications Infrastructure
Provides console server functionality for remote base station management, enabling telecommunications operators to maintain cellular network equipment through out-of-band management channels.
Water Treatment Facilities
Connects distributed sensor networks and pump control systems across water distribution networks, allowing real-time monitoring of flow meters and chemical dosing equipment via MODBUS TCP/RTU gateway functionality.
Specifications
Order Information
| Item | Description |
| Remote End | |
| LNK-ISE200 | Industrial 2xRS232/422/485 to Ethernet Server: 2xRS232/422/485 port + 2x10/100M Ethernet port + 1x100M SFP port, excl. SFP module, standalone, Support DIN-Rail mounting and Wall mounting installation, 12~36VDC power input, no power supply adapter, Operating Temperature -40°C ~ 80°C |
| Local End | |
| LNK-F8G1 | Card-type 8*100Base-FX+1GE Serial Server: 2x100M SFP port + 1x10/100/1000M Ethernet port, SFP Optical port, not including SFP Module, it can be inserted to the LNK-C4U Chassis |
| LNK-C4U | 4U Chassis for Card-type 8*100Base-FX+1GE Serial Server, support SNMP Management, Dual Power Supply, 16 slot, can insert 16pcs Card-type 8*100Base-FX+1GE Serial Server |
Application Display Diagram
