제품 세부 정보
원래 장소: 중국
브랜드 이름: E-link
인증: ROHS,FCC,CE
모델 번호: LNK-DTS050
지불 및 배송 조건
최소 주문 수량: 1 PC
가격: 협상 가능
포장 세부 사항: 익스텐더 표준 내보내기 패키지
배달 시간: 3-12 근무일
지불 조건: L/C,T/T,Western Union,MoneyGram, 페이팔
공급 능력: 1000 PC / 달
키워드: |
비디오 익스텐더 |
작동 온도: |
-10 ° C ~ 60 ° C / 14 ° F ~ 140 ° F |
차원 (W x D x H): |
98 x 65 x 28mm / 3.85 x 2.55 x 1.1 인치 |
전원 공급: |
DC12V/1A |
전력 소비: |
2.5W (TX 및 RX) |
키워드: |
비디오 익스텐더 |
작동 온도: |
-10 ° C ~ 60 ° C / 14 ° F ~ 140 ° F |
차원 (W x D x H): |
98 x 65 x 28mm / 3.85 x 2.55 x 1.1 인치 |
전원 공급: |
DC12V/1A |
전력 소비: |
2.5W (TX 및 RX) |

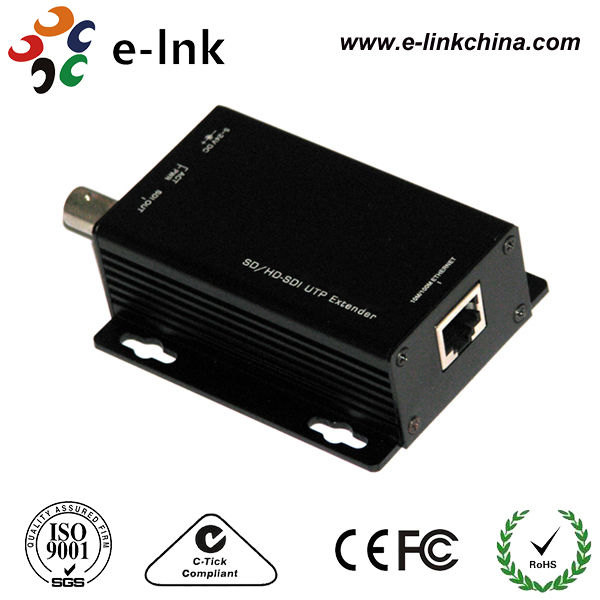

HD-SDI Video Extender over CAT5 / 6 Kit
HD-SDI Video Extender over CAT5 / 6 Kit Advantages
► SDI Standard: HD-SDI, SD-SDI
► Up to 50m / 160ft via CAT5e cable
► Up to 60m / 200ft via CAT6 cable
► Supports SDI-SMPTE 259M-C (270Mbps);
► HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
► LED diagnostics: sync, SDI auto-detection
HD-SDI Video Extender over CAT5 / 6 Kit Overview
LNK-DTS050 allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.
HD-SDI Video Extender over CAT5 / 6 Kit Technical Indexes
|
Model |
LNK-DTS050 |
|
|
Type |
Transmitter |
Receiver |
|
Standard Supported |
SMPTE 259M (270Mb/s), SMPTE 292M |
|
|
Speed |
270Mb/s, 1.485Gb/s (automatic selection) |
|
|
Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz |
|
|
|
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz |
|
|
|
720p @ 50Hz / 59.94Hz / 60Hz |
|
|
|
1080i @ 50Hz / 59.94Hz / 60Hz |
|
|
|
1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz |
|
|
|
@24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz |
|
|
Indicators |
Power on (on both end) |
|
|
|
Sync detection (on both end) |
|
|
|
Link between the two units working (on both end) |
|
|
Connectors |
1x BNC 75 ohm female |
|
|
|
1x RJ45 of CAT5e/6 unshielded or shielded twisted pair |
|
|
|
1x power plug, 2.1mm |
|
HD-SDI Video Extender over CAT5 / 6 Kit Ordering Information
|
Part No |
Description of product |
|
LNK-DTS050-T |
SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter; |
|
LNK-DTS050-R |
SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver |
